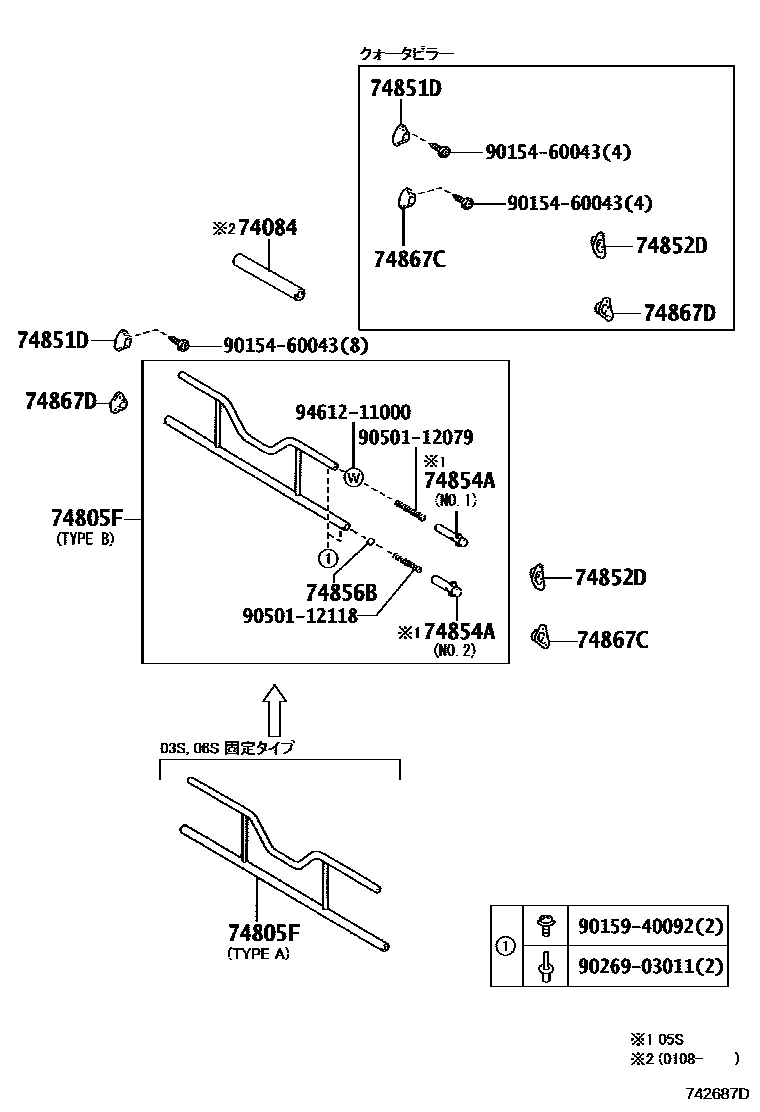

Toyota HIACE/REGIUSACE — SEPARATOR & SEPARATOR CURTAIN

0001 103S,05S,06S 0002 108S,09S 0003 1 0004 1

74084STAY SUB-ASSY, SEPARATOR BAR

main74081-26010-B0iLH162,17#,TRH102,112..(05S,06S)..(SGL,SGLE)200108-200408

BLUISH GRAY,TRIM1#

74805FBAR SUB-ASSY, SEPARATOR, A

main74805-95J18-03iLH102,113,RZH102,112..CD198908-199308

sub74805-95J18¥15,400

main74805-95J18-B0iLH16#,17#,182,188,RZH102,112..03S,06S199308-200501

sub74805-95J18¥15,400

main74805-95J19-03iLH113,119,123,RZH112,122..08S,09S198908-199308

sub74805-95J19¥15,500

main74805-95J19-B0iLH17#,182,RZH112,18#,TRH112,122..08S,09S199308-200501

sub74805-95J19¥15,500

main74805-95J19-E0iLH123..09S199308-199508

sub74805-95J19¥15,500

main74810-95J04-03iLH113,119,123,RZH112,122..08S,09S198908-199308

sub74810-95J04¥16,300

main74810-95J04-B0iLH17#,182,RZH112,18#,TRH112,122..08S,09S199308-200501

sub74810-95J04¥16,300

main74810-95J05-03iLH113,119..SRF..(03S,05S,06S);LH107,RZH102,112..(SMRF,SRF)..(06S,08S);LH100,102,109,110,115,125..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL)..(DSL,TD)198908-199308

sub74810-95J05¥15,500

main74810-95J05-B0iRZH102..05S,06S;RZH112..SRF..5D;RZH112..V1..SRF..4D..(05S,06S)..(DX,SGL);LH10#,11#,16#,17#..SRF..(05S,06S)..(DX,GL,SGL)199308-200408

sub74810-95J05¥15,500

main74810-95J06-03iLH113,123,129,RZH112,122..HRF..06S198908-199308

sub74810-95J06¥15,500

main74810-95J06-B0iLH172,RZH112,TRH112..HRF199308-200501

sub74810-95J06¥15,500

74851DBRACKET, SEPARATOR BAR, UPPER RH

main74851-95J01-03iLH113..09S..5F;LH113..03S,05S,06S;LH107,RZH102,112..(SMRF,SRF)..(06S,08S);LH100,102,109,110,115,119,123,125,129..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL)..(DSL,TD)198908-199308

sub74851-95J01¥640

main74851-95J01-B0iLH16#,17#,RZH102,112,TRH102,112..SRF..(05S,06S)..(DX,SGLE)199308-200408

sub74851-95J01¥640

main74851-95J01-B1iLH162,17#,RZH102,112..05S..SGL199808-200408

sub74851-95J01¥640

main74851-95J01-B1iLH162,17#,RZH102,112,TRH102,112..05S..SGL199907-200408

sub74851-95J01¥640

main74851-95J04-03iLH113..09S..5F;LH113..03S,05S,06S;LH107,RZH102,112..(SMRF,SRF)..(06S,08S);LH100,102,109,110,115,119,123,125,129..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL)..(DSL,TD)198908-199308

sub74851-95J04¥680

main74851-95J04-03iLH113..09S..5F;LH113..03S,05S,06S;LH107,RZH102,112..(SMRF,SRF)..(06S,08S);LH100,102,109,110,115,119,123,125,129..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL)..(DSL,TD)198908-199308

GRAY,TRIM1#

sub74851-95J04¥680

main74851-95J04-B0iLH103,11#,RZH102,112..CD;LH113,123,129,RZH112..HRF..06S199308-200501

sub74851-95J04¥680

main74851-95J04-B0iLH16#,17#,182,188,RZH102,112..03S,06S199808-199907

BLUISH GRAY,TRIM1#

sub74851-95J04¥680

74852DBRACKET, SEPARATOR BAR, UPPER LH

main74852-95J00-03iLH113..09S..5F;LH113..03S,05S,06S;LH107,RZH102,112..(SMRF,SRF)..(06S,08S);LH100,102,109,110,115,119,123,125,129..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL)..(DSL,TD)198908-199308

sub74852-95J00¥640

main74852-95J00-B0iLH16#,17#,RZH102,112,TRH102,112..SRF..(05S,06S)..(DX,SGLE)199308-200408

sub74852-95J00¥640

main74852-95J00-B1iLH162,17#,RZH102,112..05S..SGL199808-200408

sub74852-95J00¥640

main74852-95J00-B1iLH162,17#,RZH102,112,TRH102,112..05S..SGL199907-200408

sub74852-95J00¥640

main74852-95J04-03iLH102,113,RZH102,112..CD;LH113,123,129,RZH112,122..HRF..06S198908-199308

sub74852-95J04¥680

main74852-95J04-03iLH113..09S..5F;LH113..03S,05S,06S;LH107,RZH102,112..(SMRF,SRF)..(06S,08S);LH100,102,109,110,115,119,123,125,129..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL)..(DSL,TD)198908-199308

GRAY,TRIM1#

sub74852-95J04¥680

main74852-95J04-B0iLH16#,17#,182,188,RZH102,112..03S,06S199808-199907

BLUISH GRAY,TRIM1#

sub74852-95J04¥680

main74852-95J04-B0iLH10#,11#,168..SRF..(05S,06S);LH162,17#,RZH102,112..SRF..06S199308-200501

sub74852-95J04¥680

74854ASTOP, SEPARATOR

main74854-95J01-03iLH113,119,123,RZH112,122..08S,09S198908-199308

GRAY,TRIM1#

sub74854-95J01¥2,160

sub74854-26030¥2,170

main74854-95J01-B0iLH17#,182,RZH112,18#,TRH112,122..08S,09S199308-200501

BLUISH GRAY,TRIM1#

sub74854-95J01¥2,160

sub74854-26030¥2,170

main74854-95J06-B0iLH16#,17#,RZH102,112,TRH102,112..SRF..(05S,06S)..(DX,SGLE)198908-200501

main74854-95J07-B0iLH172,RZH112,TRH112..HRF198908-200501

74856BPLATE, SPRING SET

main74856-95A00iLH172,182,188,TRH112..HRF..(05S,06S)¥380198908-200501

74867CBRACKET, SEPARATOR BAR, LOWER

main74867-95J00-03iLH102,113,RZH102,112..CD198908-199308

sub74867-95J00¥640

main74867-95J00-03iLH102,113,RZH102,112..CD198908-199308

GRAY,TRIM1#

sub74867-95J00¥640

main74867-95J00-B0iLH182,188,RZH18#,TRH122..05S,06S199907-200501

sub74867-95J00¥640

main74867-95J00-B0iLH103,11#,RZH102,112..CD199308-200501

BLUISH GRAY,TRIM1#

sub74867-95J00¥640

main74867-95J00-B0iLH123,129,182,188..06S199308-199907

sub74867-95J00¥640

main74867-95J00-B0iLH16#,17#,182,188,RZH102,112..03S,05S,06S199808-199907

sub74867-95J00¥640

main74867-95J00-B1iLH162,17#,RZH102,112..05S..SGL199808-200408

LT.BLUISH GRAY,TRIM15

sub74867-95J00¥640

main74867-95J01-03iLH123,RZH122..09S198908-199308

sub74867-95J01¥750

main74867-95J01-03iLH123,RZH122..09S198908-199308

sub74867-95J01¥750

main74867-95J01-B0iLH17#,RZH112,TRH112..08S,09S199907-200408

BLUISH GRAY,TRIM1#

sub74867-95J01¥750

main74867-95J01-B0iLH123..09S..5F199308-200501

sub74867-95J01¥750

main74867-95J01-B0iLH11#,17#,RZH112..08S,09S199308-199907

sub74867-95J01¥750

main74867-95J02-03iLH123,RZH122..09S198908-199308

sub74867-95J02¥890

main74867-95J02-B0iLH123..09S199308-199808

sub74867-95J02¥890

main74867-95J02-B0iLH182,RZH18#,TRH122..09S199808-200501

sub74867-95J02¥890

main74879-95J01-B0iLH16#,17#,RZH102,112,TRH102,112..SRF..(05S,06S)..(DX,SGLE)199907-200408

sub74879-95J01¥640

main74879-95J01-B1iLH162,17#,RZH102,112,TRH102,112..05S..SGL199907-200408

sub74879-95J01¥640

74867DBRACKET, SEPARATOR BAR, LOWER

main74867-95J00-B0iLH16#,17#,RZH102,112,TRH102,112..SRF..(05S,06S)..(DX,SGLE)199907-200408

sub74867-95J00¥640

main74867-95J00-B1iLH162,17#,RZH102,112,TRH102,112..05S..SGL199907-200408

sub74867-95J00¥640

main74879-95J01-03iLH123,129,RZH122..06S198908-199308

sub74879-95J01¥640

main74879-95J01-03iLH102,113,RZH102,112..CD198908-199308

GRAY,TRIM1#

sub74879-95J01¥640

main74879-95J01-B0iLH182,188,RZH183,TRH122..06S;LH16#,17#,RZH102,112,182,TRH102,112..(03S,05S,06S)..(CD,DX,SGLE)199907-200501

sub74879-95J01¥640

main74879-95J01-B0iLH103,11#,RZH102,112..CD199308-200501

BLUISH GRAY,TRIM1#

sub74879-95J01¥640

main74879-95J01-B0iLH123,129,182,188..06S199308-199907

sub74879-95J01¥640

main74879-95J01-B0iLH16#,17#,182,188,RZH102,112..03S,05S,06S199308-199907

sub74879-95J01¥640

main74879-95J01-B1iLH162,17#,RZH102,112..05S..SGL199808-200408

LT.BLUISH GRAY,TRIM15

sub74879-95J01¥640

9015460043

main90154-60043¥60

9015940092

main90159-40092¥120

9026903011

main90269-03011¥70

9050112079

main90501-12079¥300

9050112118

main90501-12118¥230

9461211000

main94612-11000¥170

14 parts on this diagram · 4 diagrams in section
