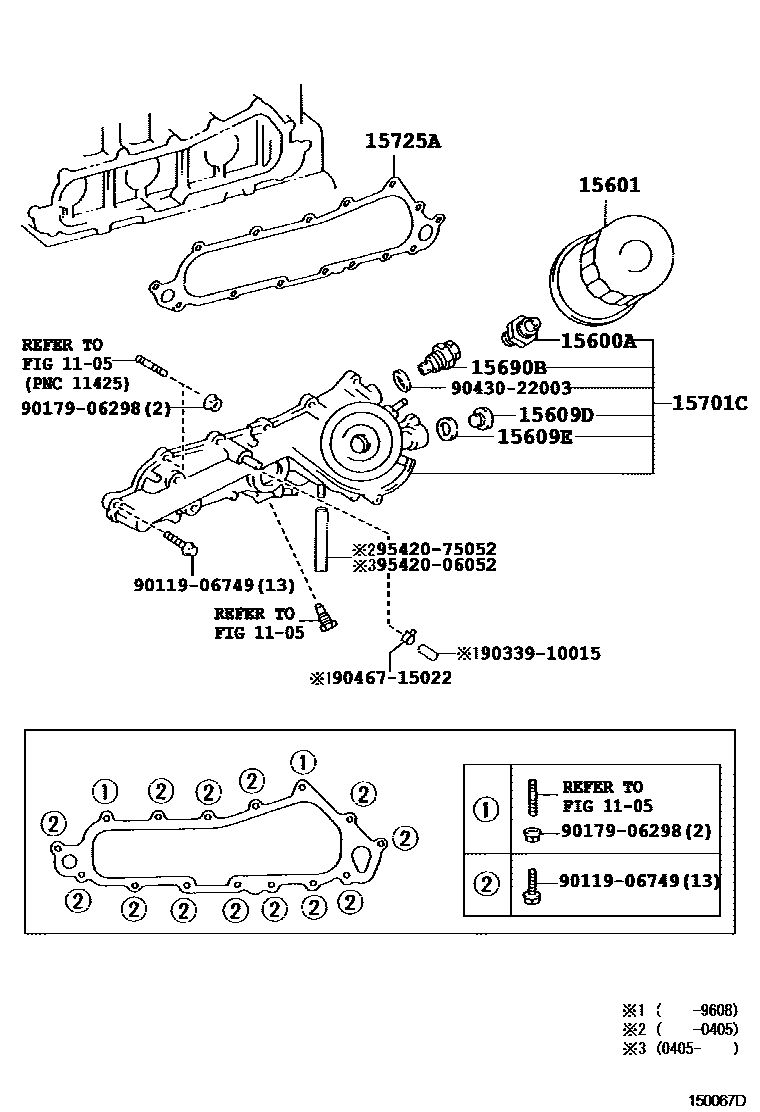

Toyota HIACE/REGIUSACE — OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54010i2L,3L..LH102,109,113,115,119,123,125,129¥460198908-198910

main15116-54020i2L,2LT#,3L..LH100,107,110,117,120,140¥7,800198908-199106

sub15116-54021¥2,060

main15116-54021i1KZTE..KZH10#,11#,12#,13#¥2,060199106-200408

main90404-19011i2L,3L..LH102,103,109,113,115,119,123,125,129¥320198910-199808

main90404-19015i1TRFE..TRH102,112,12#¥410200308

15601FILTER SUB-ASSY, OIL

main15600-25010i1RZ#,2RZE..RZH10#,11#,12#¥1,470198908-199408

sub90915-20003¥1,470

main15600-41010i2L,3L..LH102,103,109,113,115,119,123,125,129¥1,470198908-199808

sub90915-40002¥1,470

main90915-03006i2L,2LT#,3L..LH100,107,110,117,120,140¥3,150198908-199106

sub90915-30002¥3,150

main90915-20001i1RZE,2RZE..RZH10#,11#,12#¥1,470199408-199908

sub90915-20003¥1,470

main90915-20003i1RZE,2RZE..RZH10#,11#,12#,18#¥1,470199908-200308

sub90915-20005¥1,470

main90915-30002i2L#,3L,5L..LH100,107,110,117,120,140,16#,17#,18#¥3,150199106-200408

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54013i2L,3L..LH102,103,109,113,115,119,123,125,129¥25,500198908-199509

main15609-54014i3L..LH10#,11#,12#¥25,500199509-199808

main15609-54061i2LT#..LH100,120¥25,500198908-199308

main15609-54071i2L,3L..LH100,107,110,117,140¥25,500198908-199308

main15609-54072i5L..LH16#,17#,18#¥16,000199808-200408

main15609-75010i1RZE,2RZE..RZH10#,11#,12#,18#198908-200308

sub15609-75050¥10,400

sub90404-19015¥410

main15609-75050i1TRFE..TRH102,112,12#¥10,400200308

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-16023i1TRFE..TRH102,112,12#¥190200308-200501

main90341-20002i1KZTE..KZH10#,11#,120,13#¥180199308-200408

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KZTE..KZH10#,11#,12#,13#¥240199308-200408

main90430-16009i1TRFE..TRH102,112,12#¥80200308-200501

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KZTE..KZH10#,11#,12#,13#¥3,490199308-200408

sub15690-64011¥2,300

15701CCOVER SUB-ASSY, OIL COOLER

main15701-67020i1KZTE..KZH10#,11#,12#,13#¥22,600199308-199608

main15701-67030i1KZTE..KZH10#,11#,12#,13#¥33,400199608-199907

sub15701-67031¥22,900

sub95420-06052¥160

sub95421-06060¥160

main15701-67040i1KZTE..KZH10#,11#,120,13#¥23,000199907-200405

sub15701-67041¥22,900

sub95420-06052¥160

main15701-67041i1KZTE..KZH10#,11#,120,13#¥22,900200405-200408

15725AGASKET, OIL COOLER COVER

main15725-67010i1KZTE..KZH10#,11#,12#,13#¥680199308-200408

9011906749

main90119-06749¥90

9017906298

main90179-06298¥90

9033910015

main90339-10015¥140

9043022003

main90430-22003¥260

9046715022

main90467-15022¥170

9542006052

main95420-06052¥160

9542075052

main95420-75052¥200

16 parts on this diagram · 5 diagrams in section
