Toyota HIACE/REGIUSACE — MIRROR

0001 1�����- 0002 1�����- 0003 1�����-(�������-) 0004 1�����- 0005 1�����-(�������-) 0006 1��������-

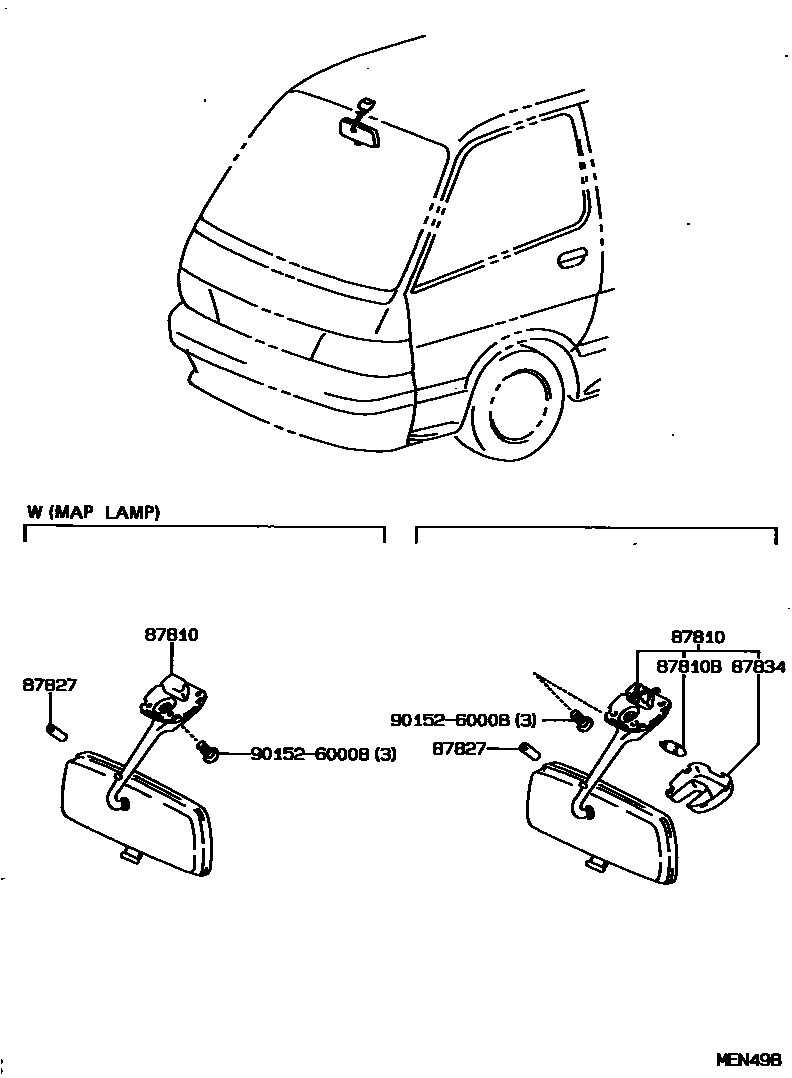

87810MIRROR ASSY, INNER REAR VIEW

main87810-95J09iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..CD,DX¥6,000199205-200501

main87810-95J09-01iLH123..4FC198908-199308

BLACK,TRIM1#

sub87810-95J09¥6,000

main87810-95J09-01iLH123..4FC199207-199308

BLACK,TRIM1#,3#

sub87810-95J09¥6,000

main87810-95J09-01iLH110,115,117,125,RZH110,124..DX198908-199308

BLACK,TRIM3#

sub87810-95J09¥6,000

main87810-95J10iLH113..5D..GL;LH113..09S..GL;KZH11#,LH123,129..06S,10S;LH113..V1..SRF..4D..(05S,06S);KZH10#,12#,LH10#,119,125,RZH100,102,112..CTM,GCGE,GCGN,GL,SGL¥10,000199308-199508

TRIM1#

main87810-95J10iLH10#,11#,125..GL,SGL;KZH11#,RZH102,112..(V1,WG)..4FC;KZH10#,12#,13#,RZH101..03S,09S,10S¥10,000199508-200501

main87810-95J10iRZH12#..DX¥10,000199907-200308

main87810-95J10iRZH112..V2..4D..DX;RZH112,18#..HRF..4D..DX¥10,000200012-200308

main87810-95J10-01iLH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,RZH10#,112..CTM,GL,SGL199005-199308

sub87810-95J10¥10,000

main87810-95J10-01iLH100,102,109,113,119,RZH10#,112..CTM,GL,SGL198908-199005

BLACK,TRIM1#

sub87810-95J10¥10,000

main87810-95J10-01iLH120,125..GCGE,GCGN,GL198908-199308

BLACK,TRIM3#

sub87810-95J10¥10,000

main87810-95J13iKZH10#,RZH101,TRH102,112..SCL,SCM,SCMM,SGL¥8,400199308-200408

main87810-95J13-01iLH100,107,RZH100,101..08S198908-199308

BALCK,TRIM1#,3#

sub87810-95J13¥8,400

main87810-95J13-01iLH100,107,RZH100,101..SCL198908-199308

BALCK,TRIM3#

sub87810-95J13¥8,400

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iKZH11#,LH10#,11#,12#,RZH102,11#,124,133..CD,DX¥150198908-199907

main99132-12100iLH162,17#,RZH102,112..SGL¥150199907-200501

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-10010iKZH10#,12#,13#,RZH101;LH10#,11#,125..GL,SGL;KZH11#,RZH102,112..(V1,WG)..4FC¥510198908-200501

main87828-22020iLH113..5D..GL;LH113..09S..GL;KZH11#,LH123,129..06S,10S;LH113..V1..SRF..4D..(05S,06S);KZH10#,12#,LH10#,119,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL¥280199209-200501

main87828-30010iKZH10#,12#,13#,RZH101;LH10#,11#,125..GL,SGL;KZH11#,RZH102,112..(V1,WG)..4FC¥220198908-200501

main87828-32010iLH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL¥310198908-199209

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81241-95J03iLH162,17#,RZH102,112..SGL¥820198908-200501

9015260008

main90152-60008¥120

5 parts on this diagram · 6 diagrams in section
