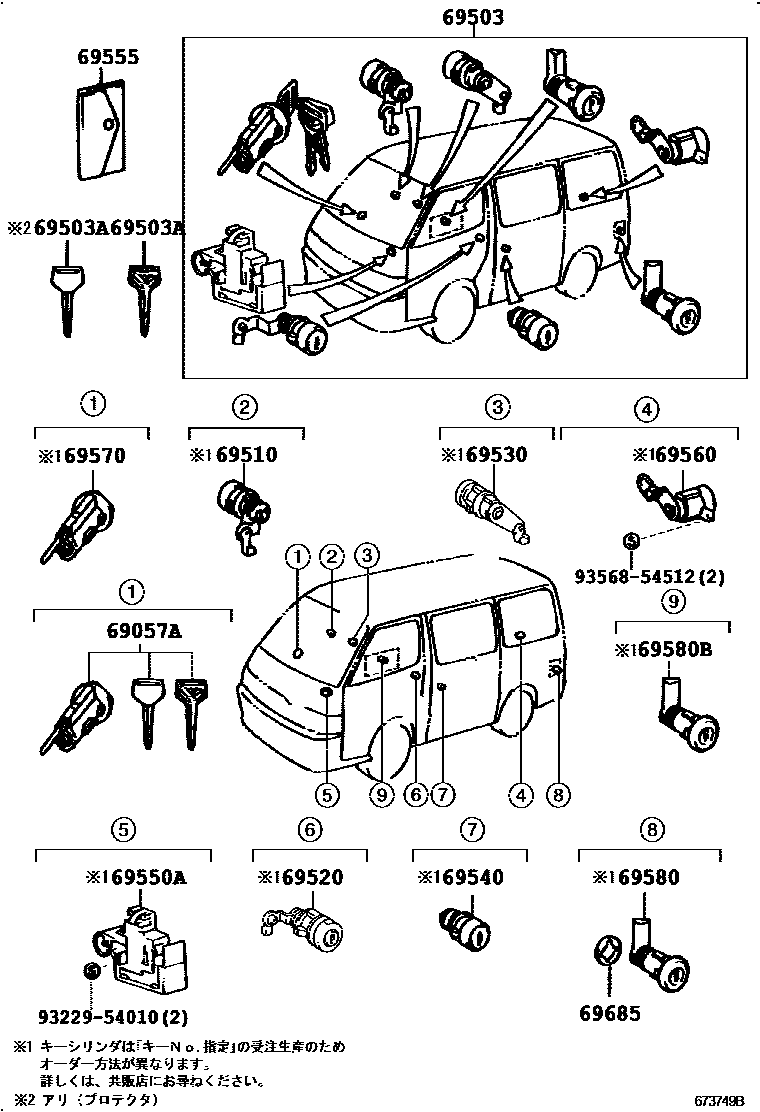

Toyota HIACE/REGIUSACE — LOCK CYLINDER SET

0001 1 0002 1��(����� ��� ���)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-26050iKZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133¥7,100199508-199808

sub69057-26080¥7,100

main69057-26080iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133¥7,100199808-200501

main69057-95J18iLH10#,11#,123,125,129,140,RZH10#,11#,12#¥7,100198908-199308

sub69057-95J20¥7,100

main69057-95J20iLH113..V1..SRF..06S..5F..DX¥7,100199101-199308

sub69057-95J21¥7,100

main69057-95J20iRZH12#..06S,15S¥7,100199101-199308

sub69057-95J21¥7,100

main69057-95J20iLH113..V2..CD;LH113..4D..SG..CD;LH113..V2..5D..DX;LH113..5D..(CD,GL);LH102,RZH102,112..4D..CD;LH102,109,119,RZH102,112..5D¥7,100199101-199205

sub69057-95J21¥7,100

main69057-95J20iLH113..V2..CD;LH113..4D..SG..CD;LH113..V2..5D..DX;LH113..5D..(CD,GL);LH102,109,119,RZH102,112..5D;LH102,120,RZH102,112..4D..(03S,10S)¥7,100199205-199508

sub69057-95J21¥7,100

69503CYLINDER SET, LOCK

main69503-26290iLH103,11#,RZH102,112..4D..CD¥21,200199508-199808

sub69503-26510¥21,300

main69503-26300iKZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..4D..(CTM,DX,GCGE,GCGN,GL,SCM,SCMM,SGL)¥18,400199508-199808

sub69503-26520¥18,500

main69503-26350iLH103,113,RZH102..5D..CD¥23,900199508-199808

sub69503-26550¥24,000

main69503-26360iLH10#,11#,RZH102,112..5D..06S¥21,200199508-199808

sub69503-26560¥21,300

main69503-26510iLH162,17#,RZH102,112,TRH102,112..CD¥21,300199808-200408

sub69503-26370¥21,300

main69503-26520iRZH112..V2..4D..DX;TRH102,112..4D..SG;RZH112,18#,TRH122..HRF..4D;KZH120,LH178,188..4D..(GCGE,GCGN,SGLE)..4WD;LH162,172,182,RZH102,112,TRH124..4D..(05S,15S)..(DX,GL,¥18,500199808-200501

main69503-26560iLH16#,17#,RZH102,112..5D¥21,300199808-200408

sub69503-26550¥24,000

main69503-95J76iKZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..4D..(05S,06S,08S,09S,10S,15S)¥19,800199308-199508

sub69503-95J80¥19,800

main69503-95J77iLH113..V1..SRF..4D..06S..5F..DX¥18,700199001-199508

sub69503-95J81¥18,700

main69503-95J79iLH102,103,109,113,119,RZH102,112..5D..06S¥22,500198908-199508

sub69503-95J74¥22,500

main69503-95J86iLH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..4D..(CTM,DX,GL,SGL,SW)¥19,400198908-199308

sub69503-95J76¥19,800

main69503-95J89iKZH10#,12#,RZH100,101..08S,10S¥25,200198908-199408

main69503-95N04iLH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX¥21,200199308-199508

sub69503-95N10¥22,500

main69503-95N04iLH102,113,RZH102,112..4D..CD¥21,200198908-199205

sub69503-95N10¥22,500

main69503-95N04iLH102,103,113,120,RZH102,112..4D..(03S,10S)..(CD,DX)¥21,200199205-199508

sub69503-95N10¥22,500

main69503-95N04iRZH12#..06S,15S¥21,200198911-199308

sub69503-95N10¥22,500

main69503-95N09iLH102,103,113,RZH102,112..5D..CD¥25,200198908-199508

sub69503-95N02¥25,200

mainC409995B00iLH120..GCGE,GCGN199205-199308

69503AKEY, BLANK

main90999-00163iLH10#,11#,123,125,129,140,RZH10#,11#,12#..4D..(05S,06S,07S,08S,09S,10S,15S)¥1,550198908-199508

sub90999-00174¥2,070

main90999-00164iRZH100,101;LH10#,11#,12#,140,RZH102,11#,12#..03S,05S,06S,08S,09S,10S,15S¥2,070198908-199508

sub90999-00175¥2,060

main90999-00165iKZH10#,12#,LH100,107,120,RZH100,101..GCGE,GCGN,SCL,SCM,SCMM¥1,550198908-199408

main90999-00185iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..03S,05S,06S,08S,09S,10S,15S¥1,790199508-200501

main90999-00186iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥1,430199508-200501

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-26020iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133¥9,000199508-200501

main69510-95J04iLH10#,11#,123,125,129,140,RZH10#,11#,12#¥8,800198908-199508

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-26020iKZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133¥9,000199508-200501

main69520-95J04iLH10#,11#,123,125,129,140,RZH10#,11#,12#¥8,800198908-199508

69530CYLINDER ASSY, SLIDE DOOR LOCK, RH

main69530-26030iLH10#,11#,RZH102,112..5D¥8,800199508-200408

main69530-95J04iLH102,103,109,113,119,RZH102,112..5D¥8,800198908-199508

69540CYLINDER ASSY, SLIDE DOOR LOCK, LH

main69540-26050iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133¥8,800199508-200501

main69540-95J04iLH10#,11#,123,125,129,140,RZH10#,11#,12#¥8,800198908-199508

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-20070iKZH10#,12#,LH100,107,120,RZH100,101..GCGE,GCGN,SCL,SCM,SCMM¥11,500198908-199408

69555COVER, KEY

main69555-17020iKZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#¥810199205-199508

main69555-95J00iLH10#,11#,12#,140,RZH10#,11#,12#¥820198908-199205

sub69555-17020¥810

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-26020iKZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133¥8,800199508-200501

main69560-95J04iLH10#,11#,123,125,129,140,RZH10#,11#,12#¥9,000198908-199508

main69560-95J05iLH113..V1..SRF..4D..06S..5F..DX¥9,000199001-199508

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-26030iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥12,000199508-200501

main69570-95J09iLH113..V1..SRF..06S..5F..DX¥12,000199101-199308

main69570-95J09iLH113..V2..CD;LH113..4D..SG..CD;LH113..V2..5D..DX;LH113..5D..(CD,GL);LH102,RZH102,112..4D..CD;LH102,109,119,RZH102,112..5D¥12,000199101-199205

main69570-95J09iLH113..V1..SRF..06S..5F..DX¥12,000199101-199308

main69570-95J09iLH113..V2..CD;LH113..4D..SG..CD;LH113..V2..5D..DX;LH113..5D..(CD,GL);LH102,109,119,RZH102,112..5D;LH102,120,RZH102,112..4D..(03S,10S)¥12,000199205-199508

main69570-95J10iLH10#,11#,123,125,129,140,RZH10#,11#,12#¥12,000198908-199308

sub69570-95J09¥12,000

69580CYLINDER ASSY, FUEL FILLER OPENING LID

main69580-26010iKZH11#,13#..4FC;LH103,11#,RZH102,112..CD¥9,000199508-200408

main69580-95J03iLH102,113,RZH102,11#..03S,10S¥8,800198908-199508

69580BCYLINDER ASSY, BATTERY COVER OPENING

main69580-26010iKZH11#,13#..4FC;LH103,11#,RZH102,112..4D..CD¥9,000199508-200108

main69580-95J03iLH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX¥8,800198911-199508

69685PAD, LOCK CYLINDER

main69513-32010iLH102,113,RZH102,11#..03S,10S¥120198908-200408

9322954010

main93229-54010¥110

9356854512

main93568-54512¥70

16 parts on this diagram · 2 diagrams in section
