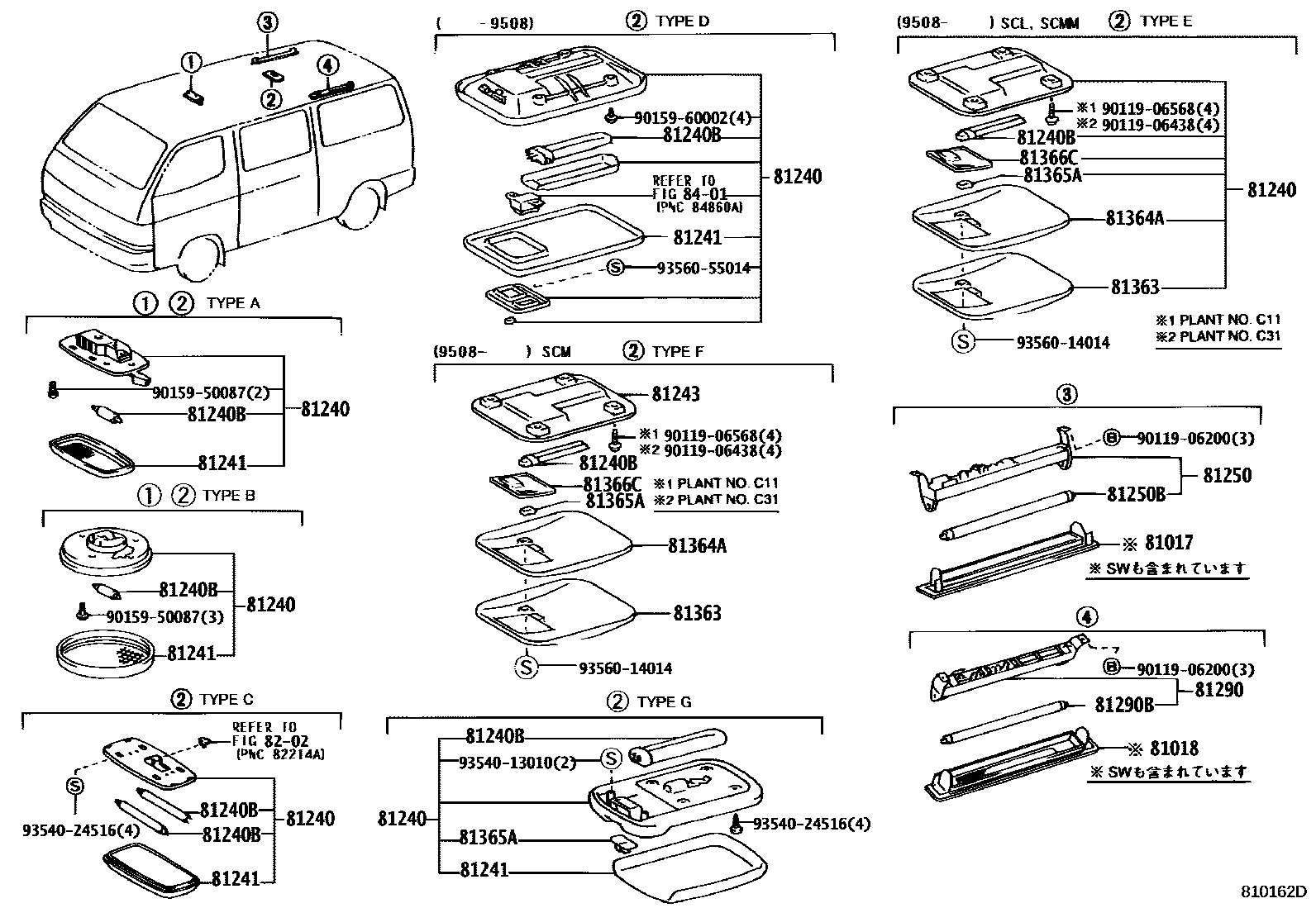

Toyota HIACE/REGIUSACE — INTERIOR LAMP

0001 1 0002 1 0003 1

81017LENS SUB-ASSY, REAR ROOM, RH

main81017-95J00-03iLH100,RZH100,101..SCMM198908-199308

LIGHT GRAY,TRIM1#

main81017-95J00-06iLH100,107,RZH100,101..MRF198908-199308

LIGHT SABLE,TRIM3#

81018LENS SUB-ASSY, REAR ROOM, LH

main81018-95J00-03iLH100,RZH100,101..SCMM198908-199308

LIGHT GRAY,TRIM1#

main81018-95J00-06iLH100,107,RZH100,101..MRF198908-199308

LIGHT SABLE,TRIM3#

81240LAMP ASSY, ROOM, NO.1

main81024-26010-B0iKZH10#,RZH100,101..SCMM199308-199508

sub81024-26010¥27,800

main81024-26010-E0iKZH10#,RZH100,101..MRF199308-199508

sub81024-26010¥27,800

main81024-26020-B0iKZH10#,RZH100,101..SCM199308-199508

main81024-26020-E0iKZH10#,RZH100,101..SCM199308-199508

main81240-12020-B2iKZH10#,RZH100,101..CTM199308-199608

TYPE A,LIGHT GRAY,TRIM1#

sub81240-12020¥3,590

main81240-26040-A0iLH102,113,119..SGL199205-199308

TYPE C,IVORY,TRIM1#

sub81240-26040¥16,800

main81240-26040-A0iLH102,113,119..SGL199205-199308

sub81240-26040¥16,800

main81240-26040-B0iKZH11#199308-199608

sub81240-26040¥16,800

main81240-26040-B0iLH119..SGL;KZH11#,LH113..(05S,10S)..4FC199508-199608

TYPE C,LIGHT GLAY,TRIM1#

sub81240-26040¥16,800

main81240-26040-B0iLH113..V1..SRF..4D..06S..5F..DX199308-199508

sub81240-26040¥16,800

main81240-26040-B0iLH103,11#..SGL199205-199608

sub81240-26040¥16,800

main81240-26040-B1iLH119..SGL;KZH11#,LH113..(05S,10S)..4FC199608-199808

TYPE C,LT.BLUISH GRAY,TRIM1#

sub81240-26040¥16,800

main81240-26040-B1iLH103..SGL199608-199808

sub81240-26040¥16,800

main81240-26040-E0iLH100,107,RZH100,101..SMRF..08S199205-199308

sub81240-26040¥16,800

main81240-26050-E0iKZH12#199308-199907

sub81240-26900¥38,600

main81240-26050-E1iKZH120..4WD199907-200408

sub81240-26900¥38,600

main81240-26050-E1iKZH120..2WD199907-200408

TYPE H,ORCHID,TRIM4#

sub81240-26900¥38,600

main81240-26100-B0iKZH10#,RZH101..SCMM199508-199608

TYPE E,LT.GRAY,TRIM1#

sub81240-26100¥25,200

main81240-26100-B1iKZH10#,RZH101..SCMM199608-199907

TYPE E,LT.BLUISH GRAY,TRIM1#

sub81240-26100¥25,200

main81240-26100-B2iKZH10#,RZH101..SCMM199907-200408

TYPE E,LT.BLUISH GRAY,TRIM1#

sub81240-26100¥25,200

main81240-26100-E0iKZH10#,RZH101..MRF199508-199907

TYPE E,LT.ANTELOPE,TRIM4#

sub81240-26100¥25,200

main81240-26100-E2iKZH10#,RZH101..MRF199907-200408

TYPE E,ORCHID,TRIM4#

sub81240-26100¥25,200

main81240-26110-B1iTRH102,112..SGL200308-200408

TYPE G,LT.BLUISH GRAY,TRIM1#

main81240-26110-B1iKZH11#,LH162,17#,RZH102,112..(05S,08S,10S)..(DX,SGL)199808-200408

main81240-26130-B0iLH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..CD,DX,SGLE199803-200501

TYPE A,LT.BLUISH GRAY,TRIM1#

sub81240-26130¥2,260

main81240-26140-B0iKZH11#,RZH111199803-200408

TYPE B,LT.BLUISH GRAY,TRIM1#

sub81240-26140¥3,880

main81240-26150iLH125,184,186,RZH12#¥3,880199803-200501

TYPE B

main81240-95J03iLH113..V1..SRF..4D..06S..DX¥14,600199005-199205

main81240-95J03-03iLH100,102,107,113,119,RZH100,101..(SMRF,SRF)..(05S,08S)198908-199205

main81240-95J03-06iLH100,107,RZH100,101..SMRF..08S198908-199205

main81240-95J11-08iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,06S,09S198908-199308

TYPE A,IVORY,TRIM1#

sub81240-26130¥2,260

main81240-95J11-B0iLH113,123,129,RZH112..HRF199308-199508

TYPE A,LI. GRAY,TRIM1#,4#

sub81240-26130¥2,260

main81240-95J11-B0iLH10#,11#,RZH102,112..SRF..(CD,DX,GL)199308-199608

TYPE A,LI. GRAY,TRIM1#

sub81240-26130¥2,260

main81240-95J11-B1iLH10#,11#,123,129,RZH102,112..CD,DX199608-199802

TYPE A,LT.BLUISH GRAY,TRIM1#

sub81240-26130¥2,260

main81240-95J12-08iLH100,RZH100,101..09S198908-199308

TYPE B,IVORY,TRIM1#

sub81240-26140¥3,880

main81240-95J12-08iLH110,117,RZH110..DX198908-199308

TYPE B,IVORY,TRIM3#

sub81240-26140¥3,880

main81240-95J12-B0iKZH100,RZH100..DX199308-199508

TYPE B,LI. GRAY,TRIM4#

sub81240-26140¥3,880

main81240-95J12-B0iKZH100,RZH100..DX199308-199608

TYPE B,LI. GRAY,TRIM1#

sub81240-26140¥3,880

main81240-95J12-B1iKZH11#,RZH111199608-199802

TYPE B,LT.BLUISH GRAY,TRIM1#

sub81240-26140¥3,880

main81240-95J13-08iLH125,RZH124199508-199802

TYPE B,IVORY,TRIM1#

main81240-95J13-08iLH125,RZH124199308-199508

TYPE B,IVORY,TRIM4#

main81240-95J13-08iLH125,RZH124198908-199308

TYPE B,IVORY,TRIM3#

mainC812020010A0iLH120..GCGE,GCGN199205-199308

TYPE H,IVORY,TRIM3#

subC8120-20900¥38,500

81240BBULB, ROOM LAMP, NO.1

main90981-11004iLH120,125,RZH124,133..DX,GL¥150198908-199803

main90981-11033iKZH11#,LH103,119..05S,08S,10S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL)¥1,600198908-199808

main90981-11046iKZH11#..4FC;KZH10#,LH162,17#,RZH10#,112..05S,07S,08S¥1,640199808-200408

main90981-11046iKZH10#,RZH101..07S,08S¥1,640199508-199808

main90981-11049iKZH10#,RZH100,101..07S,08S¥2,040199308-199508

main99132-12100iKZH10#,RZH100,101..CTM¥150199308-200501

81241LENS, ROOM LAMP, NO.1

main81241-12020iKZH10#,RZH100,101..CTM¥400199308-199608

TYPE A

main81241-26050iKZH120¥1,290199907-200408

TYPE H

main81241-26050iKZH12#¥1,290199308-199907

TYPE F

main81241-26060iKZH10#,RZH100,101..07S,08S¥4,990199308-199508

main81241-26110iTRH102,112..SGL¥2,910200308-200408

TYPE G

main81241-26110iLH178..SGL;KZH11#,LH162,172,RZH102,112..(05S,10S)..4FC¥2,910199808-200408

main81241-95J04-06iLH100,107,RZH100,101..SMRF..08S198908-199308

sub81241-95J04¥2,920

sub81240-95J04¥7,200

main81241-95J04-13iLH100,102,107,113,119,RZH100,101..(SMRF,SRF)..(05S,08S)198908-199308

sub81241-95J04¥2,920

sub81240-95J04¥7,200

main81241-95J04-B0iLH113..SGL199308-199808

sub81241-95J04¥2,920

sub81240-95J04¥7,200

main81241-95J04-B0iLH113..V1..SRF..4D..06S..DX199103-199608

sub81241-95J04¥2,920

sub81240-95J04¥7,200

main81241-95J04-B0iKZH11#,LH103,119..05S,08S,10S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL)199308-199508

sub81241-95J04¥2,920

sub81240-95J04¥7,200

main81241-95J04-B1iLH119..SGL;KZH11#,LH103,113..(05S,10S)..4FC199608-199808

sub81241-95J04¥2,920

sub81240-95J04¥7,200

main81241-95J11iLH10#,11#,123,129,16#,17#,182,188,RZH102,112..CD,DX,GL¥560198908-200501

TYPE A

main81241-95J12iKZH11#,LH125,RZH111,124¥610198908-200501

TYPE B

81243BODY, ROOM LAMP, NO.1

main81243-26080-B0iKZH10#..SCM199608-200408

LT. BLUISH GRAY,TRIM1#

sub81243-26080¥14,400

main81243-26080-B1iKZH10#,RZH101..SCM199508-199608

LT. GRAY,TRIM1#

sub81243-26080¥14,400

main81243-26080-E0iKZH10#,RZH101..SCM199508-199907

LT. ANTELOPE,TRIM4#

sub81243-26080¥14,400

main81243-26080-E1iKZH10#..SCM199907-200408

ORCHID,TRIM4#

sub81243-26080¥14,400

81250LAMP ASSY, ROOM, NO.2

main81250-13020-B0iKZH10#,RZH100,101..08S199308-199508

GRAY,TRIM1#

sub81250-13020¥4,120

main81250-13020-B1iKZH10#,RZH101..08S199508-199608

LT.GRAY,TRIM1#

sub81250-13020¥4,120

main81250-13020-B1iKZH10#,RZH100,101..08S199308-199508

LT.GRAY,TRIM11

sub81250-13020¥4,120

main81250-13020-B3iKZH10#,RZH101..08S199608-200408

LT. BLUISH GRAY,TRIM1#

sub81250-13020¥4,120

main81250-13020-E0iKZH10#,RZH100,101..07S,08S199308-199907

ANTELOPE,TRIM4#

sub81250-13020¥4,120

main81250-13020-E2iRZH101199907-200408

ORCHID,TRIM4#

sub81250-13020¥4,120

main81250-95J04iLH100,107,RZH100,101..MRF¥29,600198908-199308

mainC812095B08iKZH12#,LH120..GCGE,GCGN199205-199808

mainC812095B08E0iKZH120199907-200408

ORCHID,TRIM4#

subC8120-95B08¥3,340

mainC812095B08E1iKZH12#199808-199907

LT.ANTELOPE,TRIM4#

subC8120-95B08¥3,340

81250BBULB, ROOM LAMP, NO.2

main90981-11021iLH17#,RZH102,112,TRH102,112..5D..SGLE¥180199608-200408

main90981-11026iLH100,107,RZH100,101..MRF¥2,770198908-199308

main99132-13050iKZH10#,RZH100,101..07S,08S¥150199308-200408

81290LAMP ASSY, ROOM, NO.3

main81290-95J02iLH100,107,RZH100,101..MRF¥29,600198908-199308

81290BBULB, ROOM LAMP, NO.3

main90981-11026iLH100,107,RZH100,101..MRF¥2,770198908-199308

81363LENS, ROOM LAMP, OUTER

main81363-26010iKZH10#¥2,890199508-200408

81364ALENS, ROOM LAMP, INNER

main81364-26010iKZH10#¥2,760199508-200408

81365AKNOB, ROOM LAMP SWITCH

main81365-26010iKZH10#,RZH101..07S,08S¥210199508-199808

main81365-26010-C0iKZH10#,RZH101..SCL199808-200408

BLACK,TRIM4#

sub81365-26010¥210

main81365-26010-C0iKZH10#,RZH101..08S199808-200408

BLACK,TRIM1#,4#

sub81365-26010¥210

main81365-26020-B1iLH178..SGL;KZH11#,LH162,172,RZH102,112..(05S,10S)..4FC199808-200408

LT.BLUISH GRAY,TRIM1#

sub81365-26020¥240

81366CBASE, ROOM LAMP SWITCH

main81366-26010-B0iKZH10#..SCM199608-200408

LT. BLUISH GRAY,TRIM1#

sub81366-26010¥2,020

main81366-26010-B1iKZH10#,RZH101..SCM199508-199608

LT. GRAY,TRIM1#

sub81366-26010¥2,020

main81366-26010-E0iKZH10#,RZH101..SCM199508-199907

LT. ANTELOPE,TRIM4#

sub81366-26010¥2,020

main81366-26010-E1iKZH10#..SCM199907-200408

ORCHID,TRIM4#

sub81366-26010¥2,020

main81366-26020-B0iKZH10#,RZH101..MRF199508-199608

LT. GRAY,TRIM1#

sub81366-26020¥2,020

main81366-26020-B1iRZH101..SCMM199608-200408

LT.BLUISH GRAY,TRIM1#

sub81366-26020¥2,020

main81366-26020-E0iKZH10#,RZH101..MRF199508-199907

LT.ANTELOPE,TRIM4#

sub81366-26020¥2,020

main81366-26020-E1iRZH101..MRF199907-200408

ORCHID,TRIM4#

sub81366-26020¥2,020

8202

8401

9011906200

main90119-06200¥280

9011906438

main90119-06438¥120

9011906568

main90119-06568¥120

9015950087

main90159-50087¥230

9015960002

main90159-60002¥130

9354013010

main93540-13010¥160

9354024516

main93540-24516¥80

9356014014

main93560-14014¥60

9356055014

main93560-55014¥60

25 parts on this diagram · 3 diagrams in section
