Toyota HIACE/REGIUSACE — INJECTION NOZZLE

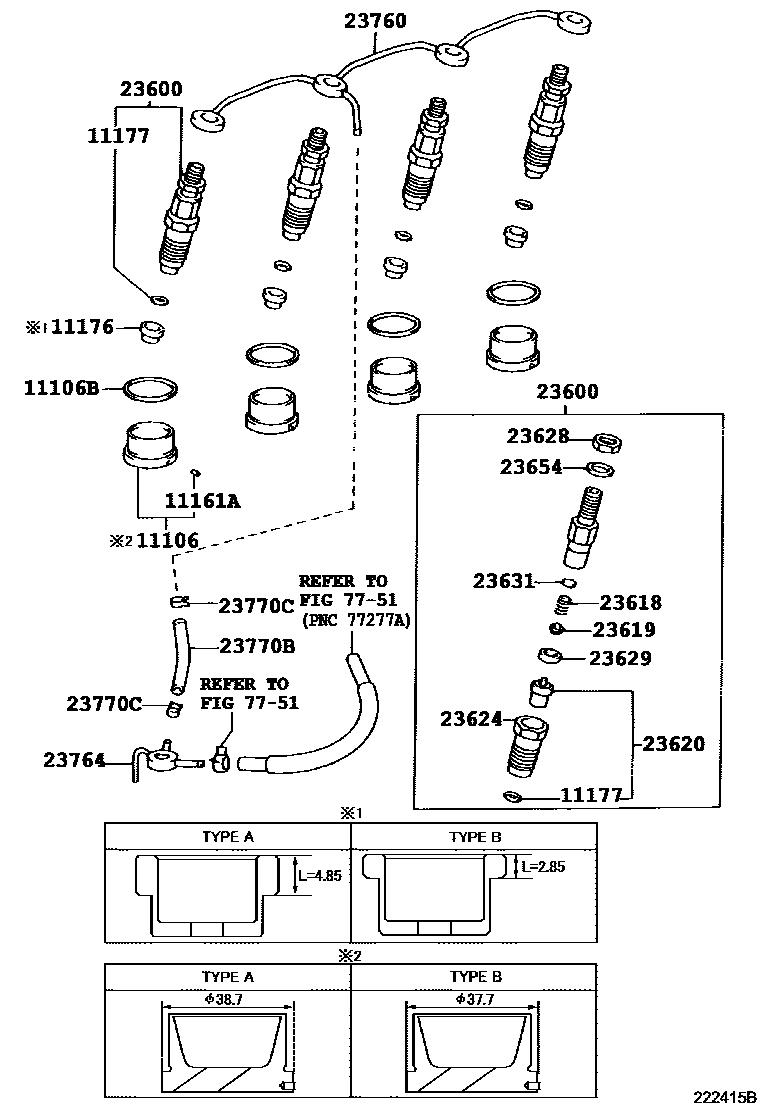

0001 1 0002 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-54060i5L..LH16#,17#,18#¥13,400199808-199810

sub11106-54170¥13,000

main11106-54100i2L..LH100,102,110,140¥11,400198908-199308

main11106-54110i2LT#..LH100,120¥11,600198908-199308

main11106-54120i3L..LH103,107,109,113,115,117,119,123,125,129¥11,600198908-199808

main11106-54170i5L..LH16#,17#,18#¥13,000199810-199909

main11106-54171i5L..LH16#,17#,18#¥17,100199909-200408

sub11106-54170¥13,000

main11106-67020i1KZTE..KZH10#,11#,120,13#¥17,000199907-199909

main11106-67020i1KZTE..KZH10#,11#,12#,13#¥17,000199308-199907

main11106-67021i1KZTE..KZH10#,11#,120,13#¥17,000199909-200108

main11106-67052i1KZTE..KZH10#,11#,120,13#¥17,100200108-200408

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-54030i5L..LH16#,17#,18#¥330198908-200408

main11165-67020i1KZTE..KZH10#,11#,120,13#¥510199308-199909

main11165-67030i1KZTE..KZH10#,11#,120,13#¥310199909-200408

main11166-67020i1KZTE..KZH10#,11#,12#,13#¥510199308-199909

main11166-67030i1KZTE..KZH10#,11#,120,13#¥310199909-200408

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i5L..LH16#,17#,18#¥110198908-200408

11176SEAT, INJECTION NOZZLE

main11176-05010i5L..LH16#,17#,18#200301-200408

main11176-64010i5L..LH16#,17#,18#¥250200301-200408

main11176-64010i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥250198908-200301

main11176-67010i1KZTE..KZH10#,11#,120,13#¥320199308-199909

main11176-67011i1KZTE..KZH10#,11#,120,13#¥230199909-200408

11177GASKET, INJECTION NOZZLE SEAT

main11177-54020i3L,5L..LH10#,11#,12#,16#,17#,18#¥110199404-200408

main11177-64010i2L,2LT#,3L..LH10#,11#,12#,140¥350198908-200408

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59105i2L,3L..LH10#,11#,123,125,129,140¥16,800198908-199508

main23600-59115i2LT..LH100,120¥16,800198908-199010

main23600-59155i2LTE..LH100,120¥16,800199010-199308

main23600-59225i3L..LH10#,11#,12#¥16,800199508-199808

main23600-59265i5L..LH16#,17#,18#¥16,800199808-199901

sub23600-59266¥11,700

main23600-59266i5L..LH16#,17#,18#¥11,700199901-200408

main23600-59315i5L..LH16#,17#,18#¥11,600199901-200408

main23600-69105i1KZTE..KZH10#,11#,12#,13#¥29,700199308-199907

main23600-69165i1KZTE..KZH10#,11#,120,13#¥16,900199907-200408

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54080i2L,2LTE,3L..LH10#,11#,12#,140198908-199508

main23618-54730i1KZTE..KZH10#,11#,12#,13#198908-200408

main23618-64080i1KZTE..KZH10#,11#,120,13#199907-200408

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i1KZTE..KZH10#,11#,120,13#198908-200408

23620NOZZLE ASSY

main23620-59045i2L,3L..LH10#,11#,123,125,129,140¥4,050198908-199808

main23620-59055i2LT..LH100,120¥4,050198908-199010

main23620-59065i2LTE..LH100,120¥3,990199010-199308

main23620-59115i5L..LH16#,17#,18#¥3,630199808-200408

main23620-69075i1KZTE..KZH10#,11#,12#,13#¥10,200199308-199907

main23620-69105i1KZTE..KZH10#,11#,120,13#¥5,300199907-200408

23624NUT, NOZZLE RETAINING

main23624-64010i2LT#..LH100,120198908-199308

sub23624-55010

main23624-64040i5L..LH16#,17#,18#198908-200408

sub23624-64041¥0

main23624-64041i1KZTE..KZH10#,11#,12#,13#¥0199308-199907

23628NUT(FOR RING PACKING SETTING)

main23628-64010i1KZTE..KZH10#,11#,12#,13#198908-200408

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-54080i1KZTE..KZH10#,11#,120,13#198908-200408

main23629-64010i2LTE..LH100,120199010-199308

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i5L..LH16#,17#,18#198908-200408

main23631-64012i5L..LH16#,17#,18#198908-200408

main23631-64014i1KZTE..KZH10#,11#,120,13#198908-200408

main23631-64016i1KZTE..KZH10#,11#,120,13#198908-200408

main23631-64018i1KZTE..KZH10#,11#,120,13#198908-200408

main23632-64010i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

main23632-64012i5L..LH16#,17#,18#198908-200408

main23632-64014i5L..LH16#,17#,18#198908-200408

main23632-64016i1KZTE..KZH10#,11#,120,13#198908-200408

main23632-64018i5L..LH16#,17#,18#198908-200408

main23633-64010i1KZTE..KZH10#,11#,120,13#198908-200408

main23633-64012i5L..LH16#,17#,18#198908-200408

main23633-64014i1KZTE..KZH10#,11#,120,13#198908-200408

main23633-64016i5L..LH16#,17#,18#198908-200408

main23633-64018i5L..LH16#,17#,18#198908-200408

main23634-64010i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

main23634-64012i1KZTE..KZH10#,11#,120,13#198908-200408

main23634-64014i5L..LH16#,17#,18#198908-200408

main23634-64016i5L..LH16#,17#,18#198908-200408

main23634-64018i5L..LH16#,17#,18#198908-200408

main23635-64010i1KZTE..KZH10#,11#,120,13#198908-200408

main23635-64012i1KZTE..KZH10#,11#,120,13#198908-200408

23654WASHER(FOR RING PACKING)

main23654-64010i1KZTE..KZH10#,11#,12#,13#198908-200408

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-05010i5L..LH16#,17#,18#200312-200408

main23760-54030i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥2,460198908-200312

main23760-54030i5L..LH16#,17#,18#¥2,460200312-200408

main23760-67020i1KZTE..KZH10#,11#,12#,13#¥3,710199308-199808

main23760-67030i1KZTE..KZH10#,11#,120,13#¥3,780199808-200408

23764PIPE, NOZZLE LEAKAGE, NO.4

main23764-54070i2LTE..LH100,120¥2,260199010-199308

main23764-54080i2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140¥1,360198908-199808

main23764-54090i5L..LH16#,17#,18#¥1,290198908-200408

main23764-67010i1KZTE..KZH10#,11#,120,13#¥2,010199308-200408

23770BHOSE, FUEL

main95333-04020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥510198908-200408

main95333-04020i1KZTE..KZH10#,11#,12#,13#¥510199808-200408

main95333-04020i1KZTE..KZH10#,11#,12#,13#¥510199308-199808

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90467-10049i1KZTE..KZH10#,11#,12#,13#¥140199308-199907

sub90467-10149¥200

main90467-10149i1KZTE..KZH10#,11#,120,13#¥200199907-200408

main96132-30400i2L,2LT#,3L..LH10#,11#,12#,140¥200198908-199502

sub96132-51000¥160

main96132-51000i5L..LH16#,17#,18#¥160199907-200408

main96133-41000i3L,5L..LH10#,11#,12#,16#,17#,18#¥130199502-199907

sub96132-51000¥160
