Toyota HIACE/REGIUSACE — HORN

0001 1 0002 1

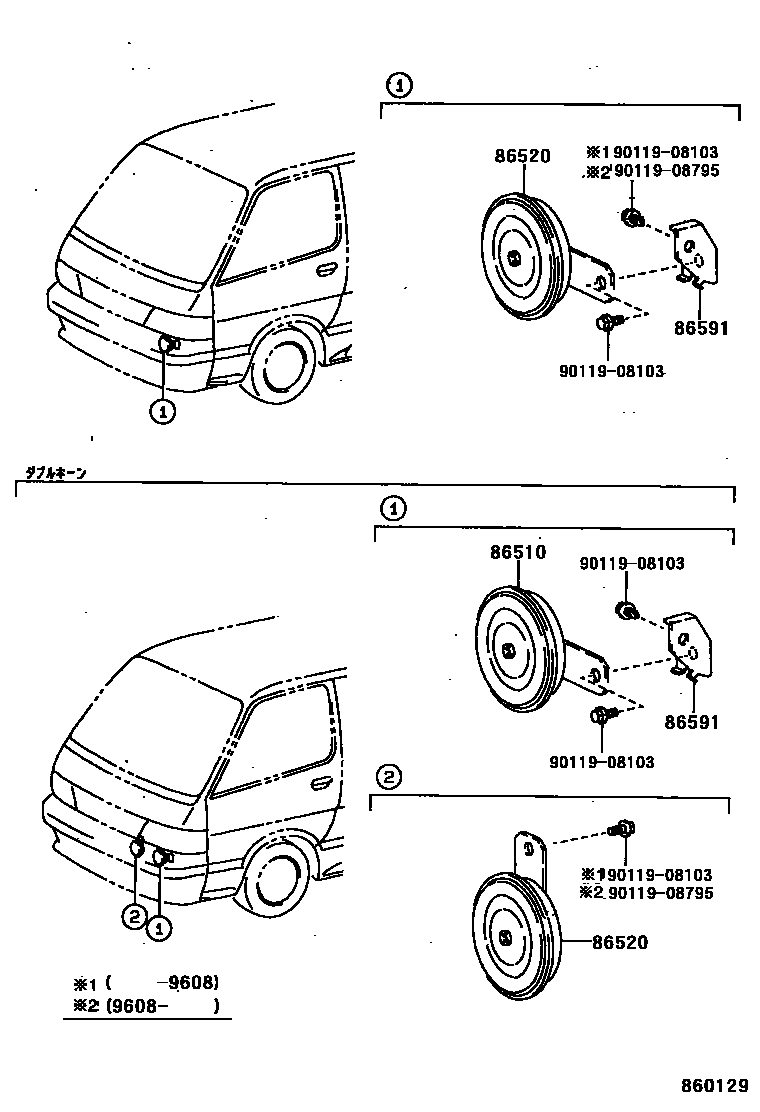

86510HORN ASSY, HIGH PITCHED

main86510-26040iLH120..GCGE,GCGN;KZH10#,12#,13#,LH100,107,RZH100,101..03S,07S,08S,10S¥5,000199205-199608

main86510-26050iKZH11#..4FC;KZH10#,12#,13#,RZH101¥3,610199608-199907

main86510-26080iKZH10#,11#,RZH101..MRF,SRF¥3,610199907-200208

main86510-26100iKZH10#,11#..MRF,SRF¥3,620200208-200408

main86510-95J00iLH100,107,RZH100,101..07S,08S¥3,750198908-199205

NIPPON DENSO

sub86510-32H90¥3,750

main86510-95J01iLH100,107,RZH100,101..07S,08S¥3,750198908-199205

86520HORN ASSY, LOW PITCHED

main86520-12220iKZH10#,11#,RZH100,101,111,133..CTM,DX¥3,420198908-199608

main86520-12220iLH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX¥3,420199005-199508

main86520-12640iLH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX¥3,420199005-199508

main86520-12640iLH100,107,120,RZH100,101..HRF,MRF,SMRF¥3,420198908-199510

main86520-13010iKZH10#,11#,RZH101,111,133..CTM,DX¥5,700199510-199608

main86520-26010iLH120..GCGE,GCGN;KZH10#,12#,13#,LH100,107,RZH100,101..03S,07S,08S,10S¥5,000199205-199608

main86520-26020iKZH10#,12#,13#,RZH101¥3,610199608-199808

main86520-26020iKZH11#..4FC;KZH10#,12#,13#,RZH101¥3,610199808-199907

main86520-26040iLH16#,17#,18#,RZH102,112,12#,18#¥3,480199608-200208

main86520-26040iLH16#,17#,18#,RZH102,112,12#,18#¥3,480199907-200208

main86520-26060iKZH10#,11#,120,13#,RZH101,111..HRF,SMRF,SRF¥3,480199608-200208

main86520-26120iKZH10#,11#,RZH101..MRF,SRF¥3,610199907-200208

main86520-26140iKZH10#,11#,120,13#..HRF,SMRF,SRF¥3,490200208-200408

main86520-26150iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#¥3,480200208-200501

main86520-26160iKZH10#,11#..MRF,SRF¥3,620200208-200408

main86520-95J12iLH10#,11#,12#,RZH102,112,124¥3,750198908-199608

main86520-95J14iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF¥3,750198908-199608

86591BRACKET, HORN

main86591-26020iKZH11#..4FC;KZH10#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,112,12#¥450199608-200501

main86591-95J06iLH120..GCGE,GCGN;LH10#,11#,123,125,129,140,RZH10#,11#,12#..CD,DX,GL,SCL,SCM,SCMM,SGL,SW¥660198908-199608

9011908103

main90119-08103¥90

9011908795

main90119-08795¥170

5 parts on this diagram · 2 diagrams in section
