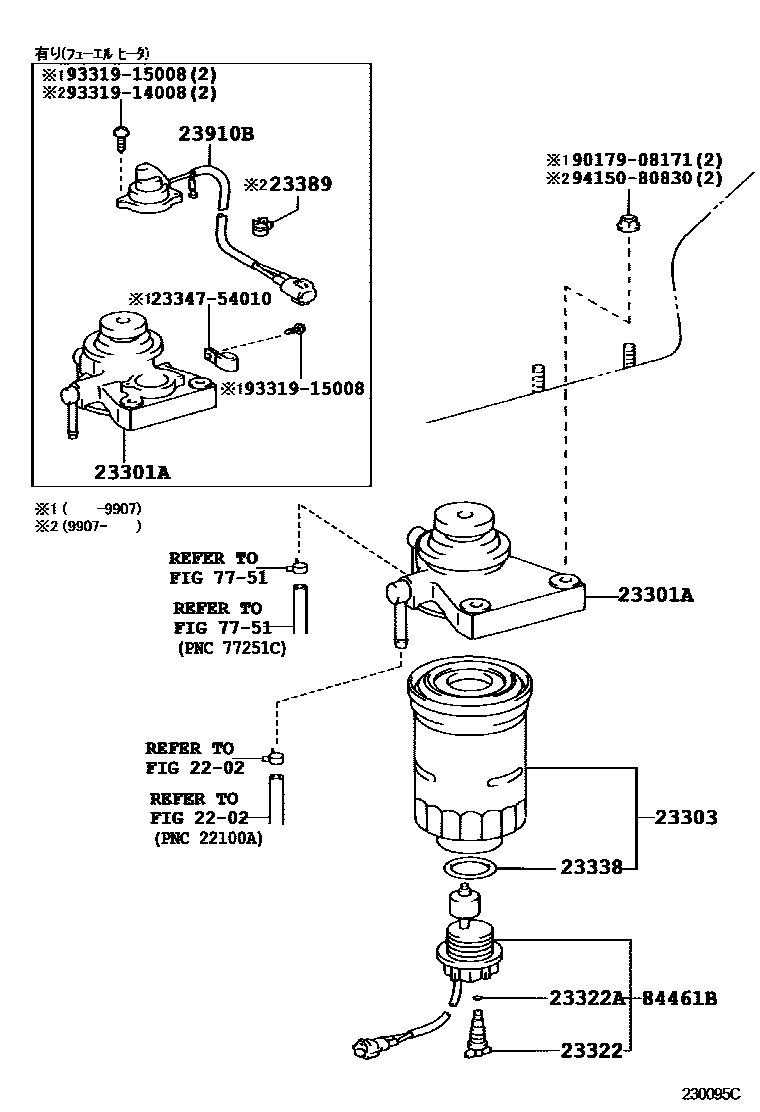

Toyota HIACE/REGIUSACE — FUEL FILTER

0001 1 0002 1 0003 1

2202

23301ACAP ASSY, FUEL FILTER

main23301-54530i1KZTE..KZH10#,11#,12#,13#¥13,500198908-199907

main23301-56030i2L,2LT#,3L..LH10#,11#,12#,140¥13,400198908-199308

main23301-67050i1KZTE..KZH10#,11#,12#,13#¥13,400199308-199907

main23380-67330i1KZTE..KZH10#,11#,120,13#¥7,500199907-200408

sub23380-67331¥7,500

main23380-67340i1KZTE..KZH10#,11#,120,13#¥7,500199907-200408

sub23380-67341¥7,500

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥6,300198908-199907

main23390-64480i1KZTE..KZH10#,11#,120,13#¥3,540199907-200408

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥660198908-199907

main23388-64470i1KZTE..KZH10#,11#,120,13#¥390199907-200408

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KZTE..KZH10#,11#,12#,13#¥0198908-200408

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥0198908-200408

23389CLAMP, FUEL FILTER

main23389-64490i5L..LH16#,17#,18#¥310199907-200408

23910BHEATER ASSY, FUEL

main23910-54040i2L,2LT#,3L..LH10#,11#,12#,140¥12,600198908-199308

main23910-54140i1KZTE..KZH10#,11#,120,13#¥10,200199907-200408

main23910-67010i3L,5L..LH10#,11#,12#,16#,17#,18#¥12,200199308-199907

7751

84461BSWITCH, LEVEL WARNING

main84461-12050iLH10#,11#,12#,140¥5,400198908-199308

main84461-12060iKZH10#,11#,12#,13#¥5,700199308-199907

main84461-26090iKZH10#,11#,120,13#¥5,400199907-200408

sub84461-26091¥5,400

2334754010CLIP, CORD

main23347-54010¥0

9017908171

main90179-08171¥150

9331914008

main93319-14008¥80

9331915008

main93319-15008¥170

9415080830

main94150-80830¥130

15 parts on this diagram · 3 diagrams in section
