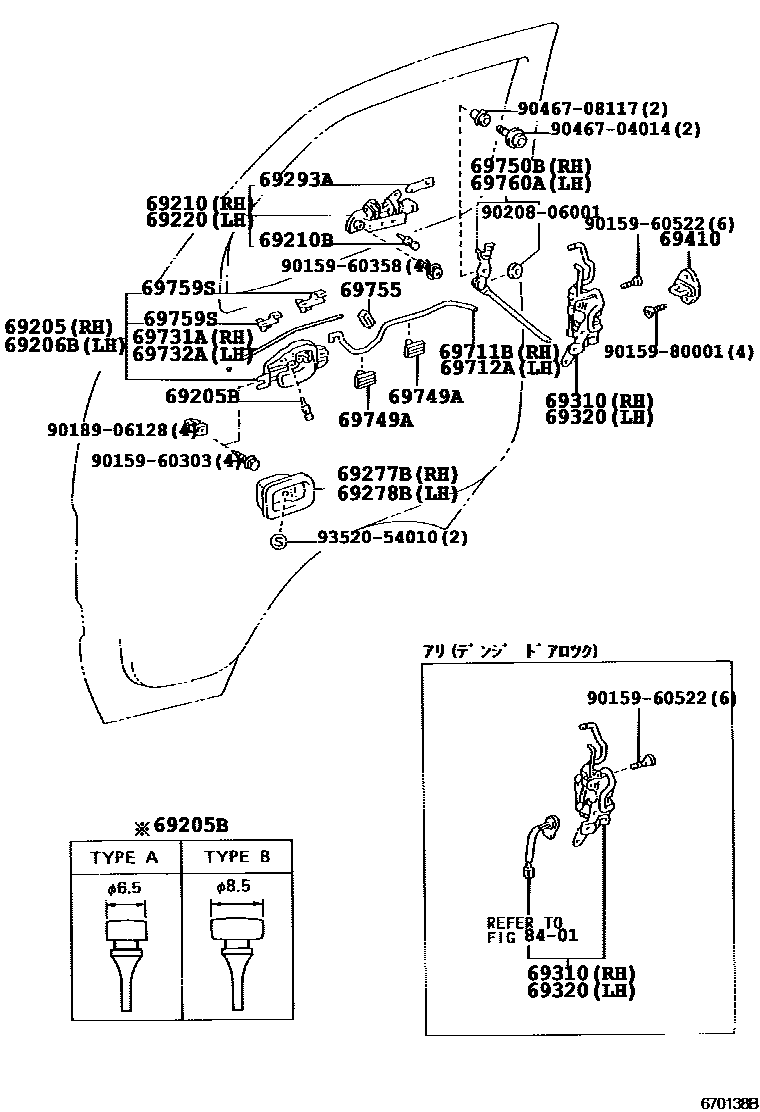

Toyota HIACE/REGIUSACE — FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-26010-B0iKZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S199308-200501

BLUISH GRAY,TRIM1#

sub69205-26010¥3,050

main69205-26010-E0iKZH10#,12#,13#,RZH101199308-199907

ANTEPOPE,TRIM4#

sub69205-26010¥3,050

main69205-26010-E2iKZH10#,120,RZH101199907-200408

ORCHID BROWN,TRIM4#

sub69205-26010¥3,050

main69205-95J00-02iLH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S198908-199308

NEW MAROON,TRIM3#

sub69205-60030¥3,040

main69205-95J00-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199308

GRAY,TRIM1#

sub69205-60030¥3,040

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iLH113..5F;LH100..CTM..TDE;LH113..06S..4FC..DX;LH102,109,110,115,117,119,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SW¥100199010-199308

main90541-04018iKZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#¥160198908-199508

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-26010-B0iKZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL199308-200501

BLUISH GRAY,TRIM1#

sub69206-26010¥3,050

main69206-26010-E0iKZH10#,12#,13#,RZH101199308-199907

ANTEPOPE,TRIM4#

sub69206-26010¥3,050

main69206-26010-E2iKZH10#,120,RZH101199907-200408

ORCHID BROWN,TRIM4#

sub69206-26010¥3,050

main69206-95J00-02iLH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S198908-199308

NEW MAROON,TRIM3#

main69206-95J00-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199308

GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-26030-A1iKZH10#,RZH101..SCMM199907

main69210-26030-A1iKZH10#,RZH101..4FC..SCMM199808-199907

main69210-26030-A2iKZH10#,RZH101..SCL199907-200408

WHITE PM.,2GC

main69210-26030-B0iKZH10#,RZH101..SCL199608-200408

WARM GRAY PEARL ME.,2BY

main69210-26030-E0iKZH10#,RZH101..SCL199608-199907

FLAXEN MM,2AX

main69210-95J03iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S¥6,600198908-200501

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥100198908-200501

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-26030-A1iKZH10#,RZH101..SCMM199907

main69220-26030-A1iKZH10#,RZH101..4FC..SCMM199808-199907

main69220-26030-A2iKZH10#,RZH101..SCL199907-200408

WHITE PM.,2GC

main69220-26030-B0iKZH10#,RZH101..SCL199608-200408

WARM GRAY PEARL ME.,2BY

main69220-26030-E0iKZH10#,RZH101..SCL199608-199907

FLAXEN MM,2AX

main69220-95J03iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S¥6,600198908-200501

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-95J00-02iLH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S198908-199308

NEW MAROON,TRIM3#

sub69277-95J00¥850

main69277-95J00-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199308

GRAY,TRIM1#

sub69277-95J00¥850

main69277-95J00-B0iKZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL199308-200501

BLUISH GRAY,TRIM1#

sub69277-95J00¥850

main69277-95J00-E0iKZH10#,12#,13#,RZH101199308-199907

ANTELOPE,TRIM4#

sub69277-95J00¥850

main69277-95J00-E1iKZH10#,120,RZH101199907-200408

ORCHID BROWN,TRIM4#

sub69277-95J00¥850

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-95J00-02iLH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S198908-199308

NEW MAROON,TRIM3#

sub69278-95J00¥850

main69278-95J00-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199308

GRAY,TRIM1#

sub69278-95J00¥850

main69278-95J00-B0iKZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S199308-200501

BLUISH GRAY,TRIM1#

sub69278-95J00¥850

main69278-95J00-E0iKZH10#,12#,RZH101..07S,08S,10S199308-199907

ANTELOPE,TRIM4#

sub69278-95J00¥850

main69278-95J00-E1iKZH10#,120,RZH101199907-200408

ORCHID BROWN,TRIM4#

sub69278-95J00¥850

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥160198908-200501

main69293-12040iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥160198908-200501

69310LOCK ASSY, FRONT DOOR, RH

main69030-26010iLH113..V1..SRF..4D..06S..DX¥17,600199205-199308

main69030-26010iLH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL¥17,600199205-199308

main69030-26011iKZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL¥21,200199508-199808

main69030-26011iLH10#,11#,RZH102,112..CD,DX,GL;KZH10#,LH12#,RZH100,124..(HRF,SMRF)..(CTM,DX,GL)¥21,200199308-199508

main69030-26020iLH100,107,RZH101..4FC..SCMM¥19,700199210-199307

main69030-26020iLH100,107,RZH100,101..SCL¥19,700199205-199308

main69030-26021iKZH10#,RZH101..SCL¥21,200199308-200501

main69030-26021iKZH10#,RZH101..4FC..SCMM¥21,200199701-199808

main69030-26021iKZH10#,RZH101..SCMM¥21,200199808-199907

main69030-26021iKZH10#,RZH101..4FC..SCMM¥21,200199504-199507

main69030-26040iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL¥21,200199308-200501

main69030-26040iLH123,129..06S;LH113..V1..SRF..4D..06S..DX¥21,200199308-199808

main69030-26120iKZH11#,LH16#,17#,18#,RZH102,11#,12#,133..CD,DX¥19,900199808-200501

main69030-95J02iLH113..V1..SRF..4D..06S..DX¥20,100199005-199205

main69030-95J02iLH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL¥20,100198908-199205

main69030-95J03iLH100,107,RZH100,101..SCL¥20,100198908-199205

main69310-26010iLH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW¥9,800199205-199308

main69310-26011iKZH11#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..CD,DX¥10,700199308-200501

main69310-95J07iLH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW¥9,800198908-199205

69320LOCK ASSY, FRONT DOOR, LH

main69040-26010iLH110,117..DX¥16,700199205-199308

main69040-26010iLH110,117..DX¥16,700199205-199308

main69040-26011iLH113..V1..SRF..4D..06S..DX¥18,000199308-199808

main69040-26011iLH113..5D..DX;LH113..09S..DX;LH113..CD,GL,SGL;LH113..V2..4D..DX;KZH11#,LH10#,119,RZH102,11#;KZH10#,12#,13#,LH113,12#,RZH100,101,124,133..(HRF,MRF,SMRF)..4D..(03S,06¥18,000199308-199808

main69040-26020iLH100,107,RZH101..4FC..SCMM¥16,700199210-199307

main69040-26020iLH100,107,RZH100,101..SCL¥16,700199205-199308

main69040-26021iKZH10#,RZH101..SCL¥18,000199308-199808

main69040-26021iKZH10#,RZH101..4FC..SCMM¥18,000199504-199507

main69040-26021iKZH10#,RZH101..4FC..SCMM¥18,000199701-199808

main69040-26022iKZH10#,RZH101..SCMM¥18,000199808-199907

main69040-26090iKZH11#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..CD,DX¥19,900199808-200501

main69040-26100iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL¥19,900199808-200501

main69040-95J02iLH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL¥16,700198908-199205

main69040-95J02iLH113..V1..SRF..4D..06S..DX¥16,700199005-199205

main69040-95J03iLH100,107,RZH100,101..SCL¥16,700198908-199205

main69320-26010iLH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW¥9,800199205-199308

main69320-26011iKZH11#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..CD,DX¥10,700199308-200501

main69320-95J06iLH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW¥9,800198908-199205

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-14050iLH10#,11#,12#,140,RZH10#,11#,12#¥1,700198908-199207

sub69410-20070¥1,710

main69410-20070iKZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#¥1,710199207-199506

main69410-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥1,710199506-200501

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥700198908-200501

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥700198908-200501

69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-95J00iLH10#,11#,12#,140,RZH10#,11#,12#¥670198908-199308

main69750-26030iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥930199308-200501

69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-95J00iLH10#,11#,12#,140,RZH10#,11#,12#¥670198908-199308

main69760-26030iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥930199308-200501

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20030iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥200198910-200501

main69749-50010iLH10#,11#,12#,RZH10#,11#,12#¥170198908-198910

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-95J00iLH10#,11#,12#,140,RZH10#,11#,12#¥1,220198908-199308

69755SILENCER, FRONT DOOR LOCK LINK

main69759-95500iLH123,129..06S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);KZH10#,11#,12#,LH103,119,RZH100,101..05S,07S,08S,10S¥300198908-200408

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥180198908-199907

main69759-14050iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥180199907-200501

main69759-24030iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥180199308-200501

main69759-24040iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥180199308-200501

main69759-24070iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥180198908-199907

main69759-24070iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥180199907-200501

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-95J00iLH10#,11#,12#,140,RZH10#,11#,12#¥1,220198908-199308

8401

9015960303

main90159-60303¥70

9015960358

main90159-60358¥70

9015960522

main90159-60522¥120

9015980001

main90159-80001¥120

9018906128

main90189-06128¥80

9020806001

main90208-06001¥80

9046704014

main90467-04014¥160

9046708117

main90467-08117¥90

9352054010

main93520-54010¥110

31 parts on this diagram · 2 diagrams in section
