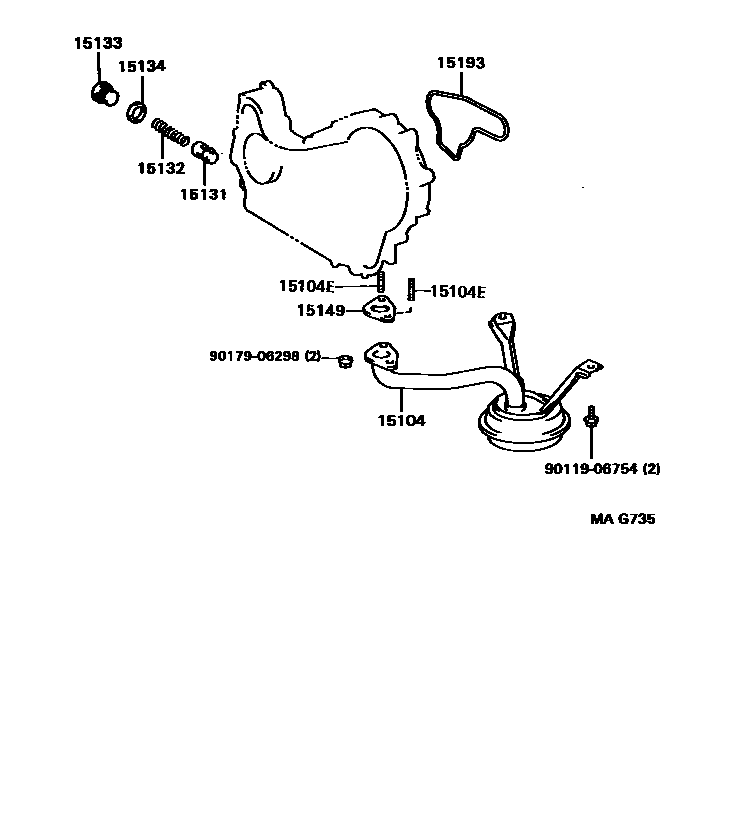

Toyota HIACE/REGIUSACE — ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15104STRAINER SUB-ASSY, OIL

main15104-54160i3L..LH119..4D;3L..LH119..5D..5F;3L..LH107,109,117,129¥13,200198908-199701

sub15104-54161¥8,200

main15104-54161i3L,5L..LH109,119,129,168,178,186,188¥8,200199701-200308

main15104-54180i2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140¥10,700198908-199105

sub15104-54181¥10,300

main15104-54181i2L#,3L..LH100,102,103,110,113,115,120,123,125,140¥10,300199105-199701

sub15104-54220¥10,400

main15104-54220i5L..LH162,172,182,184¥10,400199701-200408

main15104-54230i5L..LH168,178,186,188¥9,800200308-200408

sub15104-54240¥6,000

main15104-67030i1KZTE..KZH100,110,120¥9,800199308-199508

main15104-67040i1KZTE..KZH106,116,120,138..4WD¥9,800199308-200408

main15104-67060i1KZTE..KZH100,110,120,132¥6,000199508-200408

main15104-75010i1RZ#,2RZE..RZH10#,11#,12#¥7,300198908-199508

main15104-75070i1RZE,2RZE..RZH10#,11#,12#,133¥6,500199508-200308

main15104-75111i1TRFE..TRH102,112,12#¥6,300200308

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KZTE..KZH10#,11#,120,13#¥100199308-200408

main90126-08037i1TRFE..TRH102,112,12#¥340200308

main92122-40816i5L..LH16#,17#,18#¥180198908-200208

main92122-80816i5L..LH16#,17#,18#¥70200208-200408

15131VALVE, OIL PUMP RELIEF

main15131-24010i1RZ#,2RZE..RZH10#,11#,12#¥340198908-200308

main15131-46040i1TRFE..TRH102,112,12#¥310199308-200501

main15131-54010i5L..LH16#,17#,18#¥360198908-200408

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KZTE..KZH10#,11#,120,13#¥200199308-200408

main15132-54010i5L..LH16#,17#,18#¥240198908-200408

main15132-75010i1RZE,2RZE..RZH10#,11#,12#,133¥450198908-200308

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1TRFE..TRH102,112,12#¥280199308-200501

main15133-54010i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥310198908-200408

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1KZTE..KZH10#,11#,12#,13#¥240199308-200501

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KZTE..KZH10#,11#,12#,13#¥270199308-200408

15193GASKET, OIL PUMP

main15193-67010i1KZTE..KZH10#,11#,12#,13#¥330199308-199806

main15193-67011i1KZTE..KZH10#,11#,12#,13#¥330199807-200408

9011906754

main90119-06754¥90

9017906298

main90179-06298¥90

10 parts on this diagram · 4 diagrams in section
