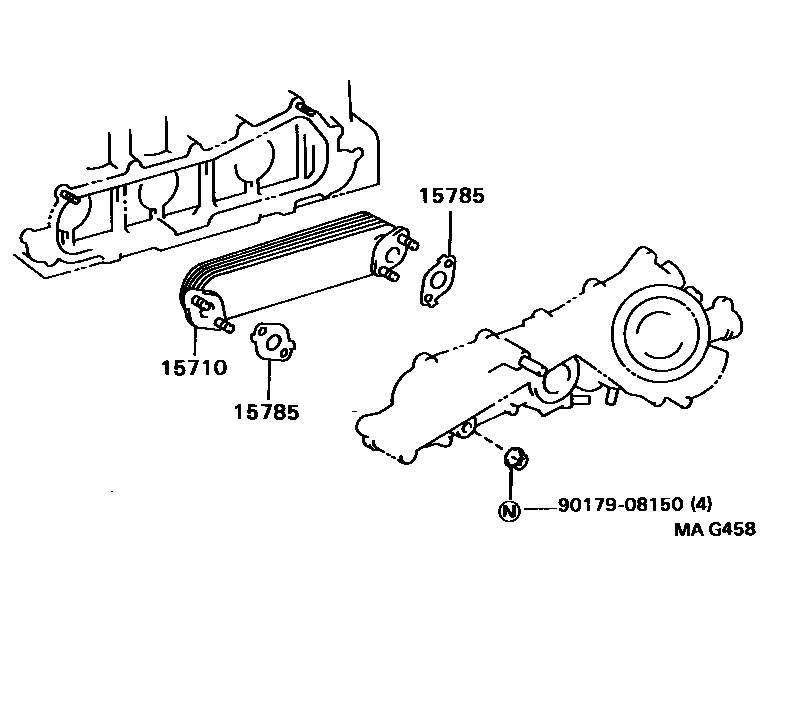

Toyota HIACE/REGIUSACE — ENGINE OIL COOLER

0001 1 0002 1

15710COOLER ASSY, OIL

main15710-54050i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥29,600198908-200408

main15710-67040i1KZTE..KZH10#,11#,12#,13#¥49,100199308-200408

15785GASKET, OIL COOLER

main15785-30010i1KZTE..KZH10#,11#,120,13#¥410200004-200408

main15785-66010i1KZTE..KZH10#,11#,12#,13#¥390199308-200003

9017908150

main90179-08150¥120

3 parts on this diagram · 2 diagrams in section
