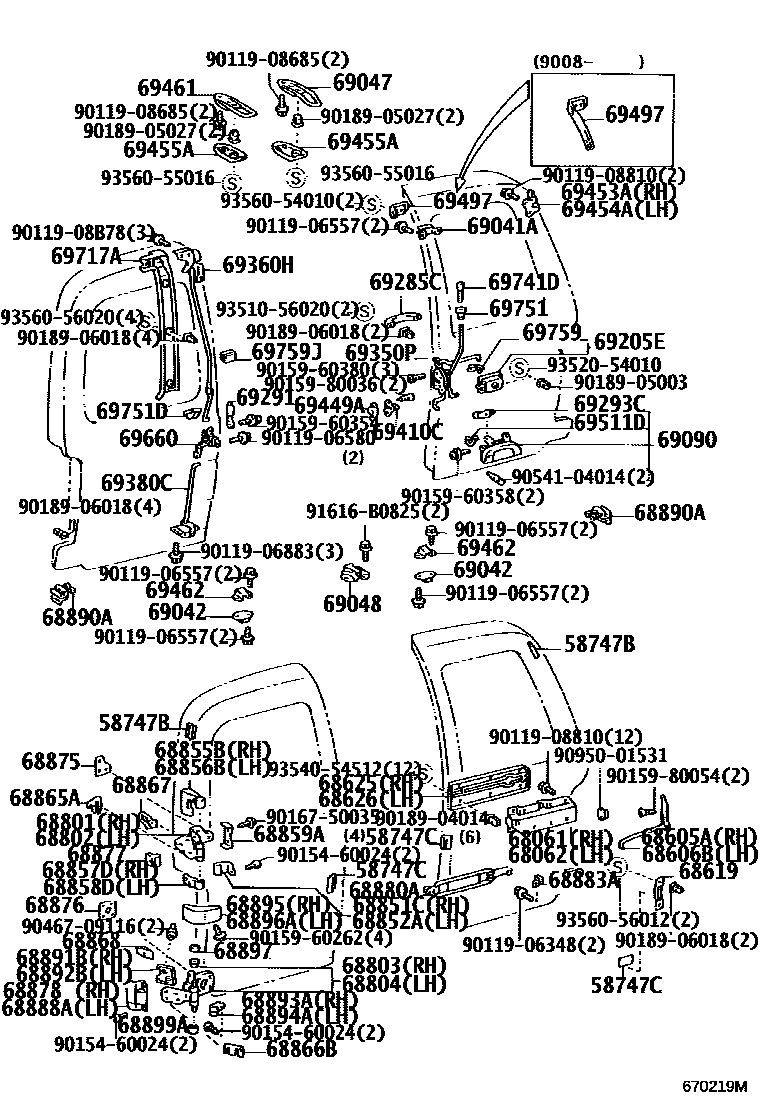

Toyota HIACE/REGIUSACE — BACK DOOR LOCK & HINGE
58747BPROTECTOR, QUARTER PANEL, REAR
58747CPROTECTOR, QUARTER PANEL, REAR
68061GUIDE SUB-ASSY, BACK DOOR CHECK, RH
68062GUIDE SUB-ASSY, BACK DOOR CHECK, LH
68605AARM SUB-ASSY, BACK DOOR CHECK, RH
68606BARM SUB-ASSY, BACK DOOR CHECK, LH
68619HOLDER, BACK DOOR CHECK ARM
68625COVER, BACK DOOR CHECK GUIDE, RH
BLUISH GRAY,TRIM1#
68626COVER, BACK DOOR CHECK GUIDE, LH
BLUISH GRAY,TRIM1#
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
68802HINGE SUB-ASSY, BACK DOOR, UPPER LH
68803HINGE ASSY, BACK DOOR, LOWER RH
68804HINGE ASSY, BACK DOOR, LOWER LH
68851CCOVER, BACK DOOR HINGE, RH
68852ACOVER, BACK DOOR HINGE, LH
68855BCOVER, BACK DOOR UPPER HINGE FEMALE, NO.1 RH
68856BCOVER, BACK DOOR UPPER HINGE FEMALE, NO.1 LH
68857DCOVER, BACK DOOR UPPER HINGE FEMALE, NO.2 RH
68858DCOVER, BACK DOOR UPPER HINGE FEMALE, NO.2 LH
68859ASPACER, BACK DOOR HINGE COVER
68865ASPACER, BACK DOOR UPPER HINGE DOOR SIDE
68866BSPACER, BACK DOOR LOWER HINGE DOOR SIDE
68867CUSHION, BACK DOOR HINGE MALE, UPPER
68868SEAL, BACK DOOR HINGE
68875SPACER, BACK DOOR UPPER HINGE
�������P�D�O
�������P�D�U
68876SPACER, BACK DOOR LOWER HINGE
�������P�D�O
�������P�D�U
68877CUSHION, BACK DOOR HINGE FEMALE, UPPER
68878CUSHION, BACK DOOR HINGE FEMALE, LOWER RH
68880ABAND ASSY, BACK DOOR OPEN STOPPER
68883AHOLDER, BACK DOOR OPEN STOPPER
68888ACUSHION, BACK DOOR HINGE FEMALE, LOWER LH
68890ABRACKET ASSY, BACK DOOR OPEN STOPPER
68891BCOVER, BACK DOOR LOWER HINGE MALE, NO.1 RH
68892BCOVER, BACK DOOR LOWER HINGE MALE, NO.1 LH
68893ACOVER, BACK DOOR LOWER HINGE MALE, NO.2 RH
68894ACOVER, BACK DOOR LOWER HINGE MALE, NO.2 LH
68895COVER, BACK DOOR LOWER HINGE FEMALE, NO.1 RH
68896ACOVER, BACK DOOR LOWER HINGE FEMALE, NO.1 LH
68897COVER, BACK DOOR LOWER HINGE FEMALE, NO.2
68899ACOVER, BACK DOOR LOWER HINGE FEMALE, NO.3
69041ASTOPPER SUB-ASSY, BACK DOOR, UPPER
69042STOPPER SUB-ASSY, BACK DOOR, LOWER
69047STRIKER SUB-ASSY, BACK DOOR UPPER LOCK
69048STRIKER SUB-ASSY, BACK DOOR LOWER LOCK
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69205EHANDLE SUB-ASSY, BACK DOOR INSIDE, RH
BLUISH GRAY,TRIM1#
69285CHANDLE, PULL
GRAY,TRIM1#
GRAY,TRIM1#
69291HANDLE ASSY, BACK DOOR INSIDE
main69291-95J00-23iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S198908-199308
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
SHADOW GRAY,TRIM1#
69293CSNAP, BACK DOOR HANDLE
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
��(�-��- ��-��)
�������� �-
main69350-95J01iKZH10#,11#,12#,LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM¥7,500198908-199508
�������� �-
main69350-95J01iKZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12#..03S,08S,09S,10S,15S¥7,500199508-199907
main69350-95J01iKZH10#,11#,120,13#,LH184,186,RZH101,111,12#,TRH124..03S,08S,10S,15S¥7,500199907-200501
main69350-95J02iLH184,TRH124..5F..DX;LH16#,17#,182,188,RZH102,112,18#,TRH102,112,122¥7,500199907-200501
��(��������� �������)
���������
main69350-95J02iLH184,186..DX;LH102,103,109,110,113,119,123,129,140,16#,17#,182,188,RZH102,112,122,133..03S,05S,06S,08S,09S¥7,500198908-199907
��(��������� �������)
���������
��(��������� �������)
���������
���������
�����������(����=�-��-���� OR �-��-����=��������) OR ������ ���
���������
���������
��(�������� �������)
69360HLOCK ASSY, BACK DOOR, UPPER LH
69380CLOCK ASSY, BACK DOOR, LOWER
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69449ASHIM, BACK DOOR LOCK STRIKER
main69449-95J00iRZH124..5F..EFI;LH125,184,186..DX;LH102,103,109,110,113,117,119,123,129,140,16#,17#,182,188,RZH102,112,122,133¥240198908-199907
��(�������� �������)
69453ASTOPPER, BACK DOOR UPPER SIDE, RH
69454ASTOPPER, BACK DOOR UPPER SIDE, LH
69455ACOVER, BACK DOOR UPPER LOCK STRIKER
69461STOPPER, BACK DOOR SIDE MALE, RH
��(�������� �������)
69462STOPPER, BACK DOOR SIDE MALE, LH
69497CUSHION, BACK DOOR UPPER STOPPER, NO.2
69511DRETAINER, BACK DOOR LOCK CYLINDER
69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH
69717ACOVER, BACK DOOR LOCK CONTROL LINK
BLUISH GRAY,TRIM1#
LT.GRAY,TRIM1#
69741DKNOB, DOOR LOCK CONTROL(FOR BACK DOOR)
BLACK,TRIM1#
BLACK,TRIM1#
main69741-28010-C1iLH123..5F;LH102,109,110,113,119,129,140,RZH102,112,122..03S,05S,06S,08S,09S199207-199308
BLACK,TRIM1#
main69741-28010-C1iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S198908-199207
BLACK,TRIM1#
69751HOLDER, DOOR LOCK CONTROL KNOB
main69751-95J00-B0iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S198908-199308
GRAY,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759JSILENCER, DOOR LOCK LINK
9011906348
9011906557
9011906580
9011906883
9011908685
9011908810
9011908B78
9015460024
9015960262
9015960354
9015960358
9015960380
9015980036
9015980054
9016750035
9018904014
9018905003
9018905027
9018906018
9046709116
9054104014
9095001531
91616B0825
9351056020
9352054010
9354054512
9356054010
9356055016
9356056012
9356056020
98 parts on this diagram · 3 diagrams in section
