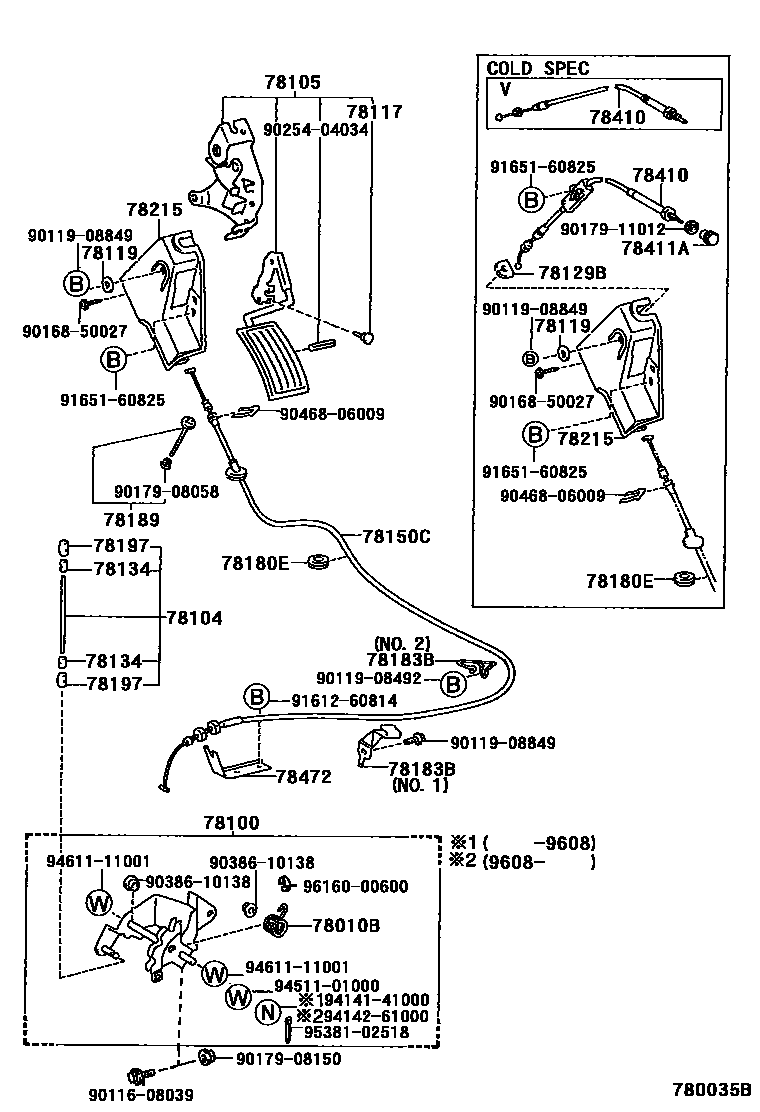

Toyota HIACE/REGIUSACE — ACCELERATOR LINK

0001 1 0003 1 0004 1 0005 1 0006 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-15010iLH10#,11#,12#,140..5F..(DSL,TD)¥190198908-199305

sub90508-16114¥200

main90508-16114iLH100,102,107,113,119,123..4FC..(DSL,TD)¥200198908-199305

main90508-16114iLH10#,11#,123,125,129,140,16#,17#,18#..DSL¥200199305-199907

main90508-16114iLH16#,17#,18#¥200199907-200408

78100LINK ASSY, ACCELERATOR

main78100-26010iLH10#,11#,123,125,129,140,16#,17#,18#..DSL¥3,830199305-199907

main78100-26010iLH100,102,107,113,119,123..4FC..(DSL,TD)¥3,830198908-199305

main78100-26010iLH16#,17#,18#¥3,830199907-200408

main78100-26020iLH10#,11#,12#,140..5F..(DSL,TD)¥5,900198908-199305

sub78100-26010¥3,830

main78100-26150iLH162,172..5F..CD¥5,500200012-200408

������

main78100-26150iLH162,172..V1..5D..5F¥5,500200108-200408

������

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLH10#,11#,12#,140,16#,17#,18#..DSL,TD¥500198908-199907

main78104-22140iLH16#,17#,18#¥500199907-200408

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78105-26010iRZH10#,11#,125,133..4FC¥4,760199808-199907

main78105-26010iRZH101,111¥4,760199907-200208

main78105-26010iLH10#,11#,123,125,129,140..DSL¥4,760199008-199108

main78105-26010iRZH102,112,125,183..4FC¥4,760199907-200308

main78105-26010iLH10#,11#,12#,140,RZH10#,11#,12#,133¥4,760199108-199807

main78105-26020iLH10#,11#,12#,140..DSL,TD¥5,400199008-199108

����� OR ����� ���

main78105-26020iLH10#,11#,12#,140¥5,400199108-199807

����� OR ����� ���

main78105-26020iLH113..HRF..4FC;LH123..09S..4FC;LH11#..V1..5D..4FC..DX;LH113..V2..4D..4FC..DX¥5,400199608-199807

����� ���

main78105-26040iKZH10#,11#,12#,13#¥6,000199308-199907

main78105-26060iRZH102,112,124,182..5F¥6,000199907-200308

main78105-26060iRZH102,112,124..5F¥6,000199808-199907

main78105-26070iLH10#,11#,12#,16#,17#,18#¥5,100199807-199907

main78105-26070iLH16#,17#,18#¥5,100199907-200408

main78105-26080iLH16#,17#,18#¥6,000199907-200408

����� ���

main78105-26080iLH10#,11#,12#,16#,17#,18#¥6,000199807-199907

����� ���

main78105-95J00iLH100,120,RZH10#,11#,12#..CBR,EFI,TD,TDE¥5,100199008-199108

main78105-95J00iLH10#,11#,12#,RZH10#,11#,12#¥5,100198908-199008

main78105-95J01iLH100,120..TDE¥5,700199010-199108

����� OR ����� ���

main78105-95J01iLH10#,11#,12#¥5,700198908-199008

����� OR ����� ���

78117CUSHION (FOR ACCELERATOR ROD)

main90541-05006iLH100,120,RZH10#,11#,12#..CBR,EFI,TD,TDE¥90199008-199108

����� OR ����� ���

main90541-05006iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥90199108-199907

main90541-05006iLH10#,11#,12#,RZH10#,11#,12#¥90198908-199008

main90541-05006iRZH101,111¥90199907-200208

main90541-05006iRZH102,112,12#,18#¥90199907-200308

main90541-05006iLH16#,17#,18#¥90199907-200408

main90541-06036iKZH10#,11#,120,13#¥110199907-200002

main90541-06038iTRH12#¥120200002-200501

main90541-06038iKZH10#,11#,120,13#,TRH102,112¥120200002-200408

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥200198908-199907

sub78119-37010¥50

main78119-95J00iRZH101,111¥200199907-200208

sub78119-37010¥50

main78119-95J00iRZH102,112,12#,18#¥200199907-200308

sub78119-37010¥50

main78119-95J00iLH16#,17#,18#¥200199907-200408

sub78119-37010¥50

78129BSEAL, ACCELERATOR PEDAL ARM

main78129-95J01iLH10#,11#,12#,140,16#,17#,18#¥240198908-199907

main78129-95J01iLH16#,17#,18#¥240199907-200408

78134END, ACCELERATOR CONNECTING ROD

main78134-10010iLH10#,11#,12#,140,16#,17#,18#..DSL,TD¥180198908-199907

main78134-10010iLH16#,17#,18#¥180199907-200408

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-26010iLH100,120..TDE¥6,000199010-199308

main78150-26040iRZH102,112,124,182..5F¥6,800199907-200308

main78150-26040iRZH102,112,124..5F¥6,800199808-199907

main78150-26050iKZH10#,11#,12#,13#¥5,700199308-199907

main78150-26060iLH10#,11#,12#,16#,17#,18#¥6,800199807-199907

main78150-26060iLH16#,17#,18#¥6,800199907-200408

main78150-26070iKZH10#,11#,120,13#¥4,270199907-200106

main78150-26071iTRH12#¥4,270200106-200501

main78150-26071iKZH10#,11#,120,13#,TRH102,112¥4,270200106-200408

main78150-95J08iLH100,120..TD¥5,500198908-199010

main78150-95J13iRZH102,112,12#¥5,800198908-199308

main78150-95J14iRZH101,111¥5,700199907-200208

main78150-95J14iRZH102,112,125,183..4FC¥5,700199907-200308

main78150-95J14iRZH10#,11#,124,133..EFI¥5,700198908-199808

main78150-95J14iRZH10#,11#,125,133..4FC¥5,700199808-199907

main78150-95J15iLH10#,11#,123,125,129,140..DSL¥5,700198908-199807

78180EGROMMET (FOR ACCELERATOR WIRE)

main90480-26023iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥260198908-199907

main90480-26023iRZH101,111¥260199907-200208

main90480-26023iRZH102,112,12#,18#¥260199907-200308

main90480-26023iLH16#,17#,18#¥260199907-200408

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-26010iLH100,120..TDE¥190199010-199308

�m�n�D�R

main78183-26020iLH100,120..TDE¥680199010-199308

�m�n�D�S

main78183-26030iLH10#,11#,12#,140¥170199112-199608

�m�n�D�Q

main78183-26030iLH10#,11#,12#,16#,17#,18#¥170199608-199907

�m�n�D�Q

main78183-26030iRZH10#,11#,12#,18#¥170199907-200308

main78183-26030iLH16#,17#,18#¥170199907-200408

�m�n�D�Q

main78183-26040iKZH10#,11#,12#,13#¥660199308-199907

�m�n�D�P

main78183-26050iKZH10#,11#,12#,13#¥250199308-199907

�m�n�D�Q

main78183-26060iKZH10#,11#,12#,13#¥510199308-199907

�m�n�D�R

main78183-26170iTRH12#¥110199907-200501

main78183-26170iKZH10#,11#,120,13#,TRH102,112¥110199907-200408

main78183-95J03iLH113..HRF..4FC;LH123..09S..4FC;LH11#..V1..5D..4FC..DX;LH113..V2..4D..4FC..DX¥670199608-199808

main78183-95J03iLH16#,17#,18#¥670199907-200408

�m�n�D�P

main78183-95J03iLH10#,11#,123,125,129,140,16#,17#,18#..DSL¥670198908-199907

�m�n�D�P

main78183-95J04iLH10#,11#,12#,140..DSL,TDE¥330198908-199112

�m�n�D�Q

main78183-95J06iLH100,120..TD¥670198908-199010

�m�n�D�P

main78183-95J07iLH100,120..TD¥460198908-199010

�m�n�D�Q

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-26010iTRH12#¥300199907-200501

main78208-26010iKZH10#,11#,120,13#,TRH102,112¥300199907-200408

main78208-95J02iLH16#,17#,18#¥750199907-200408

main78208-95J02iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥750198908-199907

main78208-95J02iRZH101,111¥750199907-200208

main78208-95J02iRZH102,112,12#,18#¥750199907-200308

78197CLIP, ACCELERATOR JOINT BALL

main78197-10010iLH16#,17#,18#¥130199907-200408

main78197-10010iLH10#,11#,12#,140,16#,17#,18#..DSL,TD¥130198908-199907

78215CASE, ACCELERATOR LINK

main78215-95J01iLH10#,11#,12#,140,16#,17#,18#¥1,470198908-199907

����� OR ����� ���

main78215-95J01iLH162,17#,182,188..SGLE¥1,470200108-200408

����� ���

main78215-95J01iLH113..HRF..4FC;LH123..09S..4FC;LH11#..V1..5D..4FC..DX;LH113..V2..4D..4FC..DX¥1,470199608-199807

����� ���

main78215-95J01iLH16#,17#,18#..CD,DX,GL,SGL¥1,470199907-200408

����� OR ����� ���

main78215-95J02iRZH102,112,12#,18#¥1,470199907-200308

main78215-95J02iLH16#,17#,18#¥1,470199907-200408

main78215-95J02iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥1,470198908-199907

main78215-95J02iRZH101,111¥1,470199907-200208

78410CABLE ASSY, THROTTLE CONTROL

main78410-95J01iLH16#,17#,18#¥2,240199907-200408

main78410-95J01iLH102,103,109,113,115,119,123,125,129,16#,17#,18#¥2,240198908-199907

main78410-95J02iLH100,107,110,117,120,140¥2,220198908-199308

78411AKNOB, THROTTLE CONTROL CABLE

main78411-95J01iLH16#,17#,18#¥390199907-200408

main78411-95J01iLH10#,11#,12#,140,16#,17#,18#¥390198908-199907

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-26020iLH10#,11#,12#,140,16#,17#,18#..DSL,TD¥370198908-199907

main78472-26020iLH16#,17#,18#¥370199907-200408

main78472-26030iLH162,172..5F..CD¥610200012-200408

������

main78472-26030iLH162,172..V1..5D..5F¥610200108-200408

������

9011608039

main90116-08039¥240

9011908492

main90119-08492

9011908849

main90119-08849¥240

9016850027

main90168-50027¥120

9017908058

main90179-08058¥320

9017908150

main90179-08150¥120

9017911012

main90179-11012¥240

9025404034

main90254-04034¥200

9038610138

main90386-10138¥240

9046806009

main90468-06009¥330

9161260814

main91612-60814¥140

9165160825

main91651-60825¥140

9414141000

main94141-41000¥180

9414261000

main94142-61000¥130

9451101000

main94511-01000¥110

9461111001

main94611-11001¥80

9538102518

main95381-02518¥80

9616000600

main96160-00600¥80

35 parts on this diagram · 5 diagrams in section
