Toyota HARRIER — WIRING & CLAMP

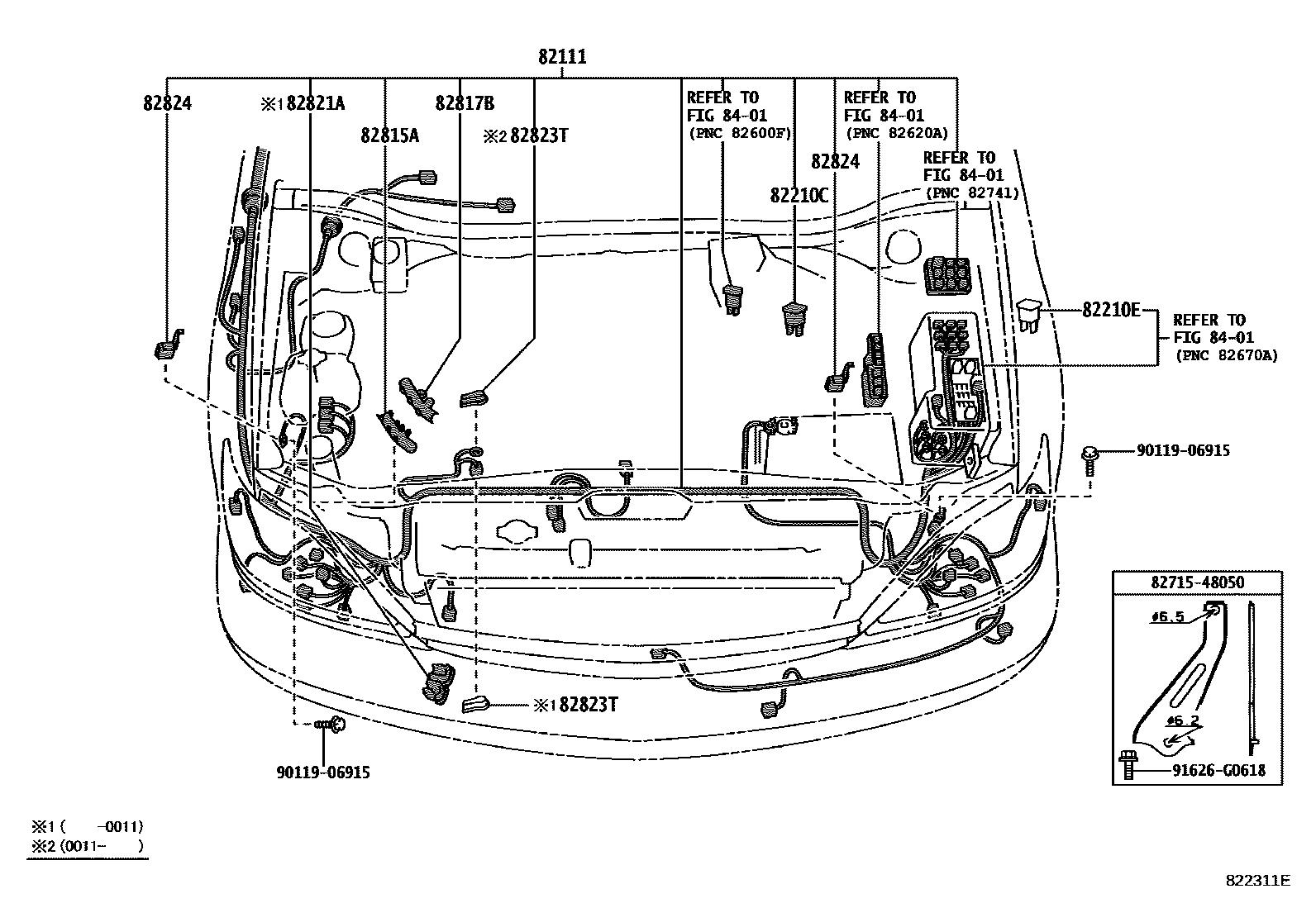

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-48010i¥106,000199712-200011

main82111-48020i¥106,000199712-200011

main82111-48030i¥92,800199712-200011

sub82111-48040¥106,000

main82111-48031i¥114,000200011

main82111-48040i¥106,000199712-200011

main82111-48041i¥114,000200011

main82111-48050i¥106,000199712-200011

main82111-48080i¥106,000199712-200011

main82111-48080i¥106,000199904

main82111-48081i¥114,000200011

main82111-48090i¥106,000199712-200011

main82111-48091i¥114,000200011

main82111-48110i¥106,000199904

main82111-48110i¥106,000199712-200011

main82111-48111i¥114,000200011

main82111-48120i¥119,000199712-200011

main82111-48121i¥114,000200011

main82111-48130i¥119,000199712-200011

main82111-48131i¥114,000200011

main82111-48141i¥126,000200011

main82111-48151i¥126,000200011

82210CFUSIBLE LINK

main90982-08202i¥700199712

main90982-08228i¥480199712

main90982-08254i¥440199712

main90982-08283i¥440199712

main90982-08285i¥440199712

82210EFUSIBLE LINK

main90982-08285i¥440199712

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-48010i¥1,050199712

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2A450i¥1,190199712

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-48010i¥1,060199712

82821ACOVER, CONNECTOR

main82821-33150i¥160200001-200011

82823TCAP, ALTERNATOR TERMINAL

main82823-22050i¥390199712-200011

main82823-22080i¥920200011

82824CONNECTOR, WIRING HARNESS

main82824-48020i¥1,990199712

8401

8271548050BRACKET,WIRING HARNESS CLAMP

main82715-48050¥720

9011906915

main90119-06915¥60

91626G0618

main91626-G0618¥110

13 parts on this diagram · 12 diagrams in section
