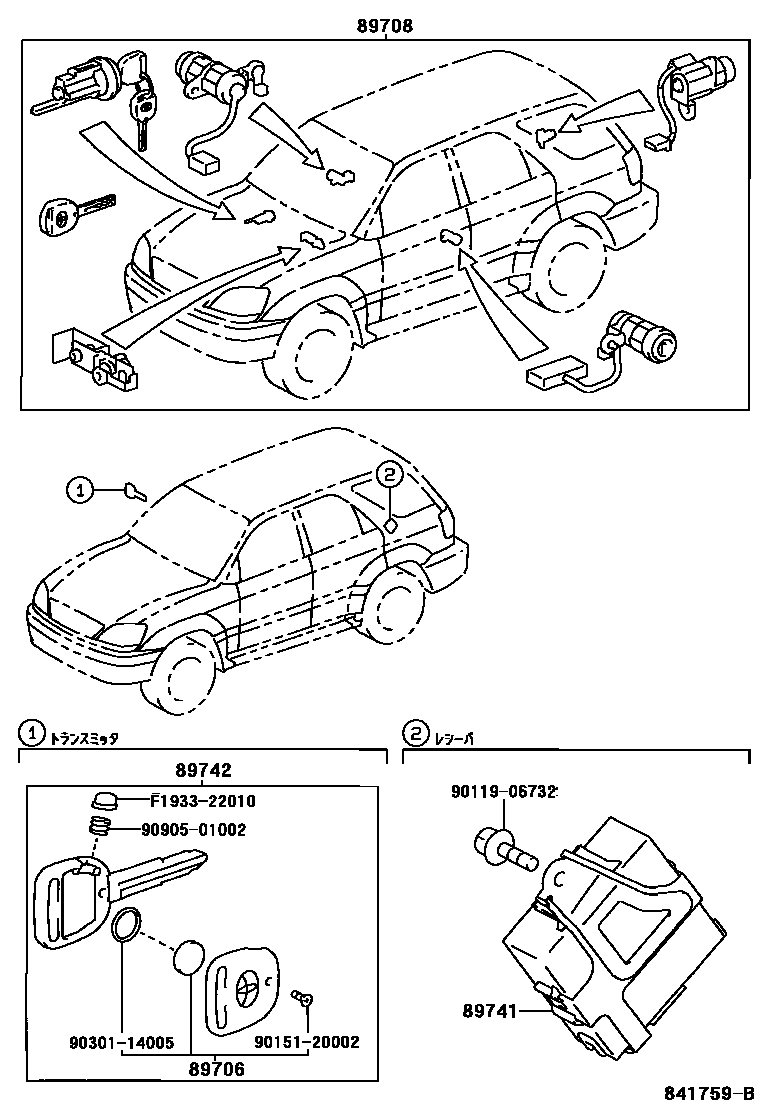

Toyota HARRIER — WIRELESS DOOR LOCK

0001 1 0002 1

89706BATTERY SET, TRANSMITTER

main89706-50010iACU1#,MCU1#,SXU1#¥710199712

sub89745-48020¥440

sub90151-20002

sub90301-14005¥240

89708CYLINDER SET, WIRELESS DOOR LOCK

main89704-48010iMCU1#,SXU1#¥32,300199712-200011

main89704-48110iACU1#,MCU1#¥18,800200011

89741RECEIVER, DOOR CONTROL

main89741-48010iACU1#,MCU1#,SXU1#¥30,900199712

89742TRANSMITTER, DOOR CONTROL

main89742-48020iACU1#,MCU1#,SXU1#¥16,200199712

9011906732

main90119-06732¥190

9015120002

main90151-20002

9030114005

main90301-14005¥240

9090501002

main90905-01002¥130

F193322010

mainF1933-22010¥110

9 parts on this diagram · 2 diagrams in section
