Toyota HARRIER — V-BELT

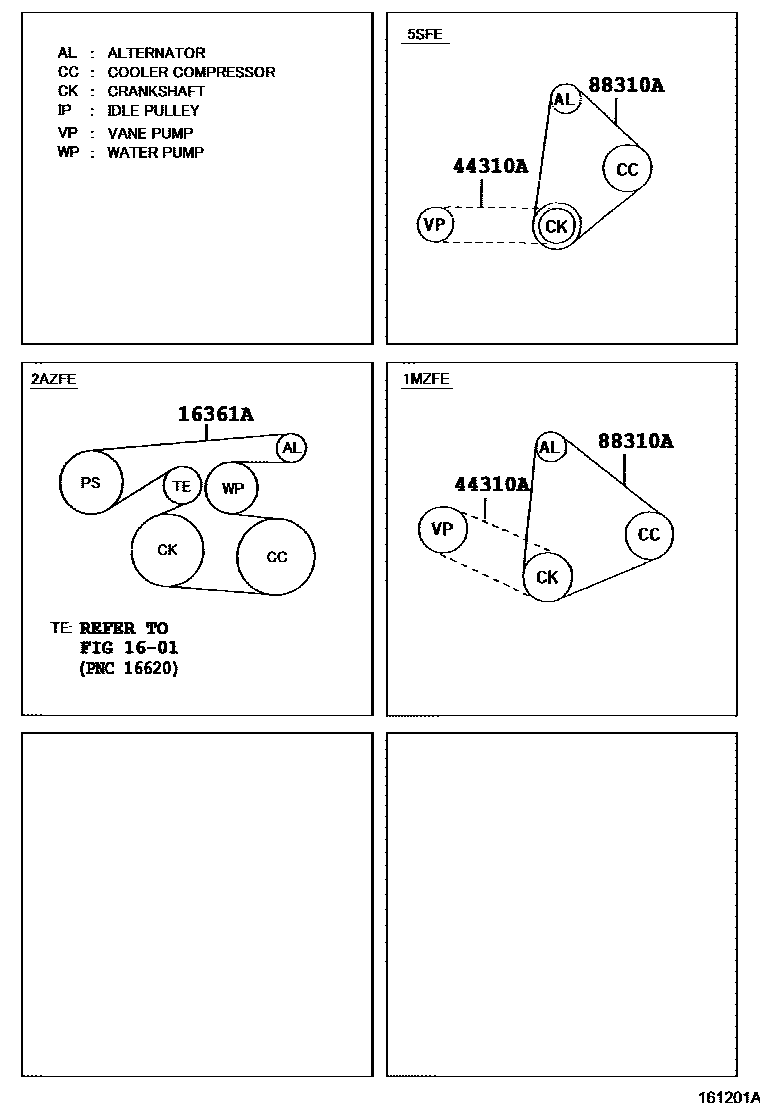

Parts diagram

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02503i¥10,200200011

sub90916-02599¥8,000

44310ABELT, V(FOR VANE PUMP)

main90080-91054i¥1,840199712-200011

main90080-91088i¥2,750199712-200011

main90080-91088i¥2,750200011

main99363-20750i¥1,450199712-200011

sub99363-30750¥1,450

main99363-80750i¥1,450199712-200007

sub99363-20750¥1,450

main99364-80880i¥2,170199712-200011

sub99364-90880¥2,170

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91094i¥5,100199712-199807

main90080-91147i199811-200011

main90080-91147i200011

main90916-02373i¥5,100199712-199807

main99365-81090i¥3,310199712-200011

sub99365-91090¥3,310

main99366-21040i¥3,970199807-199811

sub99366-31040¥3,970

main99366-21040i¥3,970200011

sub99366-31040¥3,970

4 parts on this diagram · 1 diagram in section
