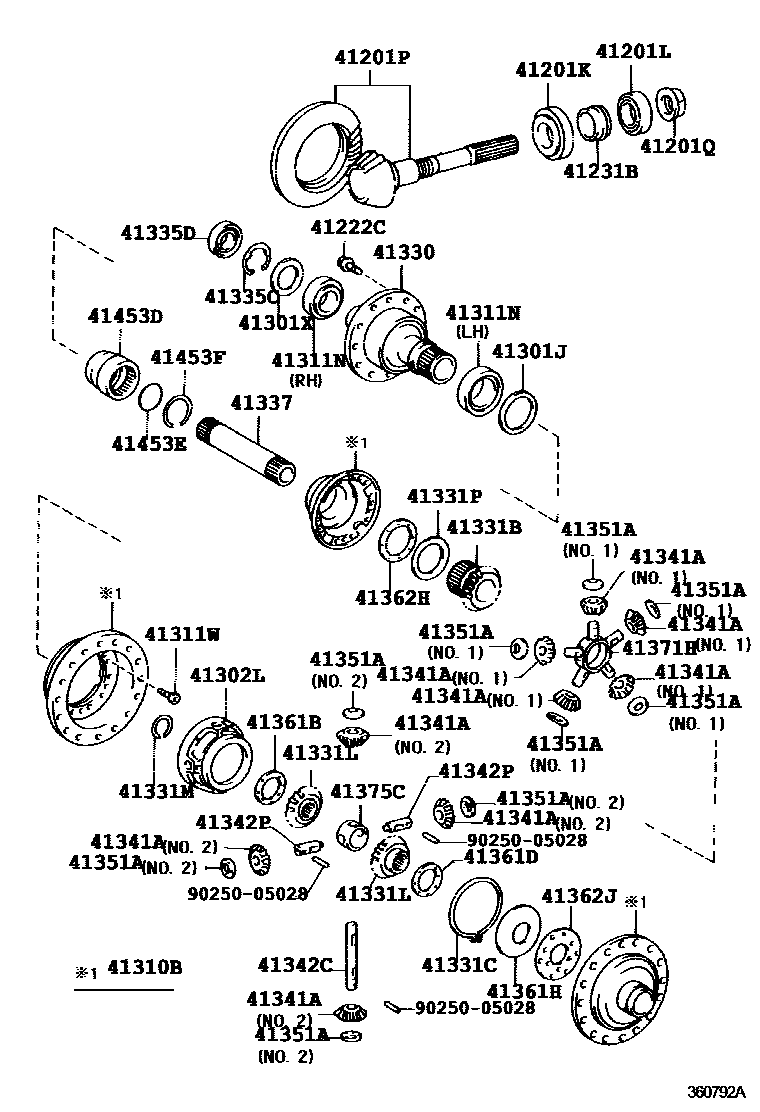

Toyota HARRIER — TRANSFER GEAR
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41302LCASE SUB-ASSY, DIFFERENTIAL, NO.2
41310BGEAR ASSY, CENTER DIFFERENTIAL PLANETARY
41311NBEARING, TAPERED ROLLER (FOR CENTER DIFFERENTIAL CASE)
41311WSCREW
41330COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
41331BGEAR, CENTER DIFFERENTIAL SIDE
41331CRING, SHAFT SNAP(FOR PINION SHAFT SPACER)
41331LGEAR, CENTER DIFFERENTIAL PLANETARY RING
41331MRING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
41331PWASHER, CONICAL SPRING
41335CRING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
41337SHAFT, DIFFERENTIAL SIDE GEAR INTERMEDIATE, NO.2
41341APINION, CENTER DIFFERENTIAL
41342CSHAFT, CENTER DIFFERENTIAL PINION
41342PSHAFT, DIFFERENTIAL PINION
41351AWASHER, CENTER DIFFERENTIAL PINION TRUST
41361BWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361DWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2
41361HWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
41362HWASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.2, LH
41362JWASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.2, RH
41371HSPIDER, DIFFERENTIAL
41375CHOLDER, CENTER DIFFERENTIAL PINION SHAFT
41453DSLEEVE, CENTER DIFFERENTIAL LOCK
41453ERING, O
41453FRING, SHAFT SNAP
9025005028
36 parts on this diagram · 1 diagram in section
