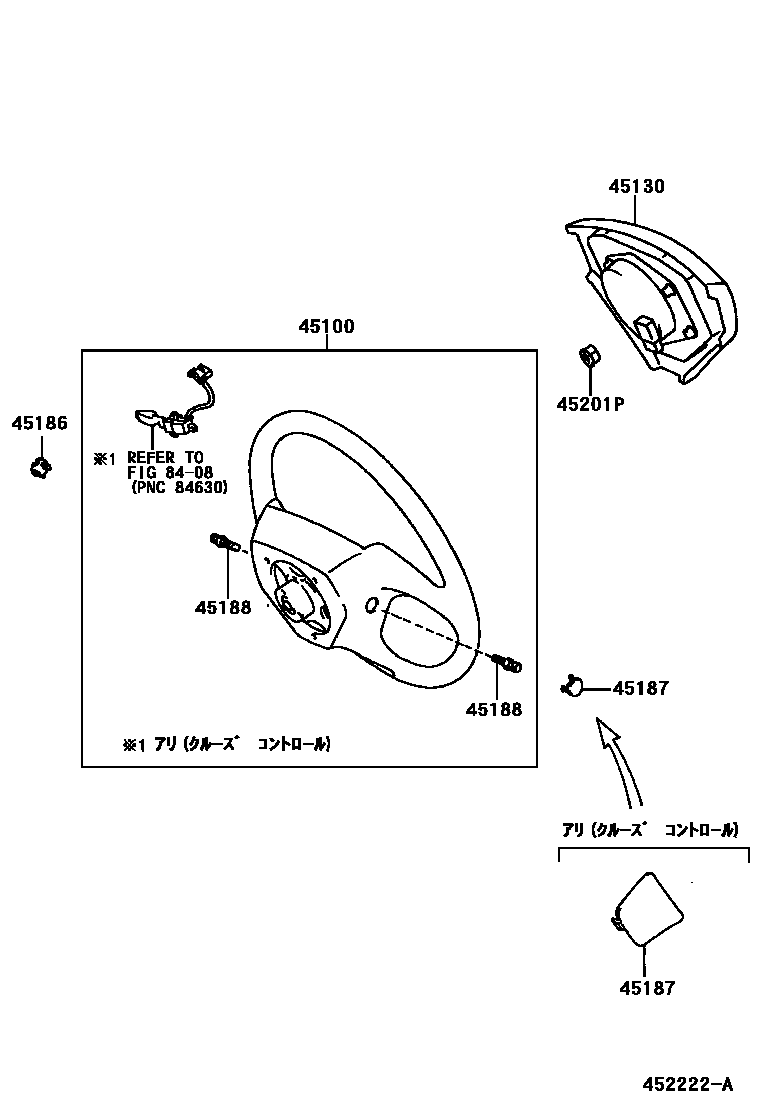

Toyota HARRIER — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48010-B0iSXU1#199712-200011

sub45100-48010¥31,100

main45100-48010-E0iSXU1#199712-200011

sub45100-48010¥31,100

main45100-48020-B0iSXU1#199712-200011

sub45100-48010¥31,100

main45100-48020-E0iSXU1#199712-200011

sub45100-48010¥31,100

main45100-48040-B0iMCU1#199712-200011

sub45100-48010¥31,100

main45100-48040-E0iMCU1#199712-200011

sub45100-48010¥31,100

main45100-48050-B0iMCU1#199712-200011

sub45100-48020¥66,800

main45100-48050-E0iMCU1#199712-200011

sub45100-48020¥66,800

main45100-48060-C0iMCU1#200011

sub45100-48060¥63,500

main45100-48060-E0iMCU1#200011

sub45100-48060¥63,500

main45100-48080-C0iMCU1#200011

main45100-48090-C0iMCU1#200011

sub45100-48090¥63,500

main45100-48090-E0iMCU1#200011

sub45100-48090¥63,500

main45100-48100-C0iMCU1#200011

sub45100-48100¥74,000

main45100-48100-E0iMCU1#200011

sub45100-48100¥74,000

main45100-48200-C0iACU1#200011

sub45100-48200¥63,500

main45100-48200-E0iACU1#200011

sub45100-48200¥63,500

main45100-48210-C0iACU1#200011

main45100-48220-C0iACU1#200011

sub45100-48220¥63,500

main45100-48220-E0iACU1#200011

sub45100-48220¥63,500

45130BUTTON ASSY, HORN

main45130-48010-B0iMCU1#,SXU1#199712-200011

SHADOW GRAY,TRIM1#

sub45130-48060¥77,000

main45130-48010-E0iMCU1#,SXU1#199712-200011

SANDAL WOOD,TRIM0#

sub45130-48060¥77,000

main45130-48030-C0iACU1#,MCU1#200011

BLACK,TRIM2#

main45130-48030-E0iACU1#,MCU1#200011

SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-44010-B2iMCU1#,SXU1#199712-200011

SHADOW GRAY,TRIM1#

sub45186-44010¥110

main45186-44010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

sub45186-44010¥110

main45186-44010-E4iACU1#,MCU1#,SXU1#199712

SANDAL WOOD,TRIM0#

sub45186-44010¥110

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-44010-B2iMCU1#,SXU1#199712-200011

SHADOW GRAY,TRIM1#

sub45186-44010¥110

main45186-44010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

sub45186-44010¥110

main45186-44010-E4iACU1#,MCU1#,SXU1#199712

SANDAL WOOD,TRIM0#

sub45186-44010¥110

main45187-48010-C0iMCU1#200011

sub45187-48010¥350

main45187-48010-E0iMCU1#200011

sub45187-48010¥350

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007iACU1#,MCU1#,SXU1#¥130199712

45201PNUT, STEERING WHEEL SET

main90179-12071iACU1#,MCU1#,SXU1#¥130199712

8408

7 parts on this diagram · 1 diagram in section
