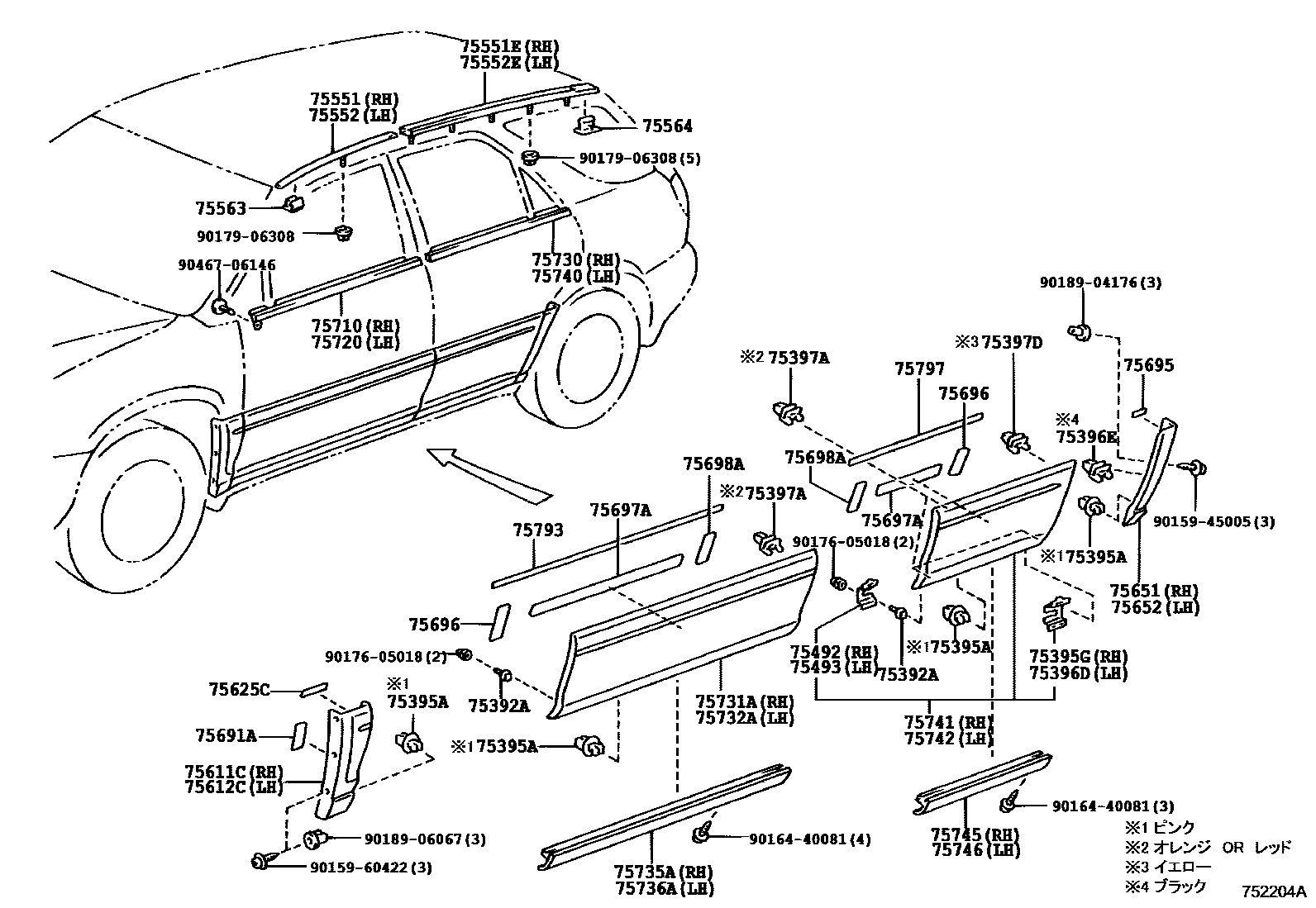

Toyota HARRIER — SIDE MOULDING
75392ARETAINER, OUTSIDE MOULDING, NO.1
75395ACLIP, OUTSIDE MOULDING, NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75396DCLIP, OUTSIDE MOULDING, NO.2
75396ECLIP, OUTSIDE MOULDING, NO.2
75397ACLIP, OUTSIDE MOULDING, NO.3
75397DCLIP, OUTSIDE MOULDING, NO.3
75492RETAINER, OUTSIDE MOULDING, NO.5
75493RETAINER, OUTSIDE MOULDING, NO.4
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1
75564RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2
75611CMOULDING, FRONT FENDER, OUTSIDE RH
YELLOW SILVER,057
YELLOW SILVER,057
75612CMOULDING, FRONT FENDER, OUTSIDE LH
DK.GRAY M.,202
YELLOW SILVER,057
YELLOW SILVER,057
75625CPAD, FRONT FENDER OUTSIDE MOULDING, UPPER
75651MOULDING, QUARTER, OUTSIDE RH
YELLOW SILVER,057
YELLOW SILVER,057
75652MOULDING, QUARTER, OUTSIDE LH
YELLOW SILVER,057
YELLOW SILVER,057
75691APAD, FRONT FENDER OUTSIDE MOULDING, RH
75695PAD, QUARTER OUTSIDE MOULDING
75696PAD, BODY OUTSIDE MOULDING, NO.1
75697APAD, BODY OUTSIDE MOULDING, NO.2
L=680
L=370
75698APAD, BODY OUTSIDE MOULDING, NO.3
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
LT.GRAIGE ME.,4P2
YELLOW SILVER,057
YELLOW SILVER,057
NIGHT BLUE M,8L4
75732AMOULDING, FRONT DOOR, OUTSIDE LH
LT.GRAIGE ME.,4P2
YELLOW SILVER,057
YELLOW SILVER,057
NIGHT BLUE M,8L4
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
LT.GRAIGE ME.,4P2
YELLOW SILVER,057
YELLOW SILVER,057
NIGHT BLUE M,8L4
75742MOULDING, REAR DOOR, OUTSIDE LH
LT.GRAIGE ME.,4P2
YELLOW SILVER,057
YELLOW SILVER,057
NIGHT BLUE M,8L4
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75793PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75797PAD, REAR DOOR OUTSIDE MOULDING, UPPER
9015945005
9015960422
9016440081
9017605018
9017906308
9018904176
9018906067
9046706146
47 parts on this diagram · 1 diagram in section
