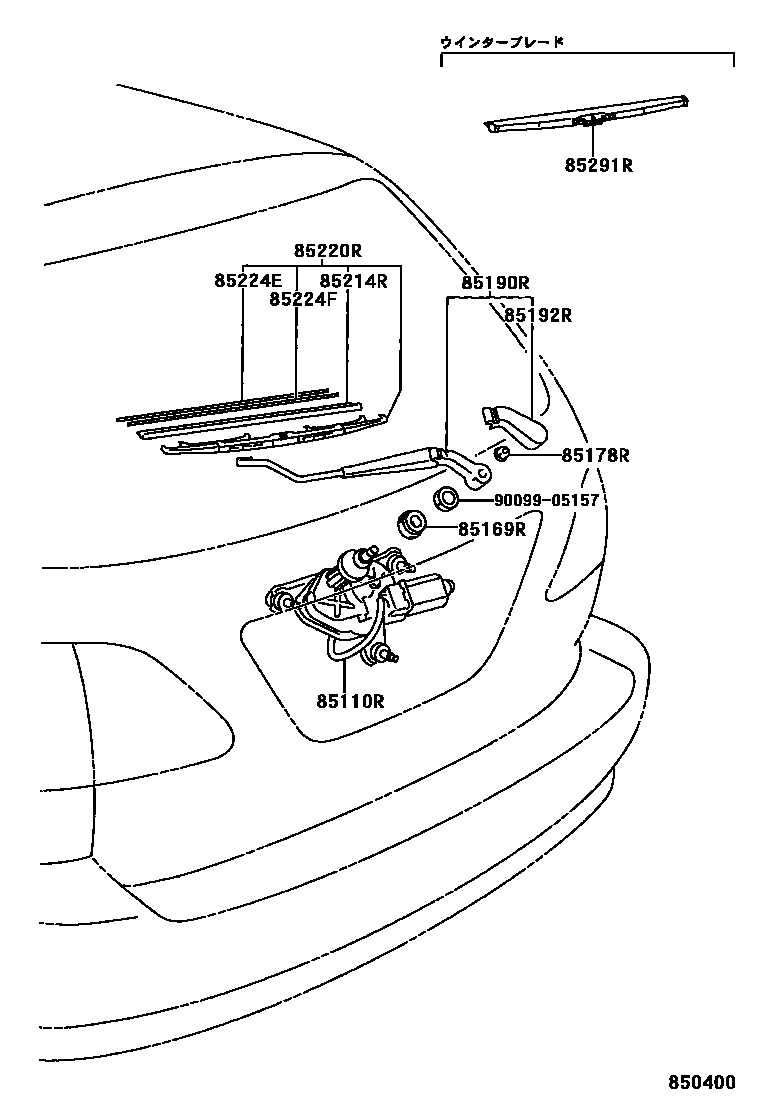

Toyota HARRIER — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-48010iACU1#,MCU1#,SXU1#¥27,300199712

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-48010iACU1#,MCU1#,SXU1#¥0199712

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iACU1#,MCU1#,SXU1#¥70199712

85190RARM ASSY, REAR WIPER

main85241-48010iACU1#,MCU1#,SXU1#¥3,150199712

85192RCOVER, REAR WIPER ARM

main85292-44020iACU1#,MCU1#,SXU1#¥250199712

85214RRUBBER, REAR WIPER

main85214-10100iACU1#,MCU1#,SXU1#¥650199712

85220RBLADE ASSY, REAR WIPER

main85242-48010iACU1#,MCU1#,SXU1#¥2,090199712

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-48020iACU1#,MCU1#,SXU1#¥480199712

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-48020iACU1#,MCU1#,SXU1#¥480199712

85291RBLADE,REAR WIPER, WINTER

main85291-60060iACU1#,MCU1#,SXU1#¥3,960199712

sub85291-44080¥3,600

9009905157

main90099-05157¥220

11 parts on this diagram · 1 diagram in section
