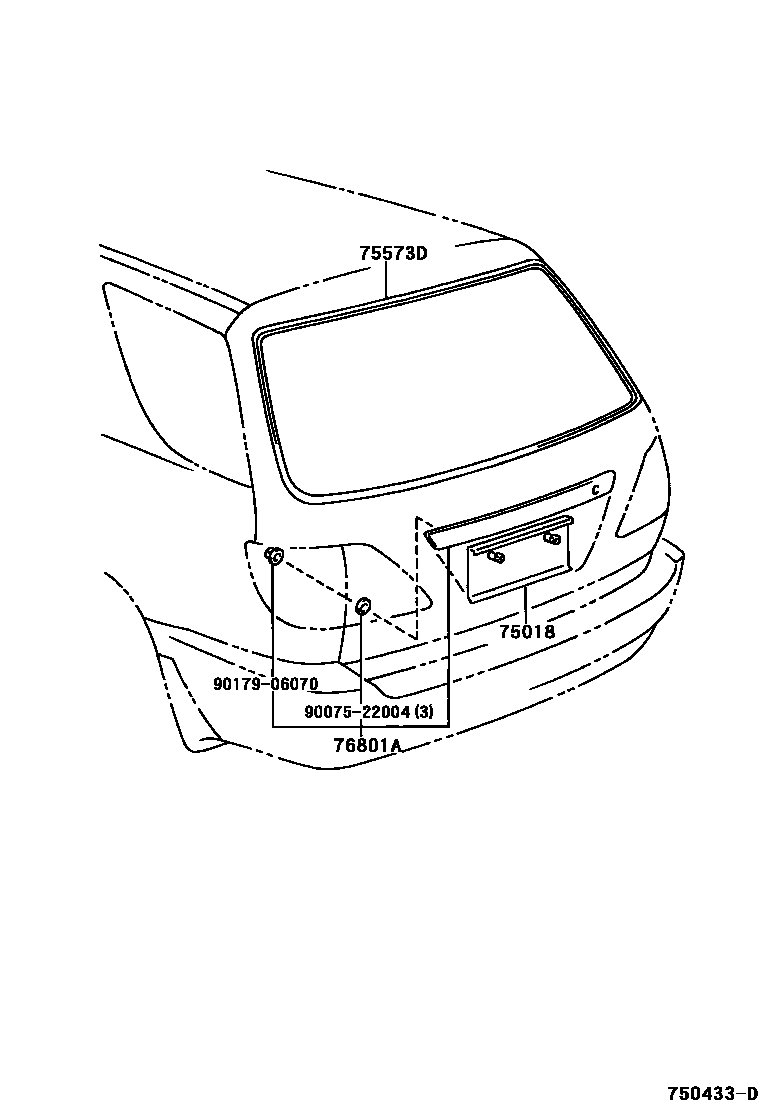

Toyota HARRIER — REAR MOULDING

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-33020iMCU1#,SXU1#¥3,500199712-199806

main75010-48020iACU1#,MCU1#,SXU1#¥3,500199806

75573DMOULDING, BACK WINDOW, OUTSIDE

main64813-48010iACU1#,MCU1#,SXU1#¥2,300199712

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-48010-A0iMCU1#,SXU1#199712-200011

WHITE PM.,057

sub76801-48010¥13,600

main76801-48010-A1iMCU1#,SXU1#199904-200011

sub76801-48010¥13,600

main76801-48010-A2iACU1#,MCU1#199910-200206

sub76801-48010¥13,600

main76801-48010-A2iACU1#,MCU1#200011-200112

sub76801-48010¥13,600

main76801-48010-A3iACU1#,MCU1#200011

WHITE PEARL CS.,065

sub76801-48010¥13,600

main76801-48010-A4iACU1#,MCU1#200108-200302

sub76801-48010¥13,600

main76801-48010-B0iACU1#,MCU1#,SXU1#199712

SILVER ME.,1C0

sub76801-48010¥13,600

main76801-48010-B1iMCU1#,SXU1#199904-200011

sub76801-48010¥13,600

main76801-48010-B2iMCU1#,SXU1#199910-200011

sub76801-48010¥13,600

main76801-48010-B2iACU1#,MCU1#200011

DK.GRAY,1C6

sub76801-48010¥13,600

main76801-48010-C0iACU1#,MCU1#,SXU1#199712

BLACK,202

sub76801-48010¥13,600

main76801-48010-D0iMCU1#,SXU1#199712-200011

RED MC.,3M8

sub76801-48010¥13,600

main76801-48010-E0iACU1#,MCU1#,SXU1#199712

BEIGE SF.,4P2

sub76801-48010¥13,600

main76801-48010-G0iMCU1#,SXU1#199712-200011

GREEN MC.,6R1

sub76801-48010¥13,600

main76801-48010-J0iMCU1#,SXU1#199712-200011

DK.BLUE MC.,8L4

sub76801-48010¥13,600

main76801-48010-J2iACU1#,MCU1#200011

DK.BLUE M.M.,8P4

sub76801-48010¥13,600

main76801-48010-J3iACU1#,MCU1#200011

GRAYISH BLUE ME.,8P6

sub76801-48010¥13,600

9007522004

main90075-22004¥160

9017906070

main90179-06070¥180

5 parts on this diagram · 1 diagram in section
