Toyota HARRIER — RADIATOR GRILLE

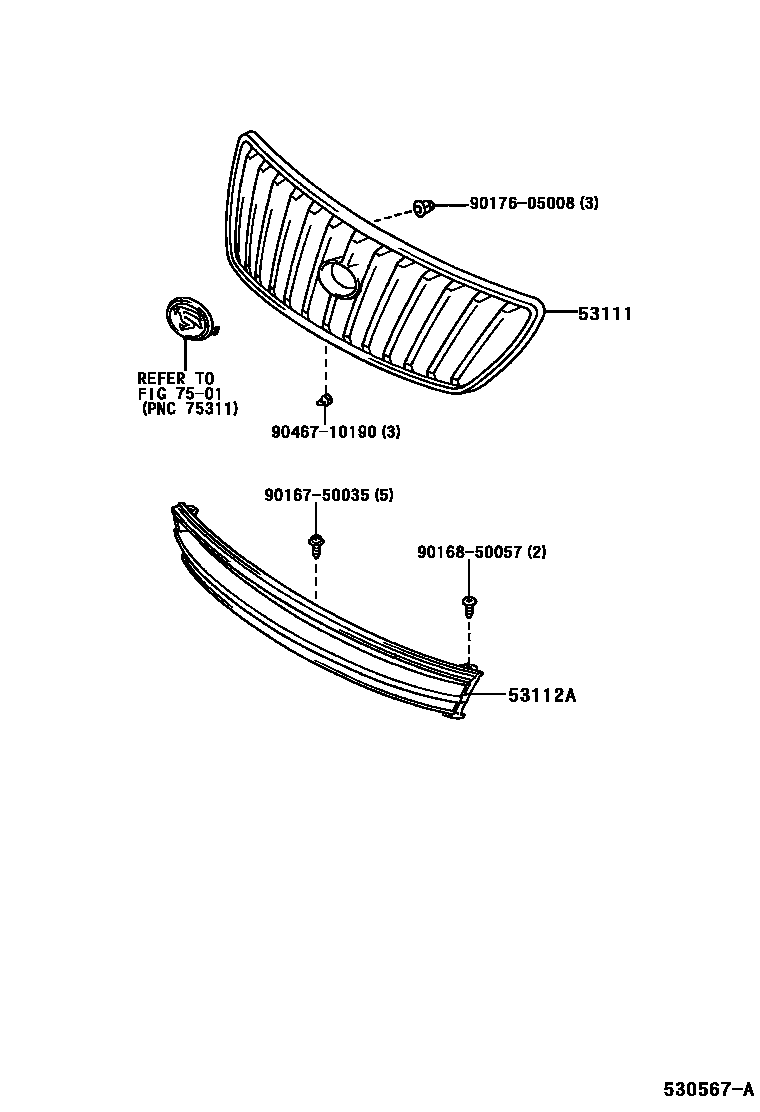

Parts diagram
53111GRILLE, RADIATOR
main53111-48010i¥31,300199712-200011
main53111-48020i¥31,300200011
53112AGRILLE, RADIATOR, LOWER
main53112-48010-A0i199904-200011
sub53112-48010¥17,100
main53112-48010-A1i200011
WHITE PEARL CS.,065
sub53112-48010¥17,100
main53112-48010-A2i200201-200206
sub53112-48010¥17,100
main53112-48010-A2i200011-200112
sub53112-48010¥17,100
main53112-48010-A3i200108-200302
sub53112-48010¥17,100
main53112-48010-B0i199712-200011
LT.GRAIGE ME.,4P2
sub53112-48010¥17,100
main53112-48010-B1i199904-200011
sub53112-48010¥17,100
main53112-48010-B2i200011
SILVER ME.,1C0
sub53112-48010¥17,100
main53112-48010-B3i200011
DK.GRAY M.M.,1C6
sub53112-48010¥17,100
main53112-48010-B3i199910-200011
sub53112-48010¥17,100
main53112-48010-C0i200011
BLACK,202
sub53112-48010¥17,100
main53112-48010-D0i199712-200003
DK. GRAY M.,202
sub53112-48010¥17,100
main53112-48010-D1i199712-200011
RED MC.,3M8
sub53112-48010¥17,100
main53112-48010-D3i200003-200011
DK. GRAY M.,202
sub53112-48010¥17,100
main53112-48010-E0i200011
BEIGE SF.,4P2
sub53112-48010¥17,100
main53112-48010-G0i199712-200003
YELLOW SILVER,057
sub53112-48010¥17,100
main53112-48010-G3i200003-200011
YELLOW SILVER,057
sub53112-48010¥17,100
main53112-48010-H0i199712-200003
GRAY ME.,6R1
sub53112-48010¥17,100
main53112-48010-H1i200003-200011
GRAY ME.,6R1
sub53112-48010¥17,100
main53112-48010-J0i199712-200003
GRAY ME.,1C0
sub53112-48010¥17,100
main53112-48010-J1i199712-200011
NIGHT BLUE M,8L4
sub53112-48010¥17,100
main53112-48010-J2i200011
DK.BLUE M.M.,8P4
sub53112-48010¥17,100
main53112-48010-J3i200011
GRAYISH BLUE ME.,8P6
sub53112-48010¥17,100
main53112-48010-J4i200003-200011
GRAY ME.,1C0
sub53112-48010¥17,100
7501
9016750035
main90167-50035¥90
9016850057
main90168-50057¥120
9017605008
main90176-05008¥130
9046710190
main90467-10190¥120

7 parts on this diagram · 1 diagram in section
