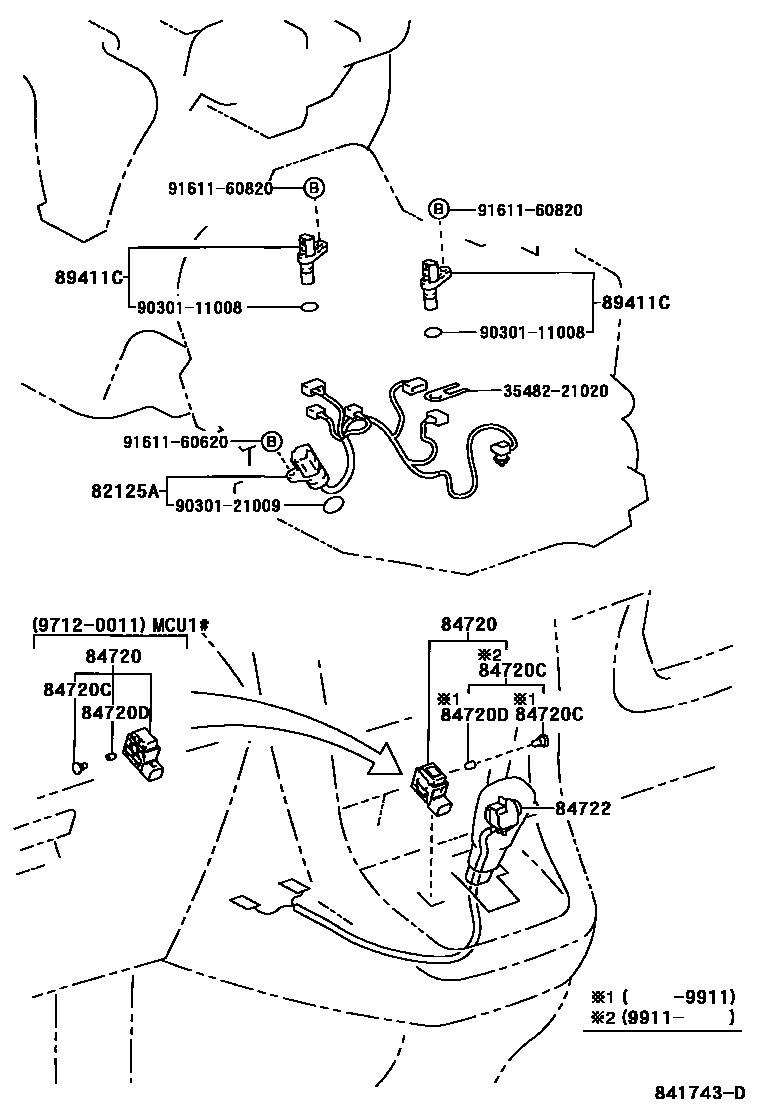

Toyota HARRIER — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-21030iMCU1#,SXU1#¥2,630199712-200111

sub82125-28180¥2,840

main82125-28180iACU1#,MCU1#¥2,840200011-200111

84720SWITCH ASSY, PATTERN SELECT

main84720-48010iACU1#,MCU1#¥4,270199712-200011

main84720-50050iMCU1#¥4,530199712-200011

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10310iSXU1#¥310199712-199911

main84999-10820iMCU1#¥390199712-200011

main90010-01039iACU1#,MCU1#¥270199911-200011

84720DCAP, PATTERN SELECT SWITCH

main84998-10670iMCU1#¥230199712-200011

main84998-10740iSXU1#¥240199712-199911

84722SWITCH, TRANSMISSION CONTROL

main84722-48010-B0iMCU1#,SXU1#199712-200011

SHADOW GRAY,TRIM1#

sub84722-48010¥3,140

main84722-48010-E0iMCU1#,SXU1#199712-200011

SANDAL WOOD,TRIM0#

sub84722-48010¥3,140

main84722-48040-C0iACU1#,MCU1#200011

BLACK,TRIM2#

sub84722-48040¥3,110

main84722-48040-E0iACU1#,MCU1#200011

SANDAL WOOD,TRIM0#

sub84722-48040¥3,110

89411CSENSOR, SPEED

main89411-33010iACU1#,MCU1#,SXU1#¥6,000199712

sub89413-24010¥6,000

main89413-24010iACU1#,MCU1#,SXU1#¥6,000199712

3548221020VALVE, GOVERNOR

main35482-21020¥130

9030111008

main90301-11008¥160

9030121009

main90301-21009¥170

9161160620

main91611-60620¥90

9161160820

main91611-60820¥200

11 parts on this diagram · 1 diagram in section
