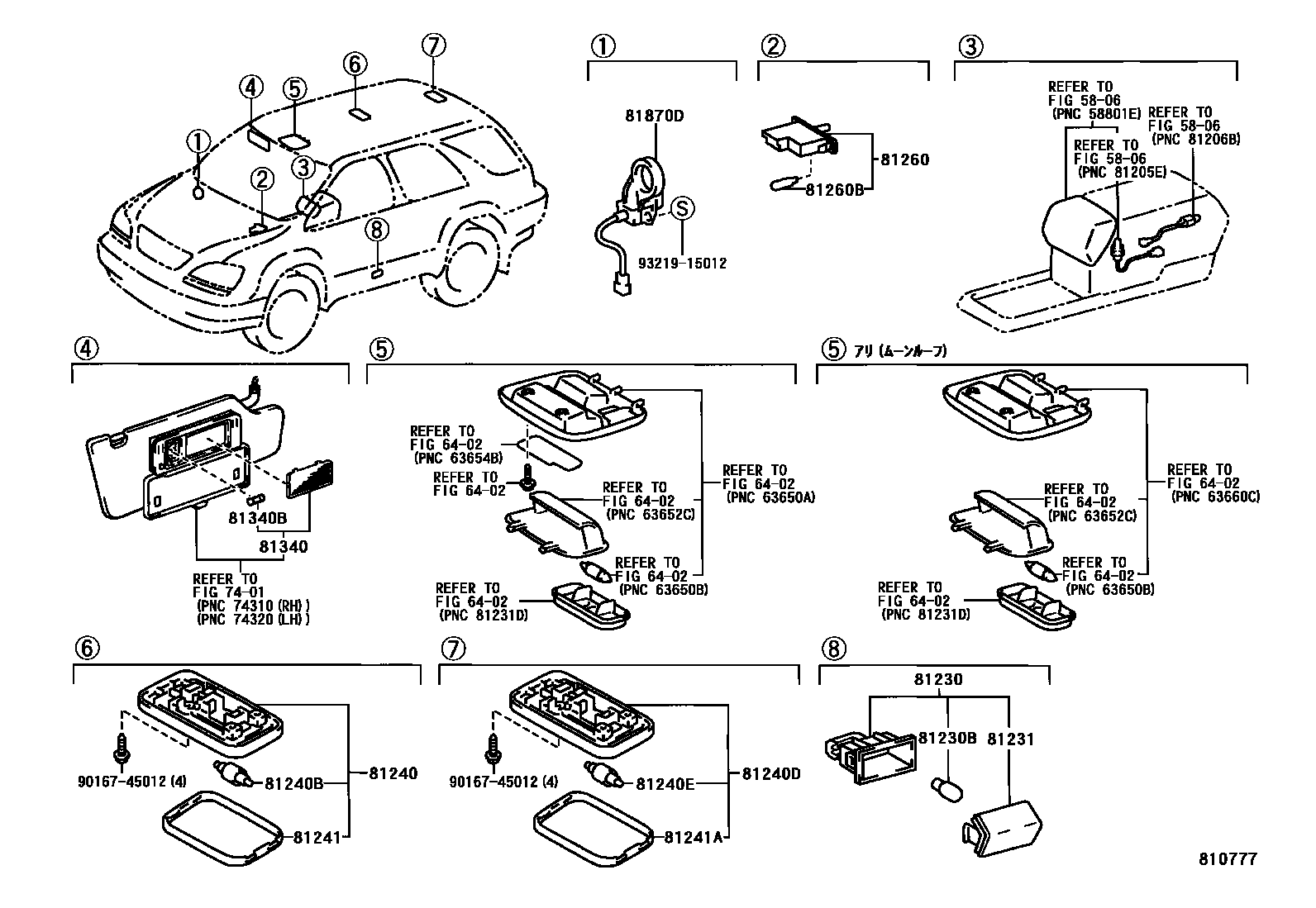

Toyota HARRIER — INTERIOR LAMP
5806
6402
7401
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
�P�Q�u�@�T�v
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
�P�Q�u�@�W�v
81240DLAMP ASSY, ROOM, NO.2
81240EBULB, ROOM LAMP, NO.2
�P�Q�u�@�W�v
81241LENS, ROOM LAMP, NO.1
81241ALENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
�P�Q�u�@�P�D�Q�v�@�\�P�b�g����
81340LAMP ASSY, VANITY
IVORY,TRIM0#,�E��
LT.GRAY,TRIM2#,�E��
BLUE GRAY,TRIM1#,�E��
MD.GRAY,TRIM1#,�E��
IVORY,TRIM0#,����
LT.GRAY,TRIM2#,����
BLUE GRAY,TRIM1#,����
MD.GRAY,TRIM1#,����
81340BBULB (FOR VANITY LAMP)
�P�Q�u�@�P�D�T�v
81870DLAMP ASSY, KEY CYLINDER
9016745012
9321915012
19 parts on this diagram · 1 diagram in section
