Toyota HARRIER — IGNITION COIL & SPARK PLUG / GLOW PLUG

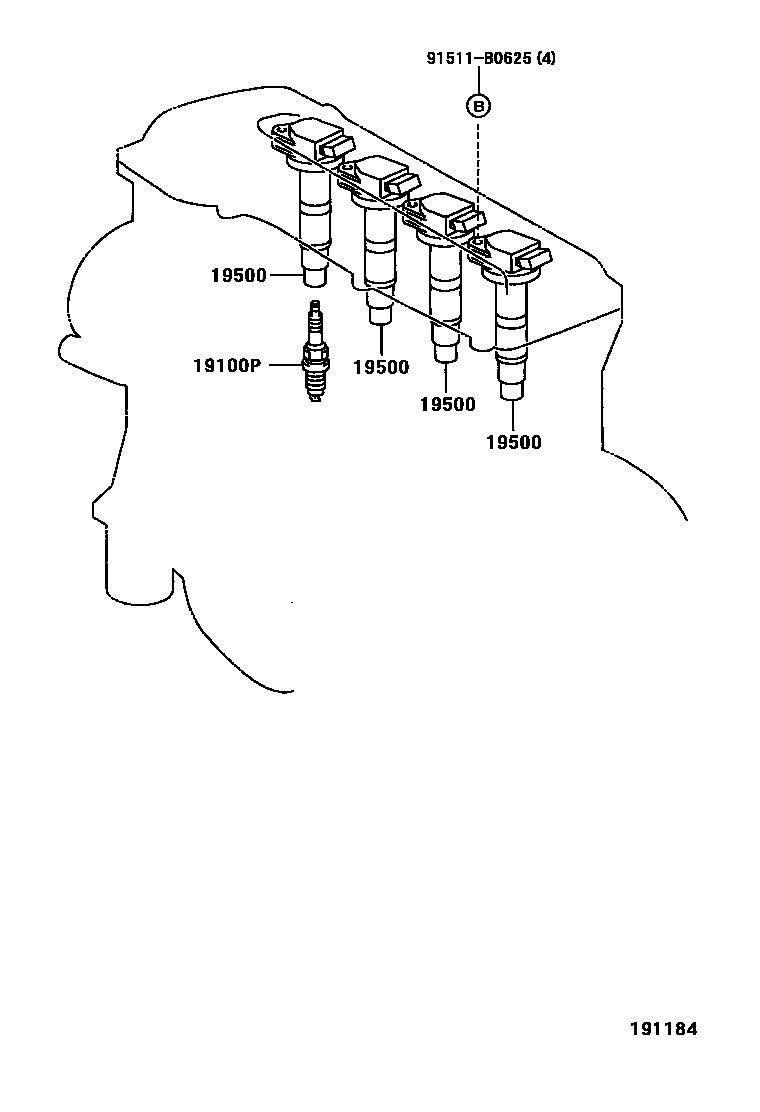

Parts diagram

19100PPLUG, SPARK

main90919-01184i¥520200011

main90919-01194i¥1,700199712

main90919-01195i¥1,700199712

main90919-01210i¥1,700199712-200302

main90919-01211i¥1,700199712-200302

19500COIL ASSY, IGNITION

main90919-02234i¥12,000199712

main90919-02243i¥12,000200011-200102

sub90919-02244¥12,000

main90919-02243i¥12,000200102

sub90919-02244¥12,000

main90919-02244i¥12,000200102

sub90919-02266¥10,000

91511B0625

main91511-B0625¥100

3 parts on this diagram · 3 diagrams in section
