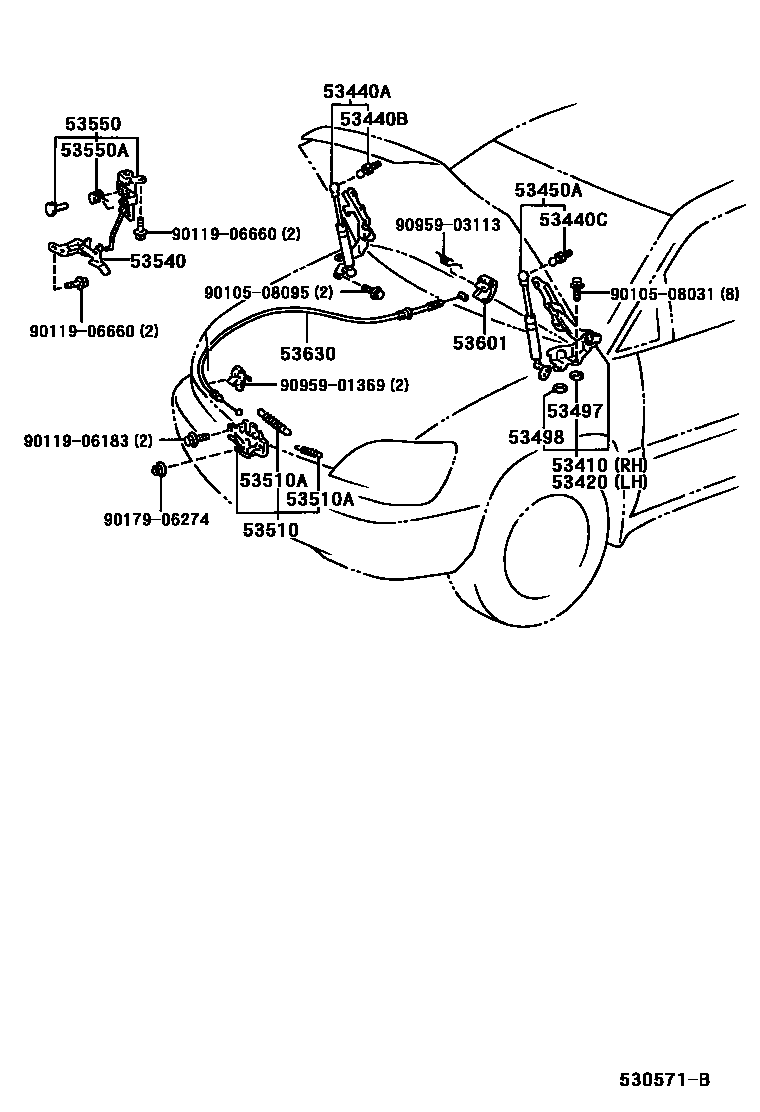

Toyota HARRIER — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53440BBOLT, HOOD SUPPORT, NO.1
53440CBOLT, HOOD SUPPORT, NO.2
53450ASUPPORT ASSY, HOOD, LH
53497PAD, HOOD HINGE, NO.1
53498PAD, HOOD HINGE, NO.2
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
53540LEVER ASSY, AUXILIARY CATCH RELEASE
53550HOOK ASSY, HOOD AUXILIARY CATCH
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
9010508031
9010508095
9011906183
9011906660
9017906274
9095901369
9095903113
22 parts on this diagram · 1 diagram in section
