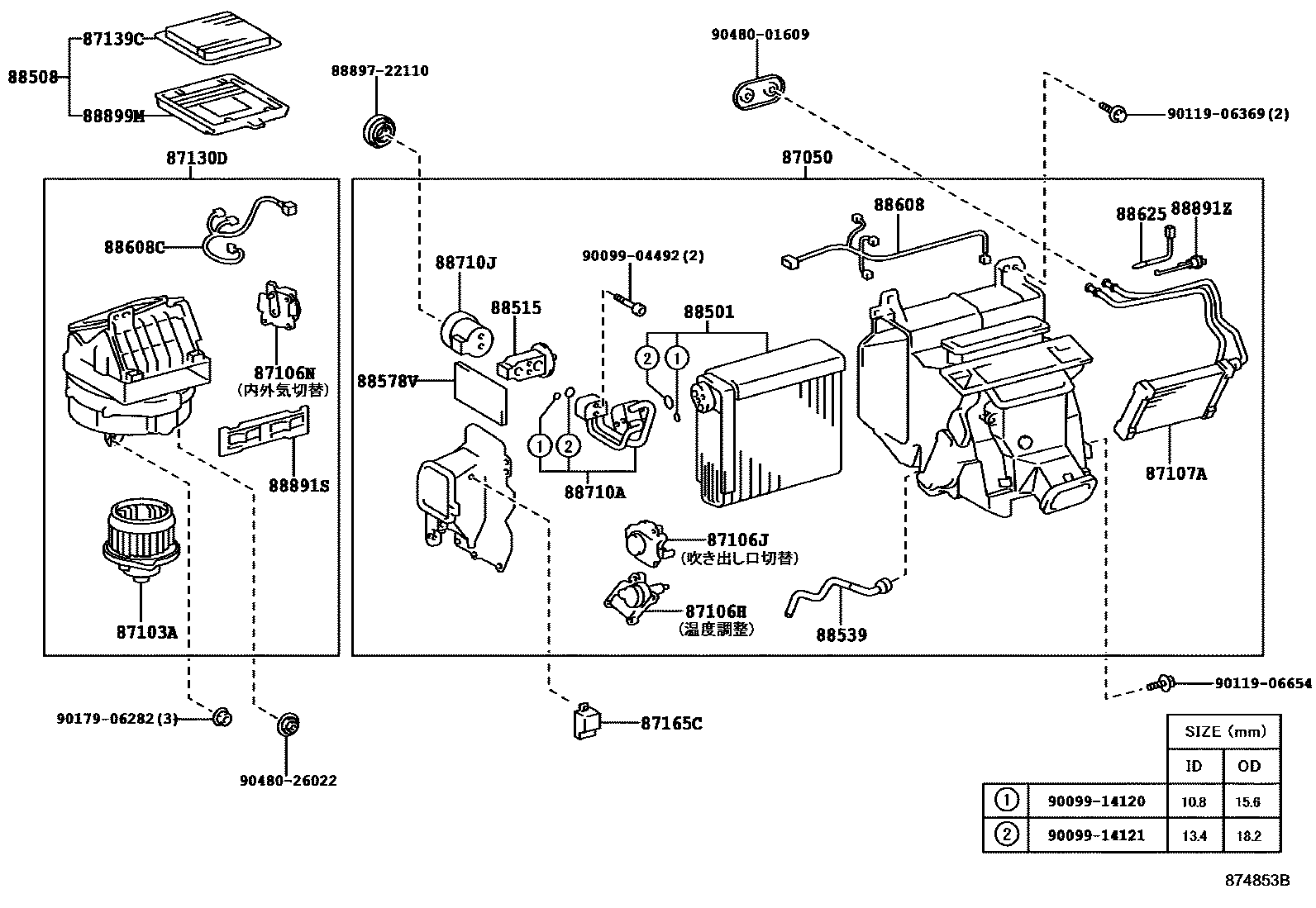

Toyota HARRIER — HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88508FILTER SUB-ASSY, CLEAN AIR
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88578VPACKING, COOLING UNIT, NO.3
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88625THERMISTOR, COOLER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88710JTUBE, AIR CONDITIONER CONNECTOR
88891SCOVER, COOLER, NO.1
88891ZBRACKET, COOLER THERMISTOR
88899MPLATE, COVER(FOR AIR FILTER)
8889722110VALVE, COOLER MAGNET
main88897-22110
9009904492
9009914120
9009914121
main90099-14121
9011906369
9011906654
9017906282
9048001609
9048026022
31 parts on this diagram · 1 diagram in section
