Toyota HARRIER — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1603

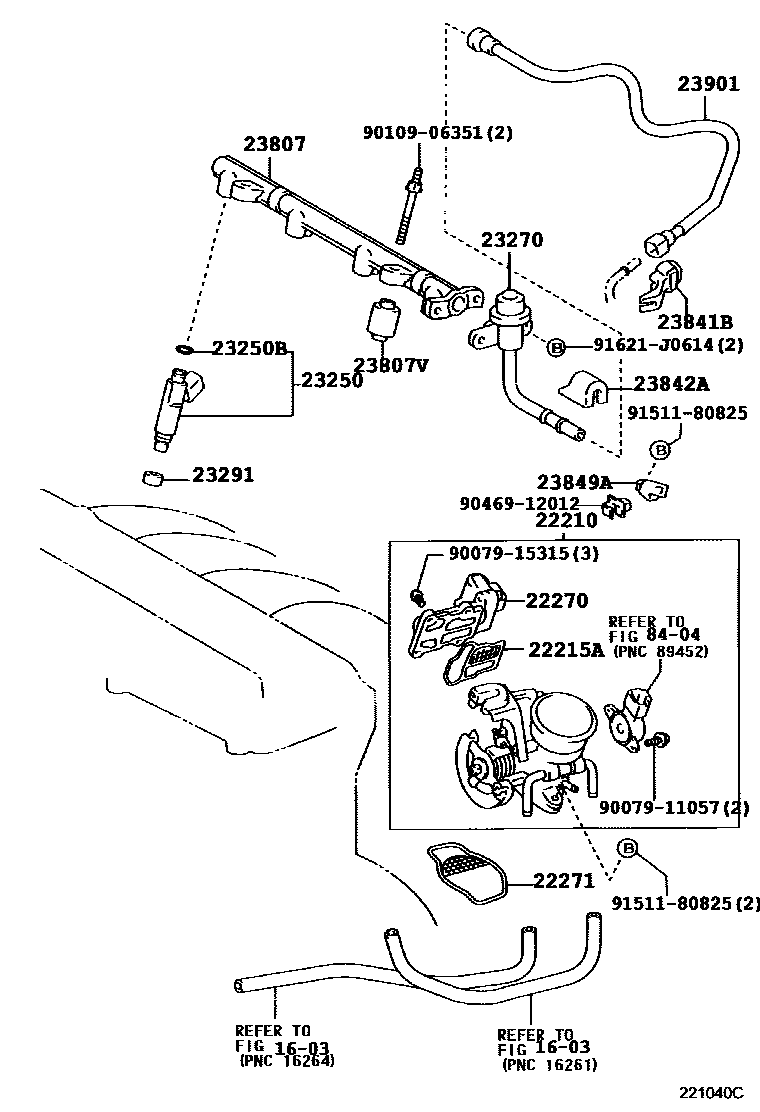

22210BODY ASSY, THROTTLE

main22210-20130i1MZFE..MCU1#¥131,000200011-200302

main22210-20140i1MZFE..MCU1#¥132,000199712-200011

main22210-28060i2AZFE..ACU1#¥57,100200011

sub22210-28090¥57,100

main22210-7A750i5SFE..SXU1#¥90,400199712

22215GASKET, THROTTLE BODY COVER

main22215-74400i5SFE..SXU1#¥440199712

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-20010i1MZFE..MCU1#¥440199712-200302

main22215-28041i2AZFE..ACU1#¥540200011-200108

sub22215-28042¥550

main22215-28042i2AZFE..ACU1#¥550200108

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-20050i1MZFE..MCU1#¥44,500199712-200302

main22270-28010i2AZFE..ACU1#¥17,300200011

main22270-74390i5SFE..SXU1#¥44,600199712

22271GASKET, THROTTLE BODY

main22271-20020i1MZFE..MCU1#¥720199712-200302

main22271-28020i2AZFE..ACU1#¥760200011

main22271-74070i5SFE..SXU1#¥550199712

23250INJECTOR ASSY, FUEL

main23209-20020i1MZFE..MCU1#¥20,100199712

main23209-28020i2AZFE..ACU1#¥20,100200011

main23209-74170i5SFE..SXU1#¥20,100199712

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i5SFE..SXU1#¥350199712-199811

main90301-07024i1MZFE..MCU1#¥190199712

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i5SFE..SXU1#¥7,200199712

sub23207-20011¥7,100

main23270-28020i2AZFE..ACU1#¥9,100200011

sub23270-28021¥9,100

main23270-62010i1MZFE..MCU1#¥6,400199712

sub23270-62011¥6,400

23291INSULATOR, INJECTOR VIBRATION

main23291-20010i1MZFE..MCU1#¥0199712

main23291-41010i5SFE..SXU1#¥340199712

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i1MZFE..MCU1#¥7,700199712

sub23814-20021¥7,700

main23814-28020i2AZFE..ACU1#¥9,400200011

sub23814-28031¥9,400

main23814-74110i5SFE..SXU1#¥7,800199712

sub23814-74080¥7,600

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i1MZFE..MCU1#¥160199712

main90561-08053i5SFE..SXU1#¥180199712

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-20020i1MZFE..MCU1#¥200199712-200011

main23841-28010i1MZFE..MCU1#¥370200011

main23841-74010i5SFE..SXU1#¥440199712

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFE..ACU1#¥550200011

23849ASUPPORT, FUEL PIPE

main23849-28010i2AZFE..ACU1#¥320200011

23901TUBE SUB-ASSY, FUEL

main23901-28070i2AZFE..ACU1#¥6,600200011-200302

sub23901-28071¥6,700

8404

9007911057

main90079-11057¥110

9007915315

main90079-15315¥110

9010906351

main90109-06351¥130

9046912012

main90469-12012¥210

9151180825

main91511-80825¥0

91621J0614

main91621-J0614¥110

23 parts on this diagram · 8 diagrams in section
