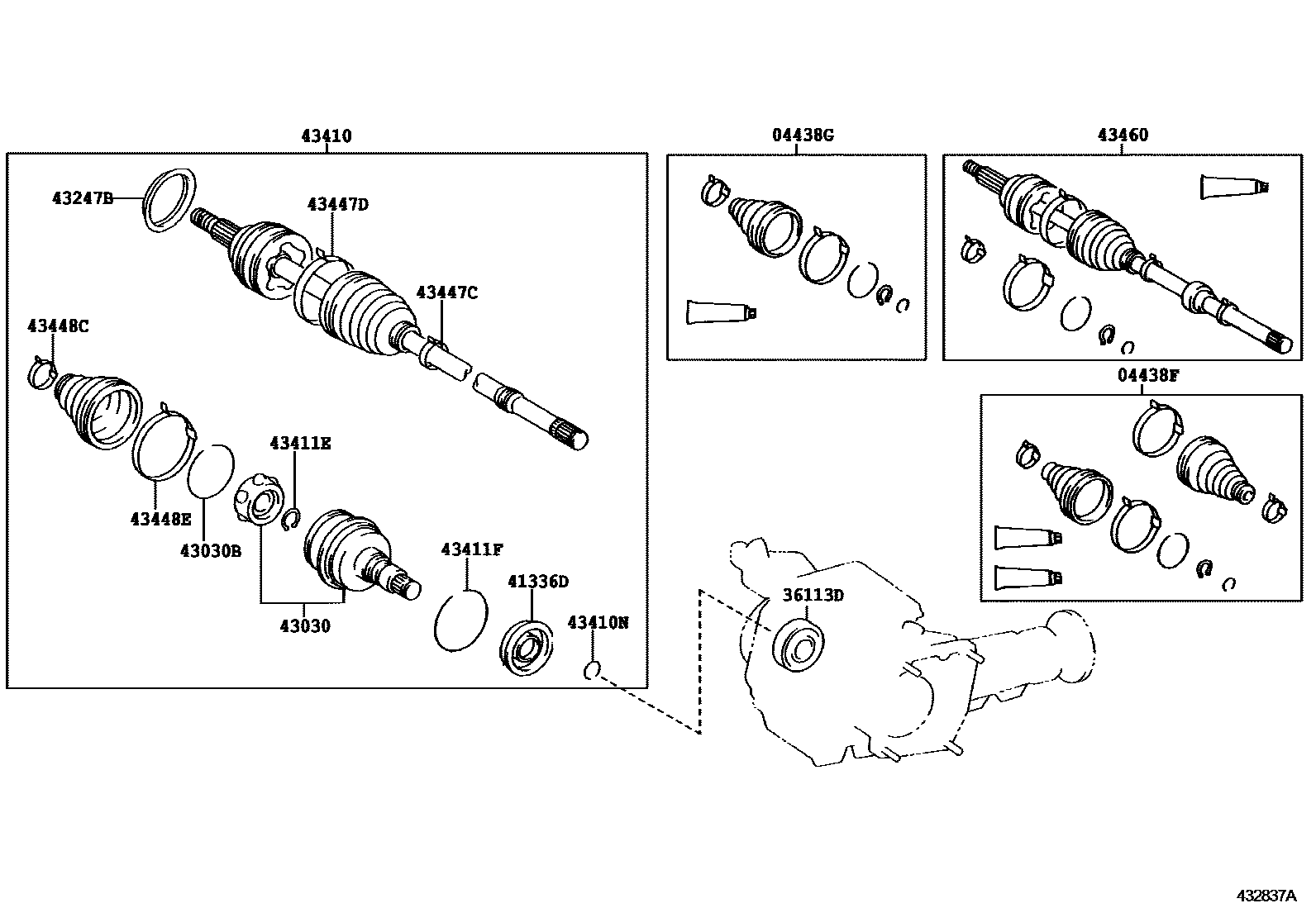

Toyota HARRIER — FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1LH 0006 1LH 0007 1LH 0008 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-21061iACU15,MCU15,SXU1#¥10,800199712

sub04438-21062¥10,800

main04438-33090iMCU10¥10,800200105

sub04428-33060¥10,800

main04438-48030iMCU10¥12,400199712-199912

sub04438-48032¥12,400

main04438-48031iMCU10¥12,400199912-200105

sub04428-48090¥12,400

main04438-48070iACU10¥10,800200011

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-21050iACU15,MCU15,SXU1#¥6,700199712

sub04438-21051¥6,700

main04438-33011iMCU10¥6,700199712-199912

sub04438-33012¥8,200

main04438-33012iMCU10¥8,200199912

sub04438-33013¥8,200

main04438-48060iACU10¥6,700200011

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-34021iACU15,MCU15,SXU15¥230199712

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iACU10,MCU10,SXU10¥330199712

main41336-21010iACU15,MCU15,SXU15¥430199712

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-21010iACU15,MCU15,SXU15¥30,900199712

main43030-48010iSXU10¥34,200199712-200011

main43030-48030iACU10¥30,900200011

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-79001iACU15,MCU15,SXU1#¥280199712

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iACU1#,MCU1#,SXU1#¥780199712

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33150iMCU10¥79,500199712-199908

sub43410-33200¥79,500

main43410-33200iMCU10¥79,500199908-200008

sub43410-33201¥79,500

sub90178-22001¥310

main43410-33201iMCU10¥79,500200008-200105

sub43410-33202¥79,200

main43410-33202iMCU10¥79,200200105

main43410-48010iACU15,MCU15,SXU15¥82,700199712

main43410-48030iSXU10¥79,500199712-200011

main43410-48040iACU10¥79,400200011

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iACU10,MCU10,SXU10¥100199712

main90521-26004iACU15,MCU15,SXU15¥100199712

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-25034iACU15,MCU15,SXU1#¥160199712

main90520-26028iMCU10¥110199712

main90520-26037iACU10¥110200011

43411FRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER RH)

main90520-86003iACU15,MCU15,SXU15¥310199712

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48030iMCU10¥410199712

main90949-01A65iACU1#,MCU15,SXU1#¥360199712

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-20130iACU10¥700200011

main42345-44010iMCU10¥550200103-200105

sub42345-44020¥570

main42345-44020iMCU10¥570200105

main42345-48040iMCU10¥600199712-200105

main90949-01937iACU15,MCU15,SXU1#¥510199712

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-14010iMCU10¥700199712

main42345-22020iACU10¥320200011

sub42345-50070¥190

main90949-01108iACU15,MCU15,SXU1#¥320199712

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42346-22010iACU15,MCU15,SXU1#¥620199712

main42346-22020iACU10¥610200011

main90949-01340iMCU10¥280199712

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49045iSXU10¥42,900199712-200011

sub43460-49046¥42,900

main43460-49055iACU15,MCU15,SXU15¥42,900199712

sub43460-49056¥42,900

main43460-49095iACU10¥46,300200011

main43470-39207iMCU10¥41,000199712-199912

sub43470-39355¥46,000

sub90178-22001¥310

main43470-39209iMCU10¥44,900199912-200008

sub43470-39365¥44,900

sub90178-22001¥310

main43470-39365iMCU10¥44,900200008-200105

sub43470-39366¥44,900

main43470-39366iMCU10¥44,900200105

sub43470-39367¥44,900

16 parts on this diagram · 8 diagrams in section
