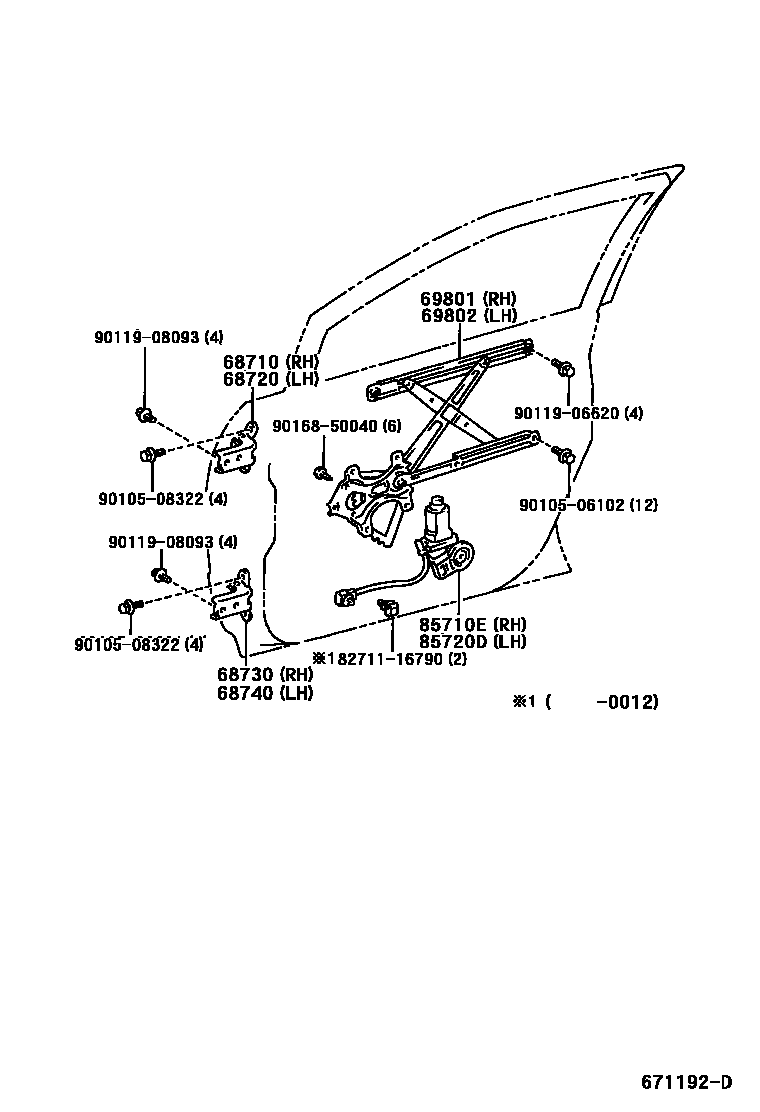

Toyota HARRIER — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iACU1#,MCU1#,SXU1#¥3,250199712

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iACU1#,MCU1#,SXU1#¥3,250199712

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12150iACU1#,MCU1#,SXU1#¥3,250199712

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12150iACU1#,MCU1#,SXU1#¥3,250199712

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-48010iACU1#,MCU1#,SXU1#¥7,500199712

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-48020iACU1#,MCU1#,SXU1#¥7,500199712

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-48010iACU1#,MCU1#,SXU1#¥33,200199712-200205

sub85710-48011¥33,200

main85710-48011iACU1#,MCU1#¥33,200200205

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-48010iACU1#,MCU1#,SXU1#¥25,300199712

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790¥120

9010506102

main90105-06102¥70

9010508322

main90105-08322¥160

9011906620

main90119-06620¥120

9011908093

main90119-08093¥90

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
