Toyota HARRIER — ENGINE OVERHAUL GASKET KIT

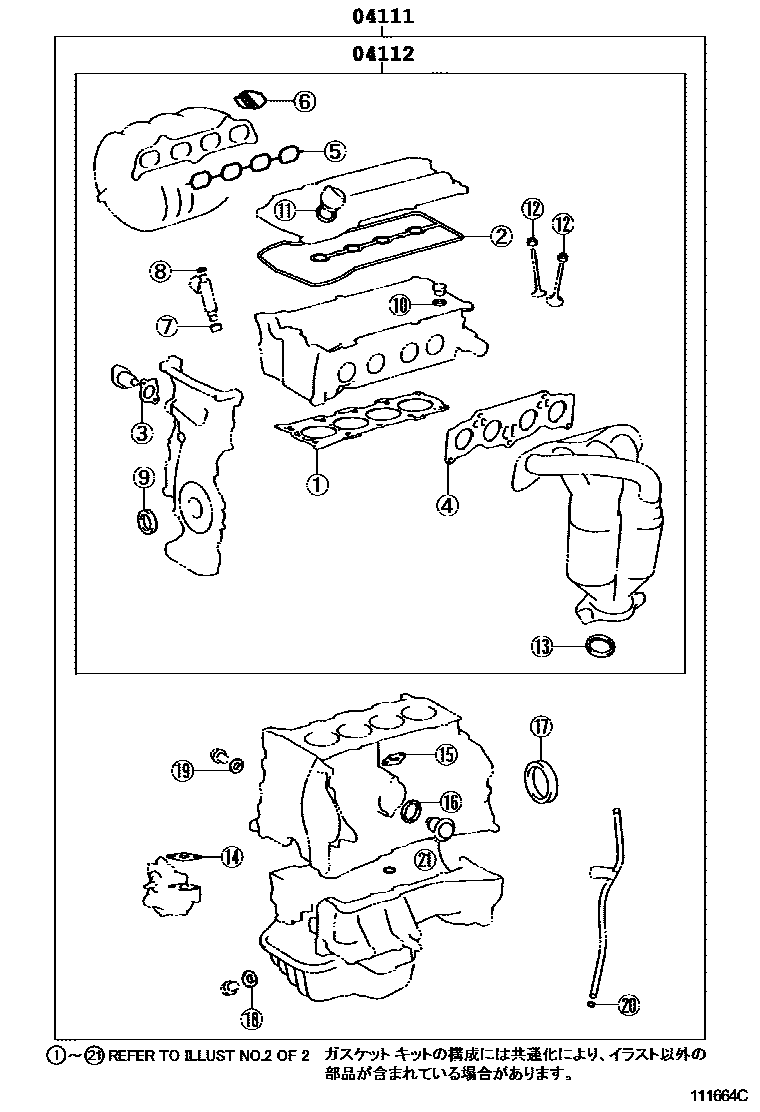

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-20050i¥61,800199712-199908

main04111-20100i¥61,800199908-200011

sub04111-20101¥61,800

main04111-20160i¥61,800200011

sub04111-20161¥61,900

main04111-28090i¥41,600200011-200104

sub04111-28091¥41,600

main04111-28091i¥41,600200104-200211

sub04111-28092¥41,600

main04111-28092i¥41,600200211-200212

sub04111-28093¥41,600

main04111-28093i¥41,600200212-200302

sub04111-28094¥41,600

main04111-74641i¥33,700199712-200011

04112GASKET KIT, ENGINE VALVE GRIND

main04112-20040i¥45,000199712-199908

main04112-20090i¥45,000199908-200011

sub04112-20091¥45,000

main04112-20150i¥45,000200011

sub04112-20151¥45,100

main04112-28090i¥27,600200011-200104

sub04112-28091¥27,400

main04112-28091i¥27,400200104-200211

sub04112-28092¥27,400

main04112-28092i¥27,400200211-200212

sub04112-28093¥27,400

main04112-28093i¥27,400200212-200302

sub04112-28094¥27,400

main04112-74581i¥26,500199712-200011

2 parts on this diagram · 6 diagrams in section
