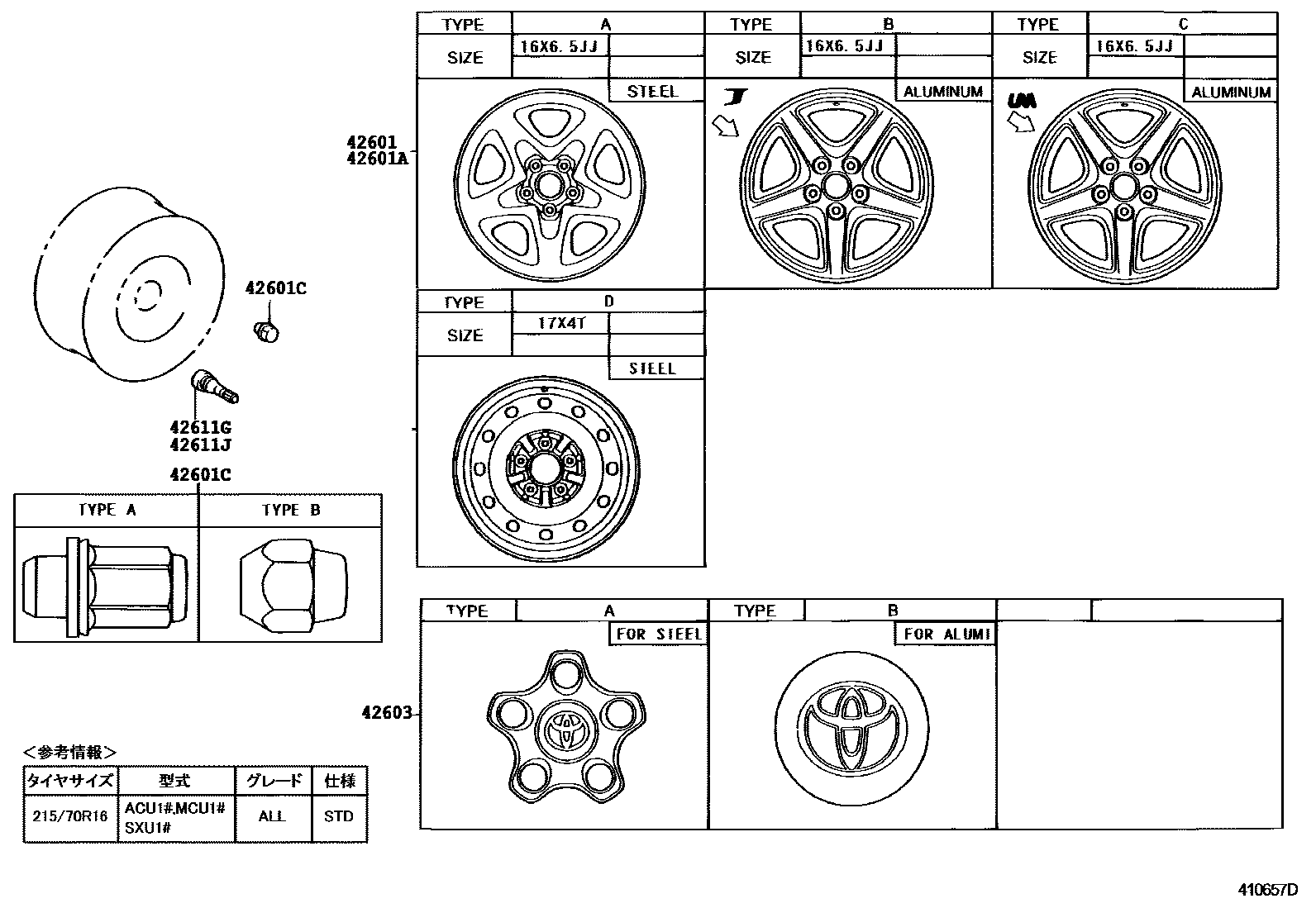

Toyota HARRIER — DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-48010iACU1#,MCU1#,SXU1#¥13,300199712

main42611-48020iACU1#,MCU1#,SXU1#¥39,500199712

main42611-48030iACU1#,MCU1#,SXU1#¥39,500199712

sub42611-48020¥39,500

main42611-48070iACU1#,MCU1#¥59,300200011

main42611-48100iACU1#,MCU1#¥41,700200108-200302

main42611-48110iACU1#,MCU1#¥41,700200108-200302

sub42611-48100¥41,700

42601AWHEEL, DISC (FOR SPARE)

main42611-48010iACU1#,MCU1#,SXU1#¥13,300199712

main42611-48020iACU1#,MCU1#,SXU1#¥39,500199712

main42611-48030iACU1#,MCU1#,SXU1#¥39,500199712

sub42611-48020¥39,500

main42611-48100iACU1#,MCU1#¥41,700200108-200302

main42611-48110iACU1#,MCU1#¥41,700200108-200302

sub42611-48100¥41,700

main42611-50090iACU1#,MCU1#¥10,900200011

sub42611-50091¥10,900

42601CNUT, HUB (FOR AXLE)

main90942-01058iACU1#,MCU1#,SXU1#¥500199712

main90942-01104iACU1#,MCU1#,SXU1#¥460199712

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30340iACU1#,MCU1#,SXU1#¥1,410199712

main42603-48010iACU1#,MCU1#,SXU1#¥4,320199712

main42603-48050iACU1#,MCU1#¥1,290200201

main42603-48050iACU1#,MCU1#¥1,290200108-200302

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004iACU1#,MCU1#,SXU1#¥620199712

L=58

main90942-05009iACU1#,MCU1#,SXU1#¥390199712

L=51

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05004iACU1#,MCU1#,SXU1#¥620199712

L=58

main90942-05009iACU1#,MCU1#,SXU1#¥390199712

L=51

6 parts on this diagram · 2 diagrams in section
