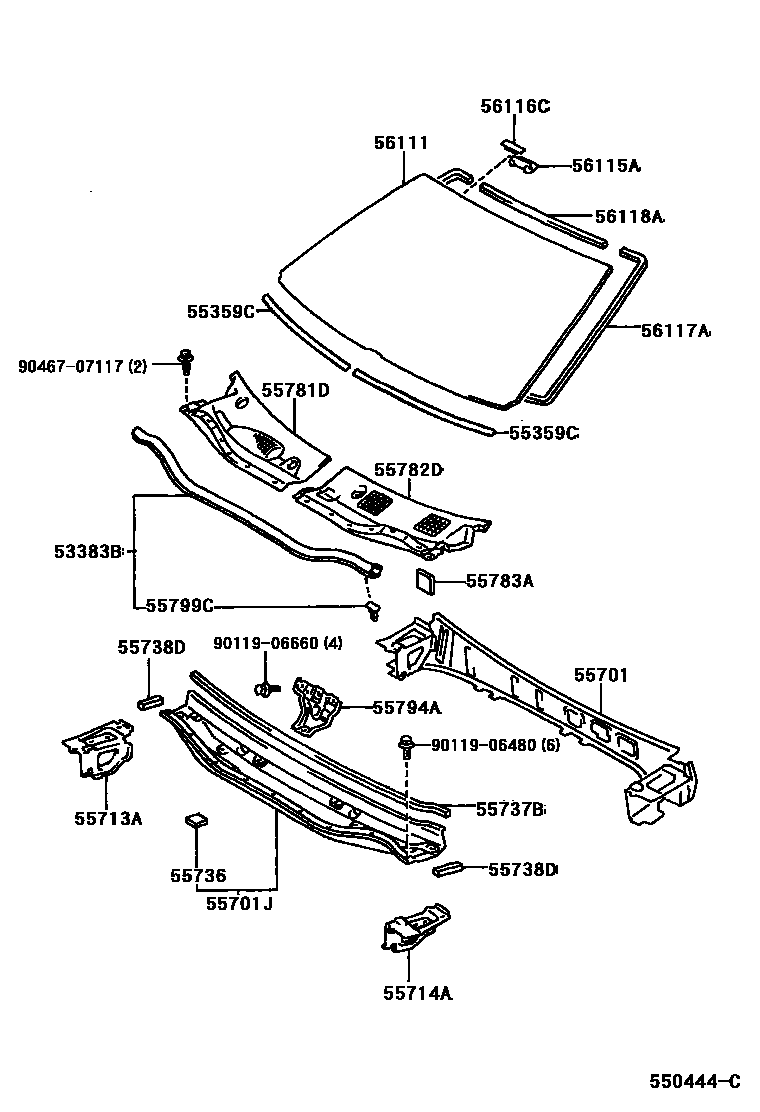

Toyota HARRIER — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55359CCOSHION, INSTRUMENT PANEL, NO.5
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55736SEAL, WATER GUARD PLATE
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783APAD, COWL TOP SILENCER
55794ABRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
9011906480
9011906660
9046707117
22 parts on this diagram · 1 diagram in section
