Toyota HARRIER — CENTER STOP LAMP

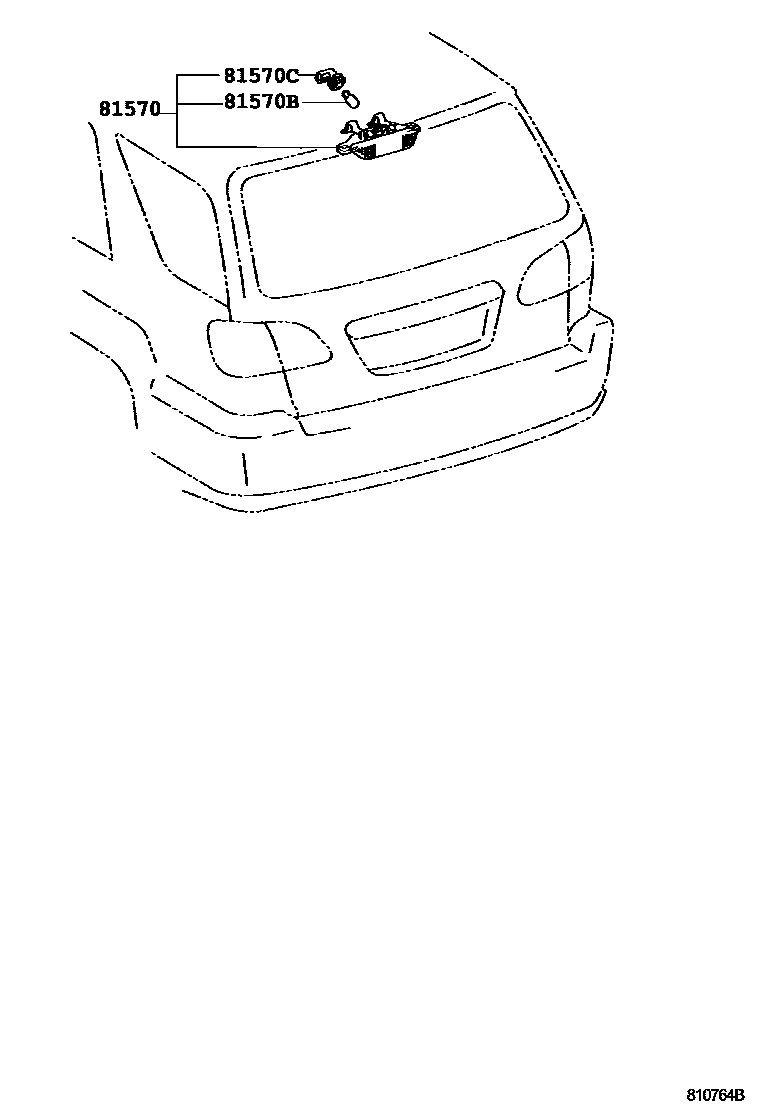

Parts diagram

81570LAMP ASSY, CENTER STOP

main81570-48010i¥6,400199712-200011

main81570-48020i¥10,600200011-200302

main81570-48030i¥6,400200011-200302

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039i¥200199712-199804

sub90981-11059¥200

main90981-11059i¥200199804

81570CSOCKET, CENTER STOP LAMP

main90075-99005i¥610199712

3 parts on this diagram · 1 diagram in section
