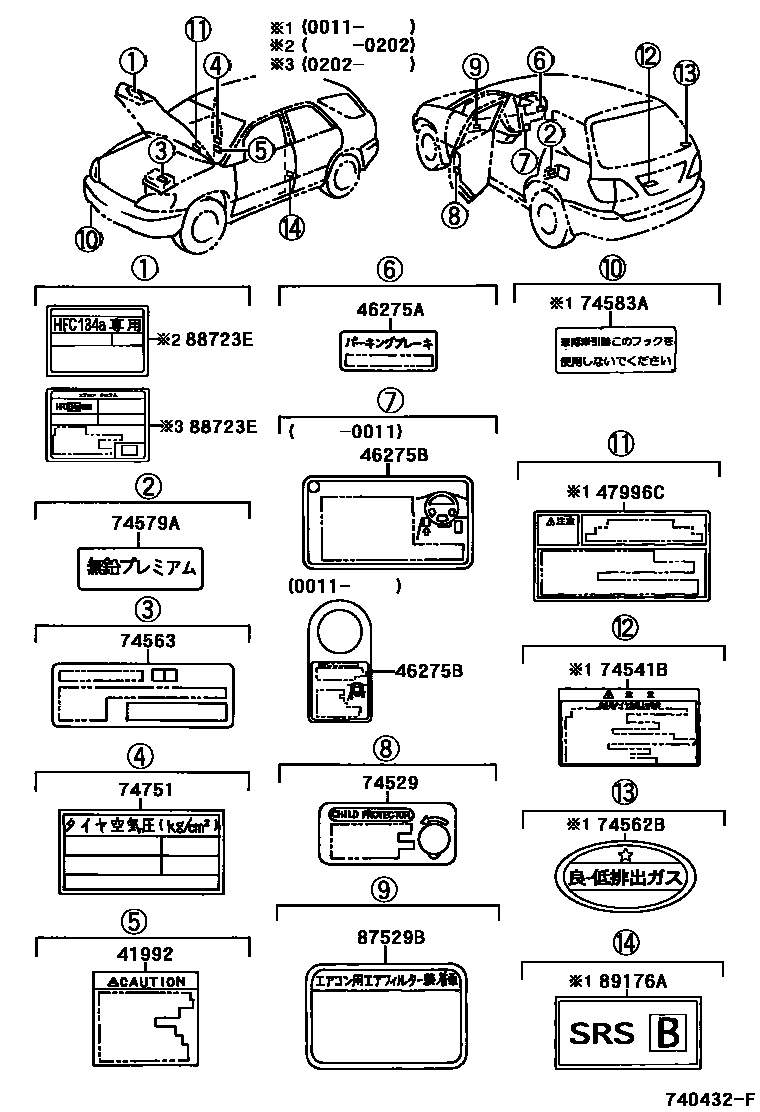

Toyota HARRIER — CAUTION PLATE (EXTERIOR & INTERIOR)

41992LABEL, DIFFERENTIAL NOTICE

main41992-33010iACU15,MCU15,SXU15¥90199712

46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1

main46275-33010-A0iMCU1#,SXU1#199712-200011

WHITE,TRIM0#,1#

sub46275-22010¥130

main46275-33010-A0iACU1#,MCU1#200011

WHITE,TRIM0#

sub46275-22010¥130

main46275-33010-B0iMCU1#,SXU1#199712-199912

GRAY,TRIM0#

sub46275-22010¥130

main46275-33010-B0iACU1#,MCU1#200011

GRAY,TRIM2#

sub46275-22010¥130

46275BLABEL, PARKING BRAKE RELEASE INFORMATION, NO.2

main46275-33020iMCU1#,SXU1#¥260199712-200011

main46275-47010iACU1#,MCU1#¥260200011

47996CLABEL, BRAKE BLEED CAUTION

main47996-48010iMCU1#¥270200011

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-33010iACU1#,MCU1#,SXU1#¥240199712

main69349-33010iACU1#,MCU1#,SXU1#¥240199712

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-28060iACU1#,MCU1#¥320200011

74562BLABEL, EMISSION INFORMATION

main74562-40040iACU1#,MCU1#¥250200011

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-48010iSXU1#¥140199712-199902

main74563-48020iMCU1#¥140199712-199902

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-24010iMCU1#¥130199712

74583APLATE, TRAILER TOWING CAUTION

main74583-48010iACU1#,MCU1#,SXU1#¥140199712

74751LABEL, TIRE PRESSURE INFORMATION

main42661-48010iMCU1#,SXU1#¥200199712-200003

sub42661-48011¥200

main42661-48011iMCU1#,SXU1#¥200200003-200011

main42661-48030iACU1#,MCU1#¥200200011

87529BLABEL, A/C FILTER INFORMATION

main87529-50020iMCU1#,SXU1#¥300199712-199905

88723ELABEL, COOLER SERVICE CAUTION

main88723-22060iMCU1#,SXU1#¥0199712-200011

main88723-42050iACU1#,MCU1#200011-200202

sub88733-51010

main88733-27010iACU1#,MCU1#200202

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-51010iACU1#,MCU1#¥120200011

14 parts on this diagram · 1 diagram in section
