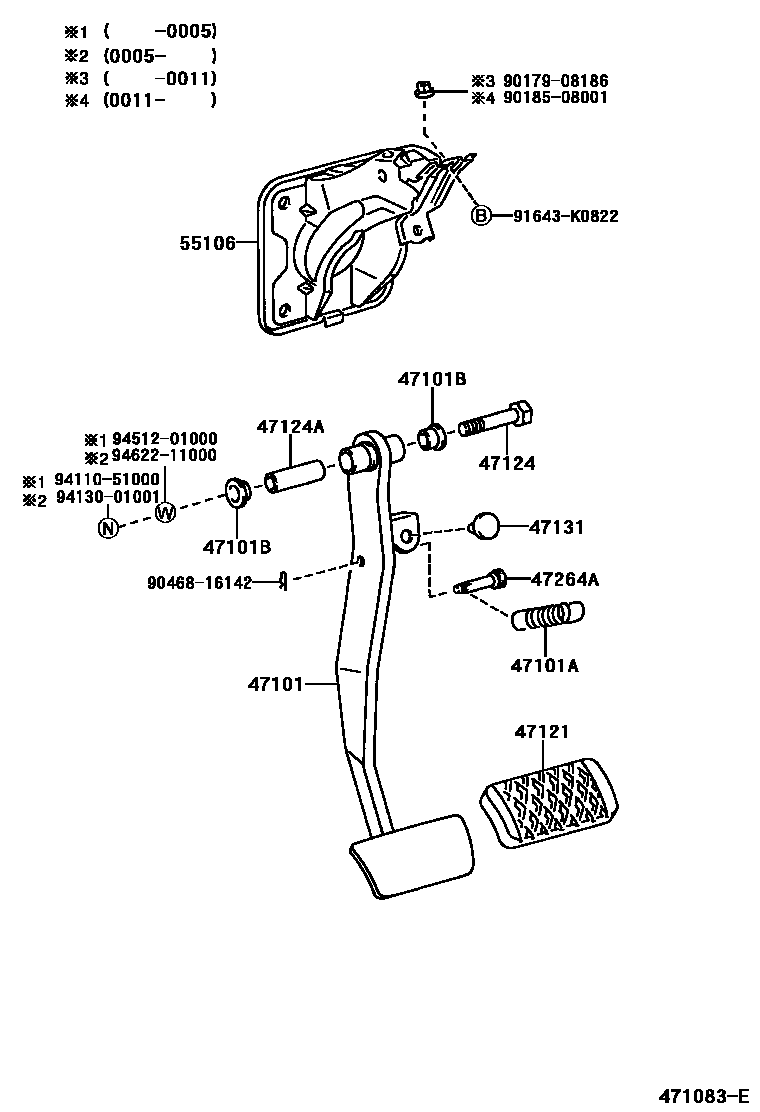

Toyota HARRIER — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-48010iACU1#,MCU1#,SXU1#¥3,000199712

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iACU1#,MCU1#,SXU1#¥260199712

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iACU1#,MCU1#,SXU1#¥120199712

47121PAD, BRAKE PEDAL

main47121-50010iMCU1#,SXU1#¥840199712-200011

main47121-50020iACU1#,MCU1#¥510200011

47124SHAFT, BRAKE PEDAL

main90101-10015iACU1#,MCU1#,SXU1#¥160200005

main90101-10039iMCU1#,SXU1#¥160199712-200005

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iACU1#,MCU1#,SXU1#¥370199712

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACU1#,MCU1#,SXU1#¥110199712

47264APIN(FOR PUSH ROD)

main47148-33010iACU1#,MCU1#,SXU1#¥260199712-200108

sub47148-33011¥220

main47148-33011iACU1#,MCU1#¥220200108

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48010iACU1#,MCU1#,SXU1#¥3,370199712

9017908186

main90179-08186¥210

9018508001

main90185-08001¥320

9046816142

main90468-16142¥70

91643K0822

main91643-K0822¥130

9411051000

main94110-51000¥130

9413001001

main94130-01001¥110

9451201000

main94512-01000¥90

9462211000

main94622-11000¥160

17 parts on this diagram · 1 diagram in section
