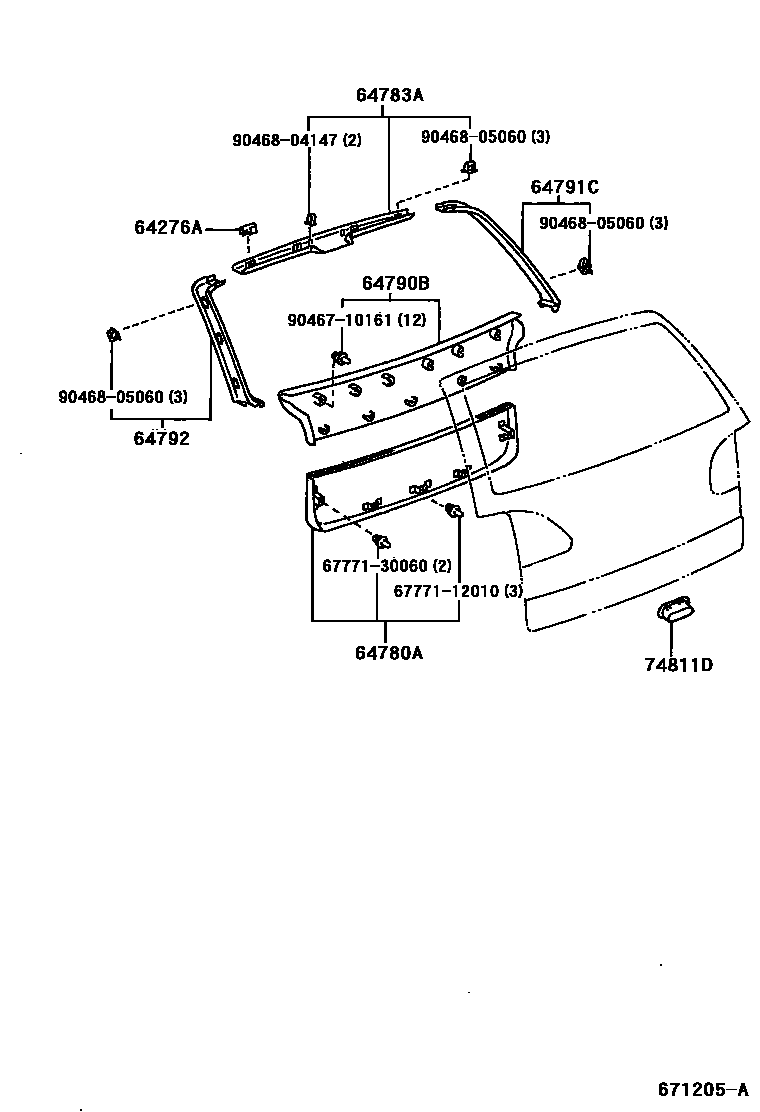

Toyota HARRIER — BACK DOOR PANEL & GLASS

0001 1 0002 1

64276ABRACKET, BACK PANEL TRIM, UPPER

main64276-42010iACU1#,MCU1#,SXU1#¥360199712

64780APANEL ASSY, BACK DOOR TRIM

main64780-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64780-48010-B0iMCU1#,SXU1#199712-200011

MEDIUM GRAY,TRIM1#

main64780-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

main64780-48030-A0iACU1#,MCU1#200011

main64780-48030-C0iACU1#,MCU1#200011

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-48020-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

sub64783-48020¥5,100

main64783-48020-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

sub64783-48020¥5,100

main64783-48020-C0iACU1#,MCU1#200011

BLACK,TRIM2#

sub64783-48020¥5,100

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main64790-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main64790-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

main64790-48020-A0iACU1#,MCU1#200011

main64790-48020-C0iACU1#,MCU1#200011

64791CCOVER, BACK DOOR TRIM, RH

main64791-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

sub64791-48010¥3,150

main64791-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

sub64791-48010¥3,150

main64791-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

sub64791-48010¥3,150

64792COVER, BACK DOOR TRIM, LH

main64792-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

sub64792-48010¥3,150

main64792-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

sub64792-48010¥3,150

main64792-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

sub64792-48010¥3,150

74811DHANDLE, DOOR PULL

main74811-13010-C0iMCU1#,SXU1#199712-200011

BLACK,TRIM0#,1#

sub74811-13010¥940

main74811-13010-C0iACU1#,MCU1#200011

BLACK,TRIM0#,2#

sub74811-13010¥940

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010¥170

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060¥200

9046710161

main90467-10161¥90

9046804147

main90468-04147¥70

9046805060

main90468-05060¥90

12 parts on this diagram · 2 diagrams in section
