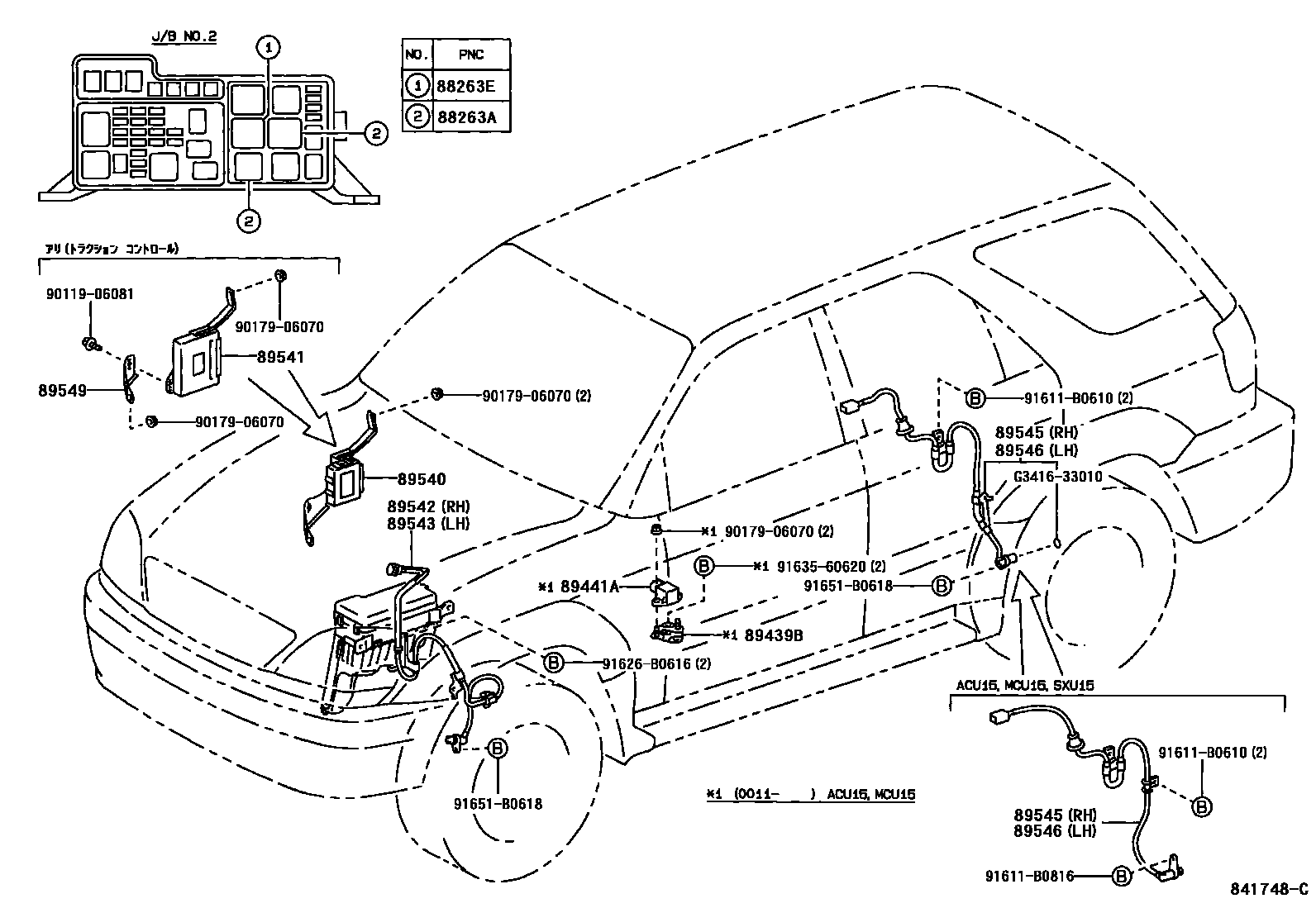

Toyota HARRIER — ABS & VSC

0001 1 0002 1��(VSC)

88263ARELAY, SKID CONTROL

main88263-14110iMCU1#,SXU1#¥3,720199712-200011

main88263-24020iACU1#,MCU1#¥3,890200011

88263ERELAY, SKID CONTROL NO.2

main88263-24030iACU1#,MCU1#,SXU1#¥3,890199712

89439BBRACKET, SENSOR

main89439-48010iACU15,MCU15¥850200011

89441ASENSOR, DECELERATION

main89441-30050iMCU1#¥57,100200011

��(VSC)

main89441-60020iACU15,MCU15¥21,600200011

89540COMPUTER ASSY, SKID CONTROL

main89540-48010iMCU10,SXU10¥60,000199712-200011

main89540-48030iMCU15,SXU15¥60,000199712-200011

main89540-48070iACU10,MCU10¥47,600200011

main89540-48090iACU15,MCU15¥60,000200011

main89540-48110iMCU10¥259,000200011

��(VSC)

main89540-48130iMCU15¥269,000200011-200105

��(VSC)

sub89540-48131¥269,000

main89540-48131iMCU15¥269,000200105

��(VSC)

89541COMPUTER, SKID CONTROL

main89541-48030iMCU10¥139,000199712-200011

89542SENSOR, SPEED, FRONT RH

main89542-48010iACU1#,MCU1#,SXU1#¥21,700199712

89543SENSOR, SPEED, FRONT LH

main89543-48010iACU1#,MCU1#,SXU1#¥21,700199712

89545SENSOR, SPEED, REAR RH

main89545-48010iACU10,MCU10,SXU10¥21,700199712

main89545-48020iACU15,MCU15,SXU15¥21,700199712

89546SENSOR, SPEED, REAR LH

main89546-48010iACU10,MCU10,SXU10¥21,700199712

main89546-48020iACU15,MCU15,SXU15¥21,700199712

89549BRACKET, SKID CONTROL COMPUTER

main88268-48030iMCU10199712-200011

9011906081

main90119-06081¥160

9017906070

main90179-06070¥180

91611B0610

main91611-B0610¥70

91611B0816

main91611-B0816¥140

91626B0616

main91626-B0616¥110

9163560620

main91635-60620¥110

91651B0618

main91651-B0618¥100

G341633010

mainG3416-33010¥150

19 parts on this diagram · 2 diagrams in section
