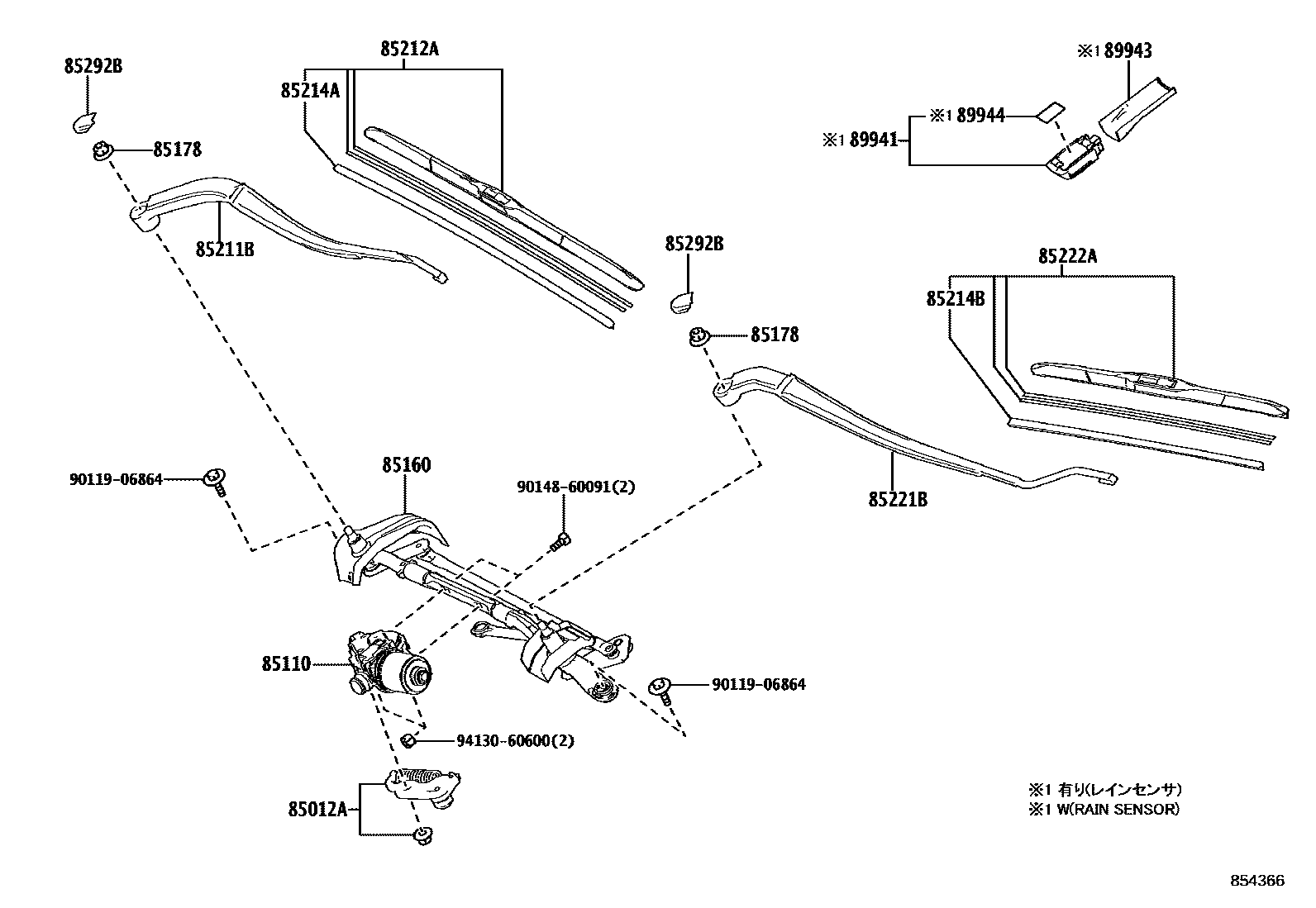

Toyota HARRIER/HYBRID(JPP) — WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iAXUH80,MXUA80¥0202009-202309

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42280iAXUH80,MXUA80¥19,500202009-202309

85160LINK ASSY, WINDSHIELD WIPER

main85150-42260iAXUH80,MXUA80202009-202309

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAXUH80,MXUA80¥80202009-202309

85211BARM, FRONT WIPER, RH

main85211-42220iAXUH80,MXUA80202009-202202

sub85211-42221

main85211-42221iAXUH80,MXUA80202203-202309

85212ABLADE, FR WIPER, RH

main85212-42210iAXUH80,MXUA80202009-202309

85214ARUBBER, WIPER, RH

main85214-52110iAXUH80,MXUA80¥900202009-202309

85214BRUBBER, WIPER, LH

main85214-28090iAXUH80,MXUA80¥750202009-202309

85221BARM, FRONT WIPER, LH

main85221-42230iAXUH80,MXUA80¥3,880202009-202309

85222ABLADE, FR WIPER, LH

main85222-42190iAXUH80,MXUA80¥1,810202009-202309

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAXUH80,MXUA80¥250202009-202309

89941SENSOR, RAIN

main89941-42020iAXUH80,MXUA80¥12,500202009-202309

89943COVER, RAIN SENSOR

main89943-42040iAXUH80,MXUA80¥540202009-202309

89944TAPE, RAIN SENSOR

main89944-42020iAXUH80,MXUA80¥170202009-202309

9011906864

main90119-06864¥80

9014860091

main90148-60091¥0

9413060600

main94130-60600¥80

17 parts on this diagram · 1 diagram in section
