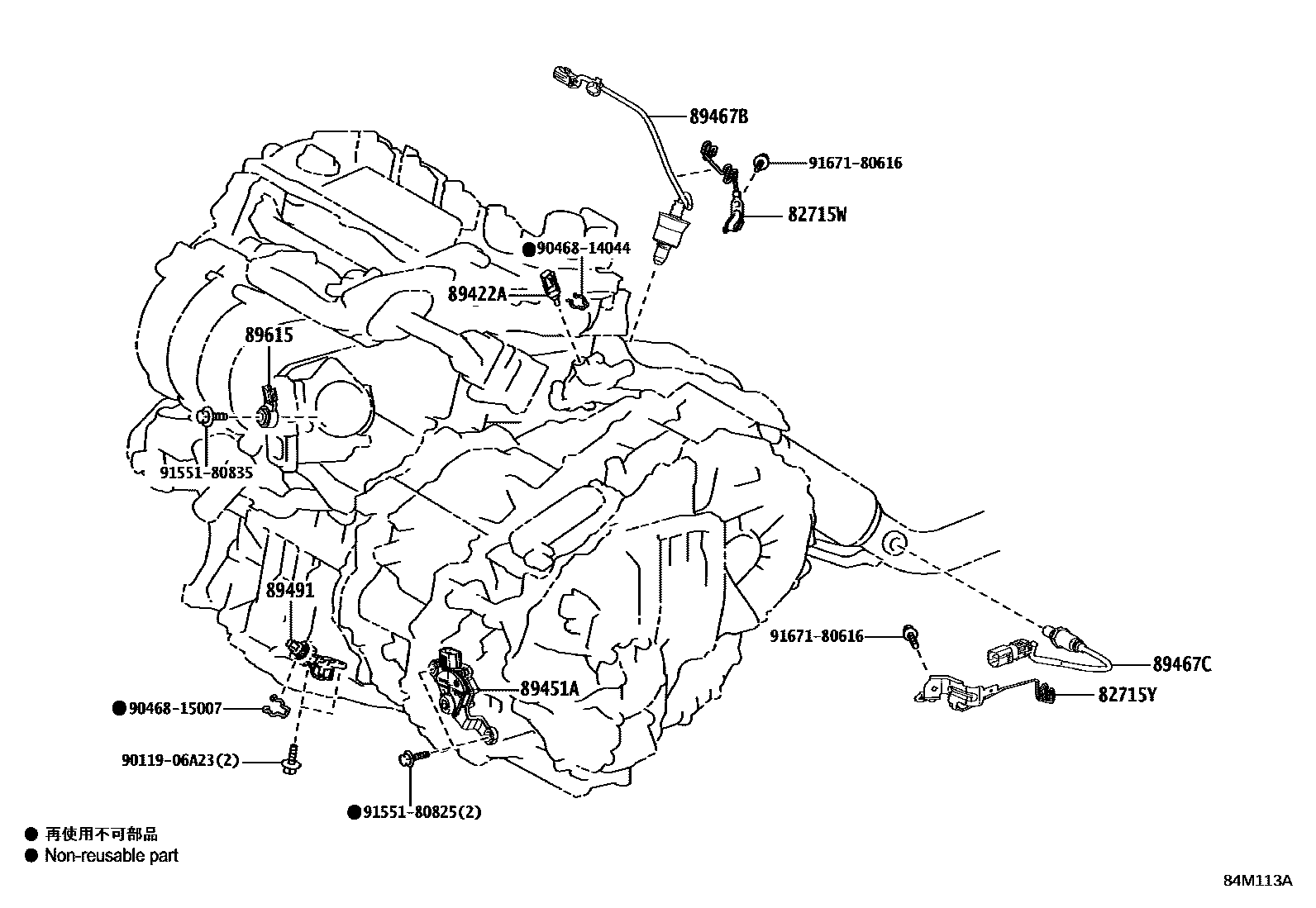

Toyota HARRIER/HYBRID(JPP) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1CONSOLE BOX 0009 1STEERING 0010 1SEAT 0011 1DOOR & ROOF 0012 1FLOOR & BACK DOOR 0013 1FLOOR & BACK DOOR 0014 1FLOOR & BACK DOOR 0015 1FLOOR & BACK DOOR 0016 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-12X50iMXUA80¥260202009-202309

82715WBRACKET, WIRING HARNESS CLAMP

main82715-33K11iAXUH80¥300202010-202210

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-42K60iAXUH80;MXUA80..S¥520202009-202309

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXUH80,MXUA80¥2,410202009-202309

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXUH80¥5,900202010-202210

89467BSENSOR, AIR FUEL RATIO

main89467-12280iMXUA80..S¥9,900202009-202309

main89467-33290iAXUH80¥9,900202010-202210

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170iAXUH80,MXUA80¥9,900202009-202309

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXUH80,MXUA80¥3,670202009-202204

sub89491-33052¥3,330

main89491-33052iAXUH80,MXUA80¥3,330202205-202309

89615SENSOR, KNOCK CONTROL

main89615-20090iAXUH80,MXUA80¥2,370202009-202309

9011906A23

main90119-06A23¥60

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180825

main91551-80825¥80

9155180835

main91551-80835¥80

9167180616

main91671-80616¥60

15 parts on this diagram · 16 diagrams in section
