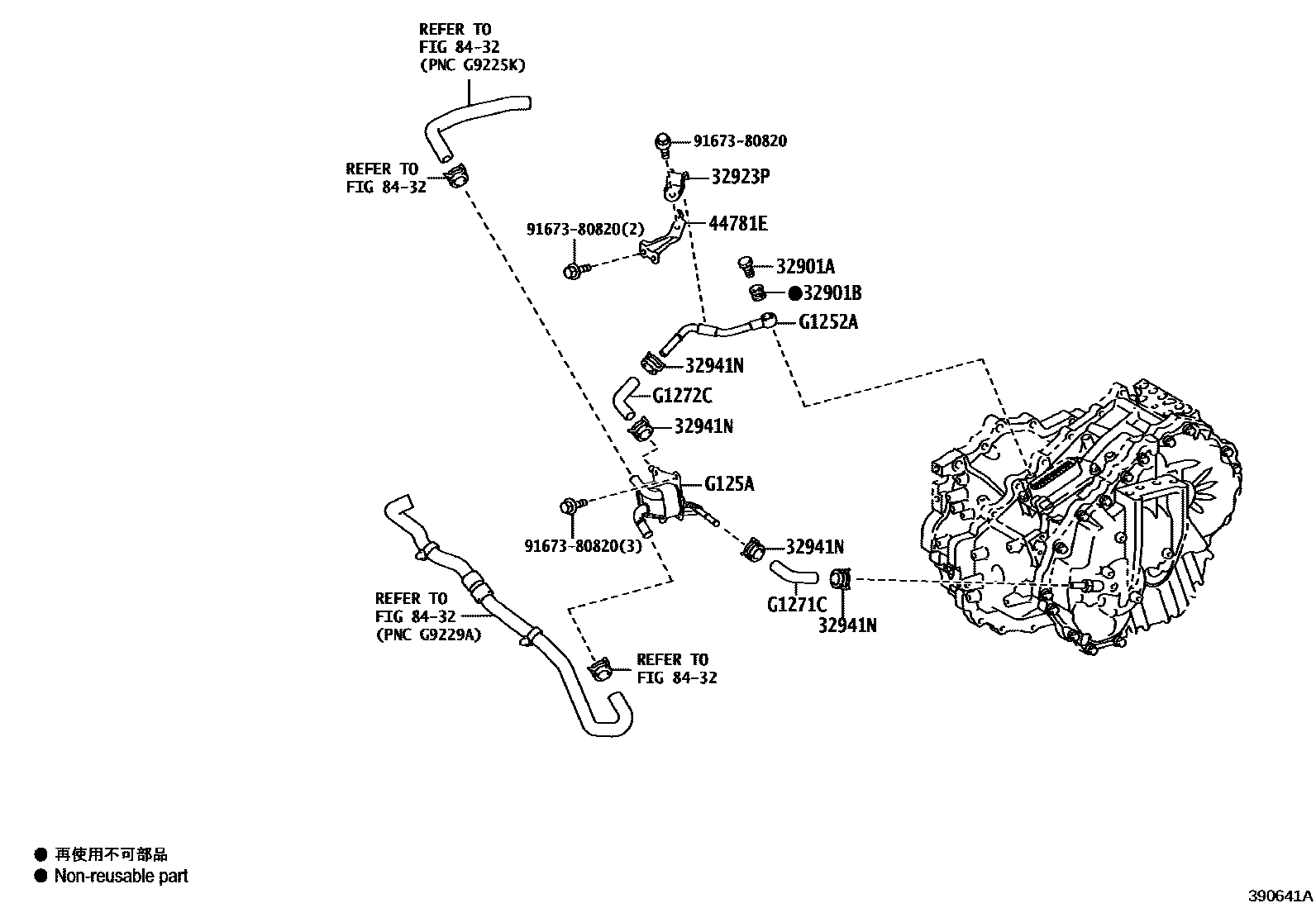

Toyota HARRIER/HYBRID(JPP) — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXUH80¥390202010-202210

main90401-12039iAXUH80¥390202210

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXUH80¥80202010-202210

main90430-12037iAXUH80¥80202210

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iAXUH80¥200202010-202210

main32923-52040iAXUH80¥200202210

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAXUH80¥180202010-202210

main90466-16004iAXUH80¥180202210

44781EBRACKET, HOSE

main44781-33020iAXUH80¥470202010-202210

main44781-33020iAXUH80¥470202210

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010iAXUH80202010-202210

mainG125233010iAXUH80202210

G125ACOOLER, MOTOR COOLING

mainG125A42010iAXUH80202010-202210

mainG125A42010iAXUH80202210

G1271CHOSE, MOTOR COOLING, NO.1

mainG127133010iAXUH80202010-202210

mainG127133010iAXUH80202210

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010iAXUH80202010-202210

mainG127233010iAXUH80202210

9167380820

main91673-80820¥80

11 parts on this diagram · 1 diagram in section
