Toyota HARRIER/HYBRID(JPP) — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-48630iMXUA80..G202210-202309

main69005-48630iAXUH80,MXUA80202009-202210

main69005-48630iAXUH80;MXUA80..S202210

69503AKEY, BLANK

main69515-K0020iAXUH80,MXUA80¥6,500202009-202210

BLANK KEY,W(*68)

main69515-K0020iMXUA80..G¥6,500202210-202309

BLANK KEY,W(*68)

main69515-K0020iAXUH80;MXUA80..S¥6,500202210

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010iAXUH80,MXUA80¥7,100202009-202210

MASTER KEY,W(*68)

main69515-K0010iMXUA80..G¥7,100202210-202309

MASTER KEY,W(*68)

main69515-K0010iAXUH80;MXUA80..S¥7,100202210

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-48F20iAXUH80;MXUA80..S202210

main89072-48F20iMXUA80202009-202210

main89072-48F20iMXUA80..G202210-202309

main89072-48F30iAXUH80202010-202210

89745CBATTERY, TRANSMITTER

main89745-K0020iAXUH80,MXUA80¥440202009-202207

CR2450

main89745-K0020iAXUH80,MXUA80¥440202207-202210

CR2450

main89745-K0020iMXUA80..G¥440202210-202309

CR2450

main89745-K0020iAXUH80;MXUA80..S¥440202210

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-48060iMXUA80202009-202206

sub8990H-48061

main8990H-48061iAXUH80;MXUA80..S202210-202406

sub8990H-48062

main8990H-48061iMXUA80202207-202210

sub8990H-48062

main8990H-48061iMXUA80..G202210-202309

sub8990H-48062

main8990H-48062iAXUH80;MXUA80..S202407

main8990H-48070iAXUH80202010-202206

sub8990H-48071

main8990H-48071iAXUH80202207-202210

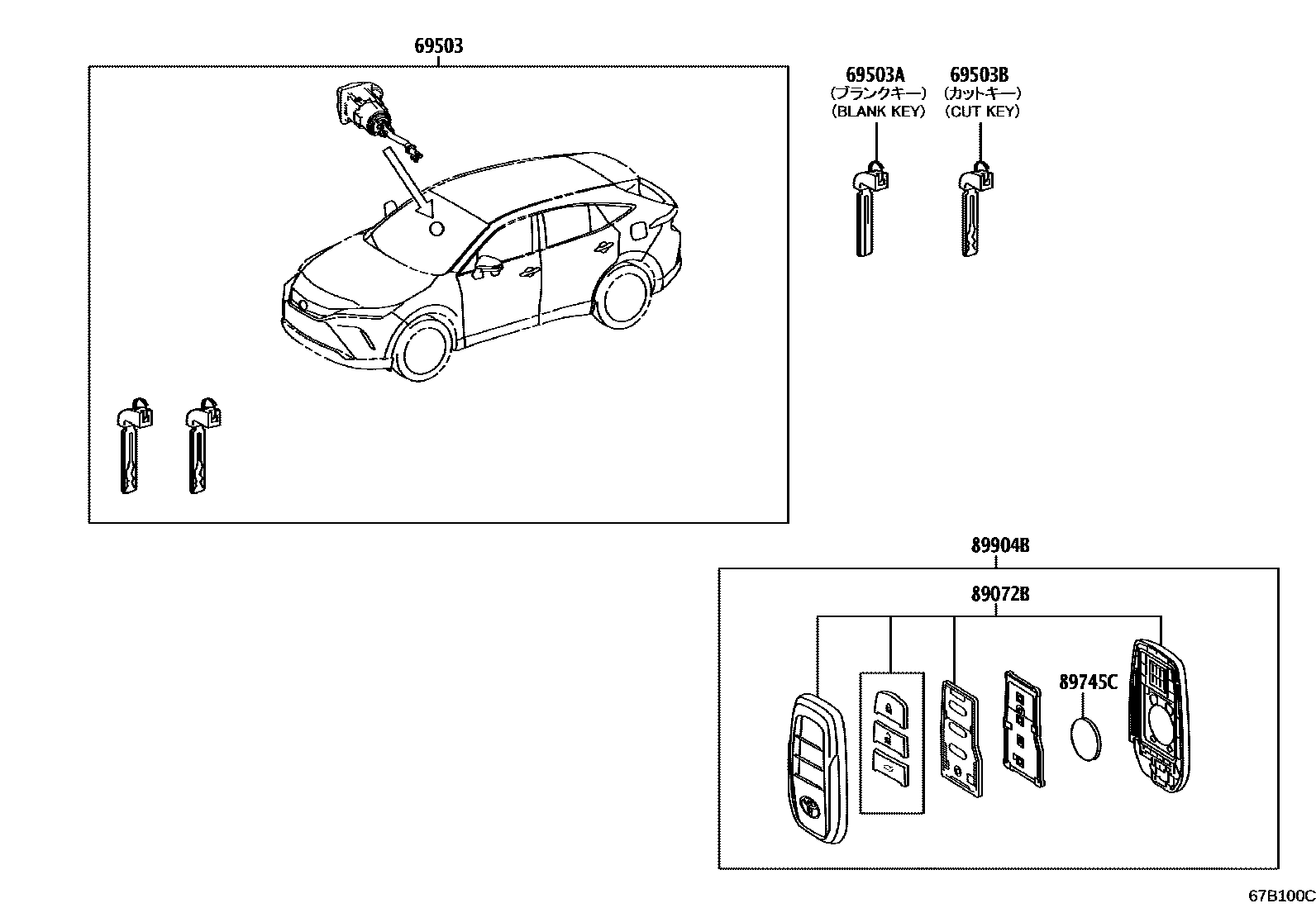

6 parts on this diagram · 1 diagram in section
