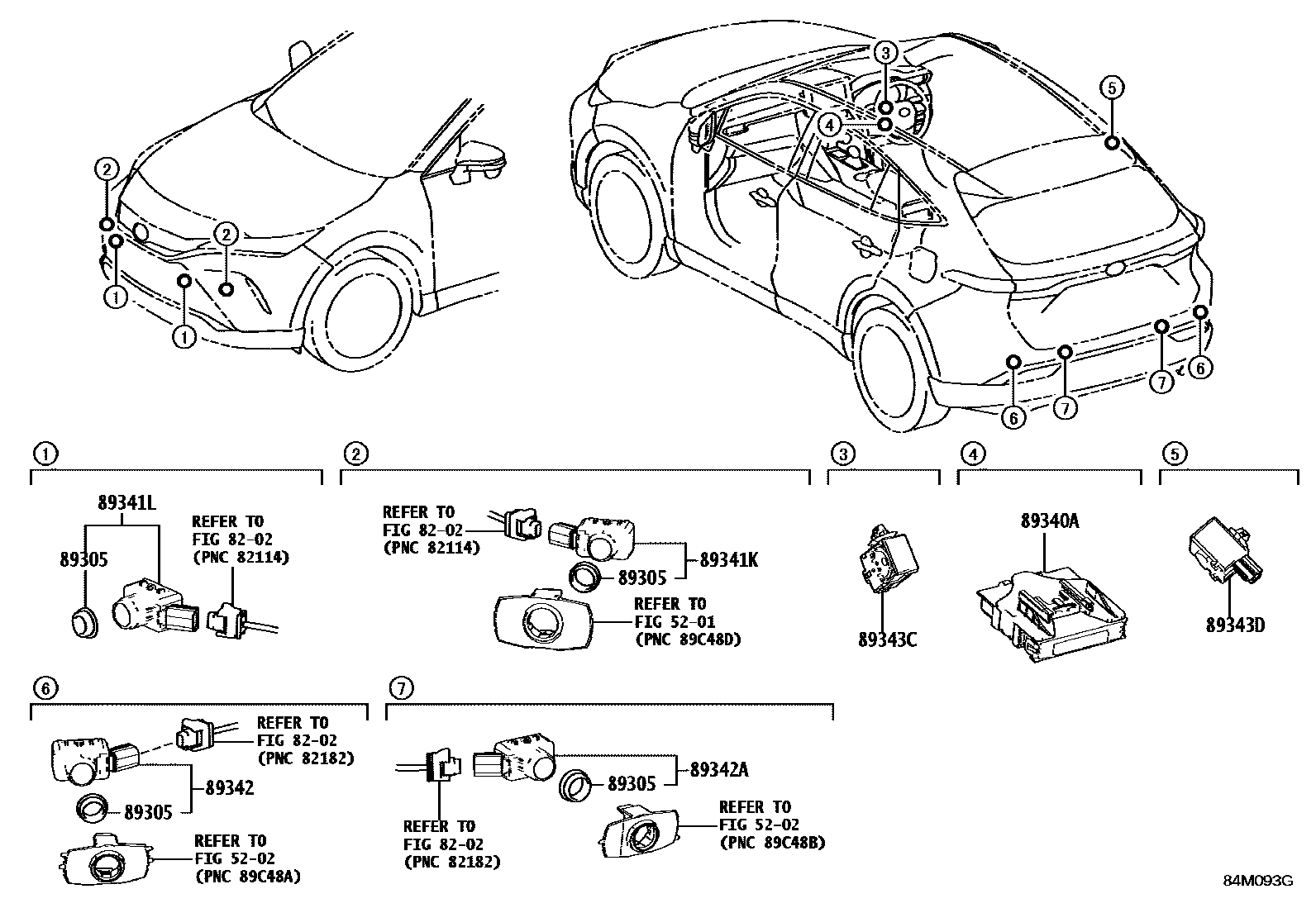

Toyota HARRIER/HYBRID(JPP) — CLEARANCE & BACK SONAR
5201
5202
8202
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
*614
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
89341LSENSOR, ULTRASONIC, FRONT CENTER
DUMMY-MAT BLACK
DUMMY-MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
89342ASENSOR, ULTRASONIC, REAR CENTER
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
11 parts on this diagram · 1 diagram in section
