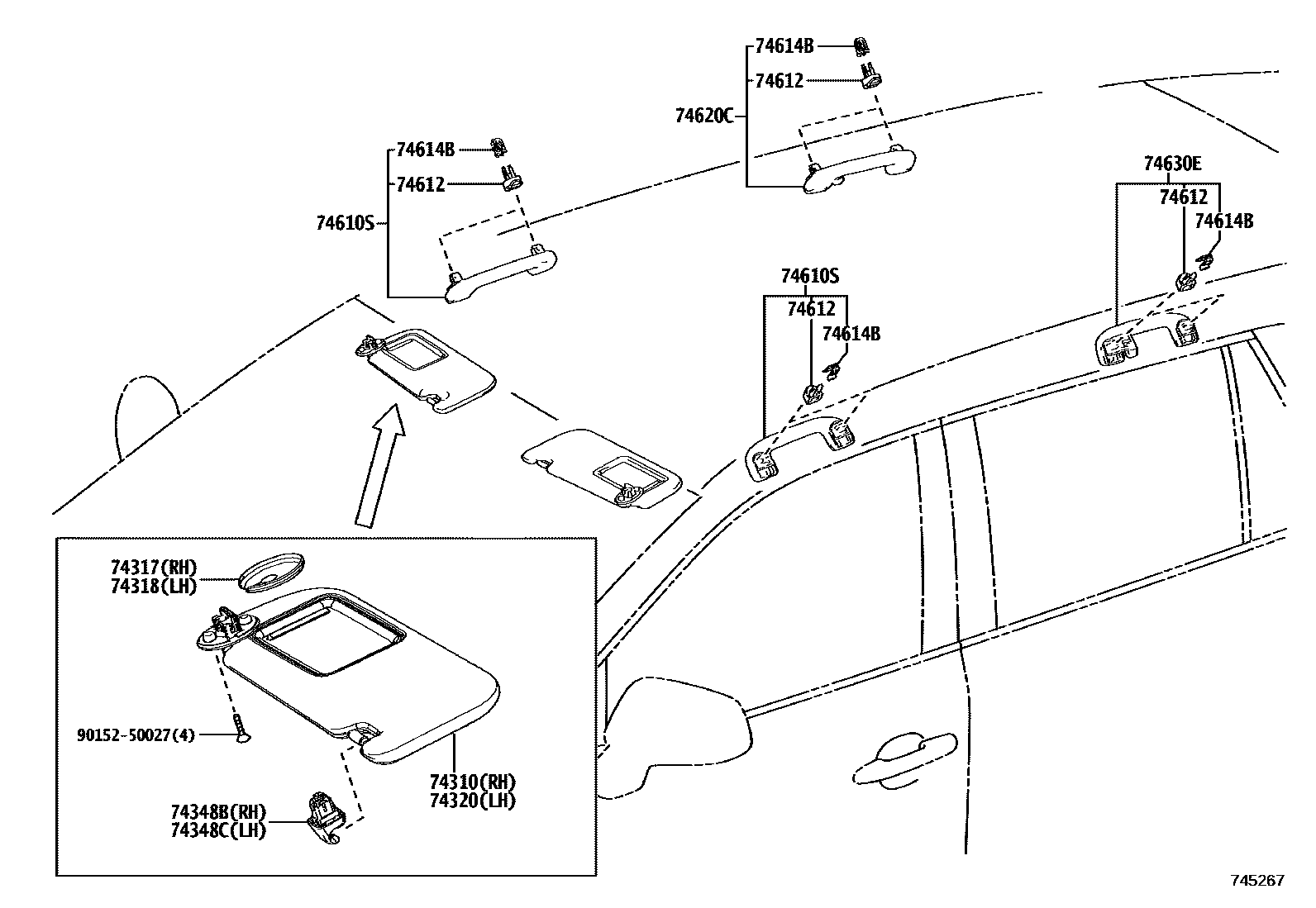

Toyota HARRIER/HYBRID(JPP) — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-48500-B2iAXUH80,MXUA80202009-202309

LT.GRAY,TRIM1#

main74310-48500-C3iAXUH80,MXUA80202009-202309

BLACK,TRIM2#,4#

74317COVER, VISOR BRACKET, RH

main74317-60020-B1iAXUH80,MXUA80202009-202309

LT.GRAY,TRIM1#

main74317-60020-C2iMXUA80..G202009-202309

BLACK,TRIM2#,4#

74318COVER, VISOR BRACKET, LH

main74317-60020-B1iAXUH80;MXUA80..S202009-202309

LT.GRAY,TRIM1#

main74317-60020-C2iAXUH80;MXUA80..S202009-202309

BLACK,TRIM2#,4#

74320VISOR ASSY, LH

main74320-48470-B2iAXUH80;MXUA80..S202009-202309

LT.GRAY,TRIM1#

main74320-48470-C3iAXUH80;MXUA80..S202009-202309

BLACK,TRIM2#,4#

74348BHOLDER, VISOR, RH

main74348-47010-B3iAXUH80,MXUA80202009-202309

LT.GRAY,TRIM1#

main74348-47010-C0iMXUA80..G202009-202309

BLACK,TRIM2#,4#

74348CHOLDER, VISOR, LH

main74348-47010-B3iMXUA80..G202009-202309

LT.GRAY,TRIM1#

main74348-47010-C0iAXUH80,MXUA80202009-202309

BLACK,TRIM2#,4#

74610SGRIP ASSY, ASSIST

main74610-12140-B1iAXUH80,MXUA80202009-202309

LT.GRAY,TRIM1#

main74610-12140-C0iAXUH80,MXUA80202009-202309

BLACK,TRIM2#,4#

74612COVER, ASSIST GRIP

main74612-47070-B1iAXUH80,MXUA80202009-202309

LT.GRAY,TRIM1#

main74612-47070-C2iMXUA80..G202009-202309

BLACK,TRIM2#,4#

74614BPLATE, ASSIST GRIP LOCK

main74614-12020iMXUA80..G¥90202009-202309

74620CGRIP ASSY, ASSIST, REAR RH

main74610-12170-B1iAXUH80,MXUA80202009-202309

LT.GRAY,TRIM1#

main74610-12170-C0iAXUH80,MXUA80202009-202309

BLACK,TRIM2#,4#

74630EGRIP ASSY, ASSIST, REAR LH

main74610-12180-B1iAXUH80,MXUA80202009-202309

LT.GRAY,TRIM1#

main74610-12180-C0iMXUA80..G202009-202309

BLACK,TRIM2#,4#

9015250027

main90152-50027¥110

12 parts on this diagram · 1 diagram in section
