Toyota HARRIER/HEV (CHINA) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0R080iAXUH85..M;MXUA80..S202111-202408

85160LINK ASSY, WINDSHIELD WIPER

main85150-0R080iAXUH85..M;MXUA80..S202111-202408

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012iAXUH85..M;MXUA80..S202111-202408

85211BARM, FRONT WIPER, RH

main85211-0R070iAXUH85..M;MXUA80..S202111-202408

85212ABLADE, FR WIPER, RH

main85212-0R090iAXUH85..M;MXUA80..S202111-202408

85214ARUBBER, WIPER, RH

main85214-0R060iAXUH85..M;MXUA80..S202111-202408

85214BRUBBER, WIPER, LH

main85214-0R071iAXUH85..M;MXUA80..S202111-202408

85221BARM, FRONT WIPER, LH

main85221-0R070iAXUH85..M;MXUA80..S202111-202408

85222ABLADE, FR WIPER, LH

main85222-0R080iAXUH85..M;MXUA80..S202111-202408

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iAXUH85..M;MXUA80..S¥200202111-202408

89941SENSOR, RAIN

main89941-08020iMXUA80..S202111-202408

89943COVER, RAIN SENSOR

main89943-42040iMXUA80..S¥540202111-202408

89944TAPE, RAIN SENSOR

main89944-42020iMXUA80..S¥170202111-202408

90119C0128

main90119-C0128

9014860091

main90148-60091¥0

9413060600

main94130-60600¥80

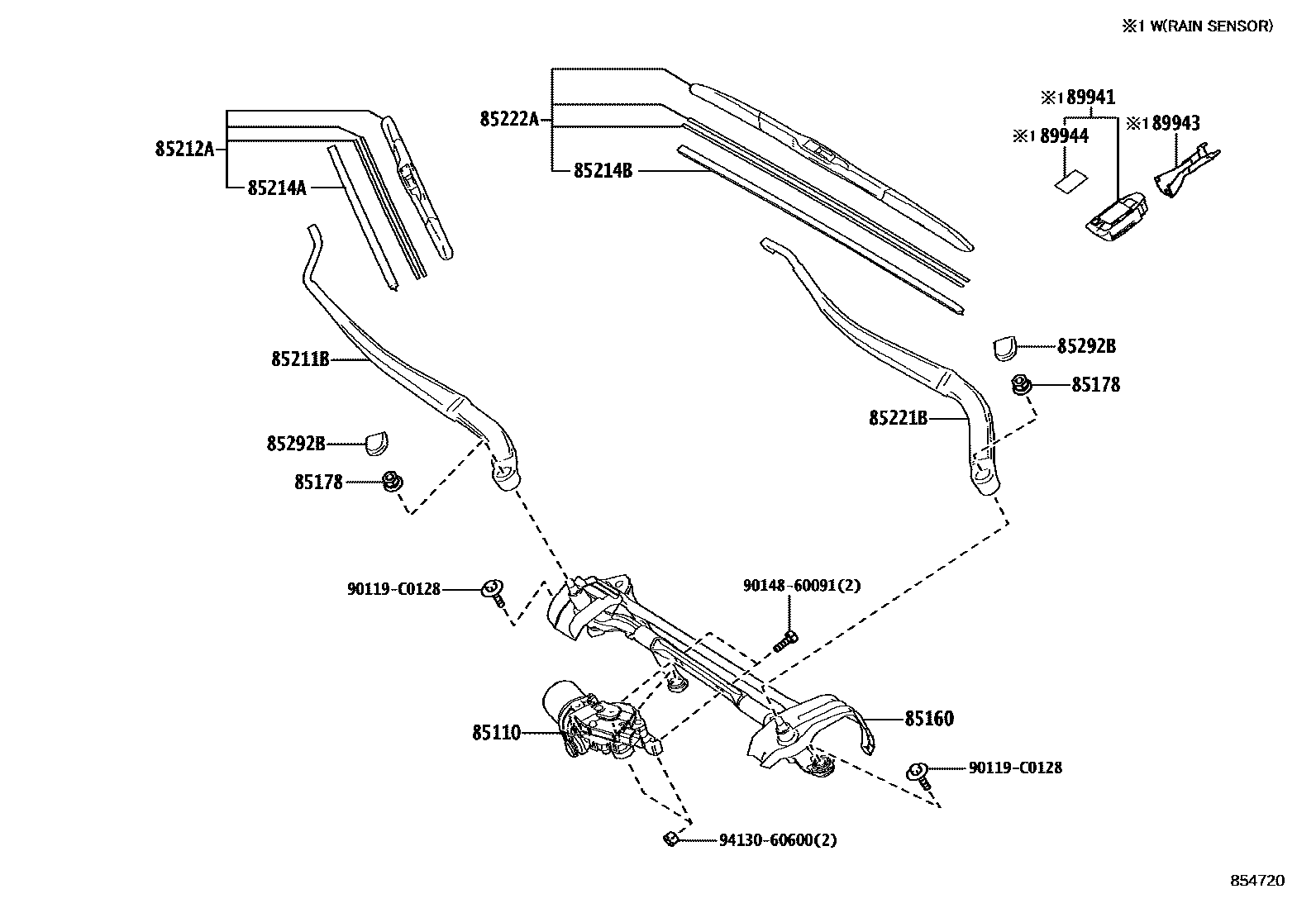

16 parts on this diagram · 1 diagram in section
