Toyota HARRIER/HEV (CHINA) — SWITCH & RELAY & COMPUTER

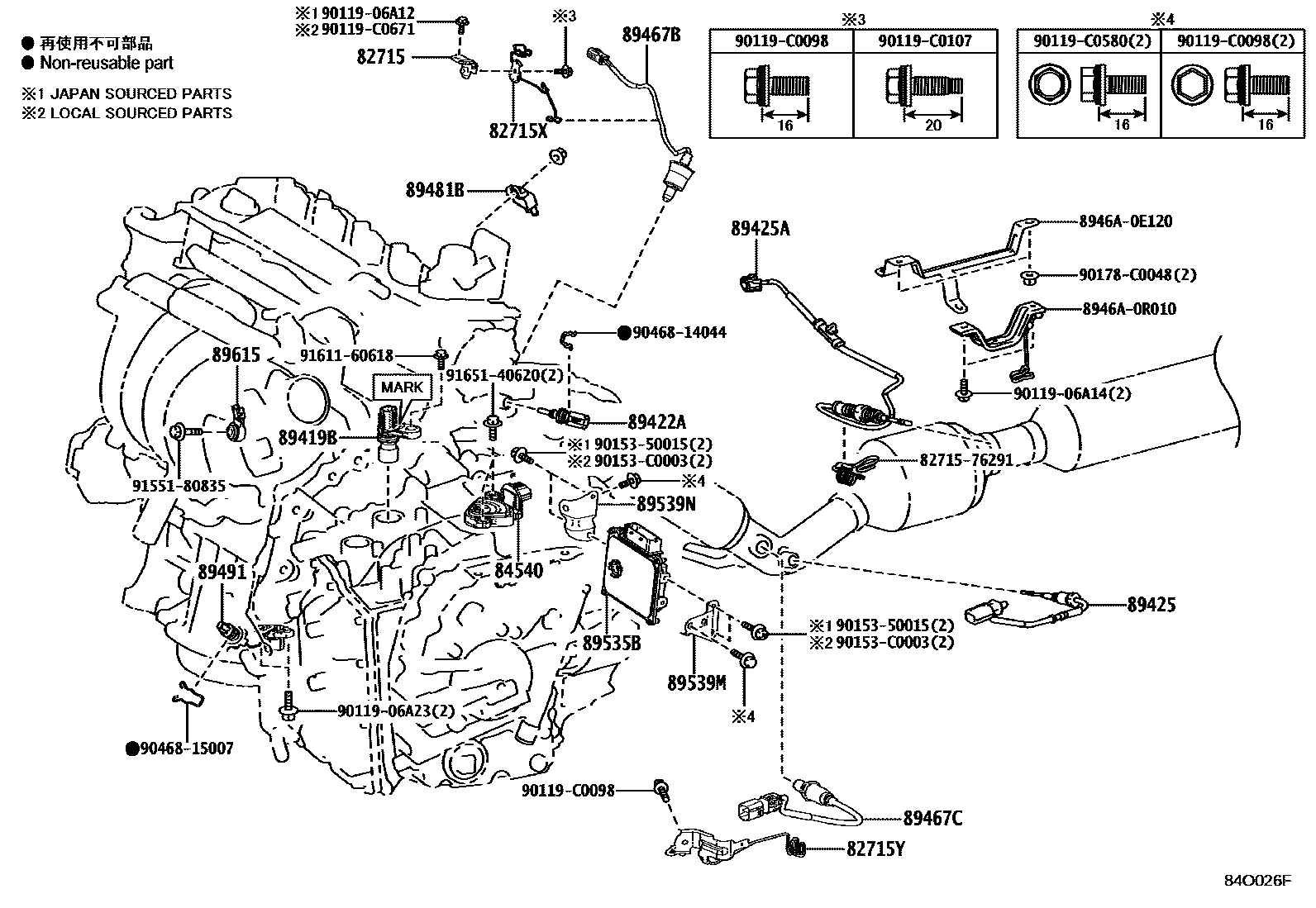

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1CONSOLE BOX 0009 1STEERING 0010 1SEAT 0011 1DOOR & ROOF 0012 1FLOOR & BACK DOOR 0013 1FLOOR & BACK DOOR 0014 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-F4640iMXUA80..S202111-202408

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-F4310iMXUA80..S202111-202408

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-0R810iAXUH8#,MXUA80202111-202304

main8946A-0R030iAXUH85..M;MXUA80..S202304-202408

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXUA80¥7,600202111-202304

main89451-42010iMXUA80..G,M,X¥5,900202304-202408

89419BSENSOR, SHIFT STROKE

main89419-12011iMXUA80¥4,100202111-202304

MARK=CS1

main89419-K2010iMXUA80..S¥4,100202111-202408

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXUH85..G,S;AXUH80,MXUA80..G,M,X¥2,410202111-202408

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-0E030iAXUH85..M;MXUA80..S202304-202408

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-0E040iAXUH85..M202304-202408

main89425-0R010iMXUA80..S202304-202408

89467BSENSOR, AIR FUEL RATIO

main89467-0R110iAXUH8#202111-202304

main89467-0R160iMXUA80..S202304-202408

main89467-0R190iAXUH85..M202304-202408

main89467-F4010iMXUA80202111-202304

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0R120iAXUH8#,MXUA80202111-202304

main89467-0R170iAXUH85..M;MXUA80..S202304-202408

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-0E010iMXUA80..S202304-202408

(L)

main89481-48010iMXUA80..S202304-202408

(J)

main89481-K0010iAXUH85..M202304-202408

89491SENSOR, ENGINE OIL LEVEL

main89491-06010iAXUH8#202111-202205

sub89491-06011

main89491-06011iMXUA80202202-202408

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-0E010iMXUA80202111-202304

*614

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-0E010iMXUA80202111-202208

main89539-0E010iMXUA80202208-202304

(L)

main89539-42080iMXUA80¥370202208-202304

(J)

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-0E020iMXUA80202208-202304

(L)

main89539-0E020iMXUA80202111-202208

main89539-42090iMXUA80¥330202208-202304

(J)

89615SENSOR, KNOCK CONTROL

main89615-0E010iAXUH85..M;MXUA80..S202111-202408

8271576291BRACKET,WIRING HARNESS CLAMP

main82715-76291

8946A0E120BRACKET, EXHAUST SENSOR CLAMP

main8946A-0E120

8946A0R010BRACKET, EXHAUST SENSOR CLAMP

main8946A-0R010

9011906A12

main90119-06A12¥60

9011906A14

main90119-06A14¥60

9011906A23

main90119-06A23¥60

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0580

main90119-C0580

90119C0671

main90119-C0671

9015350015

main90153-50015¥60

90153C0003

main90153-C0003

90178C0048

main90178-C0048

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9161160618

main91611-60618¥120

9165140620

main91651-40620¥70

34 parts on this diagram · 14 diagrams in section
