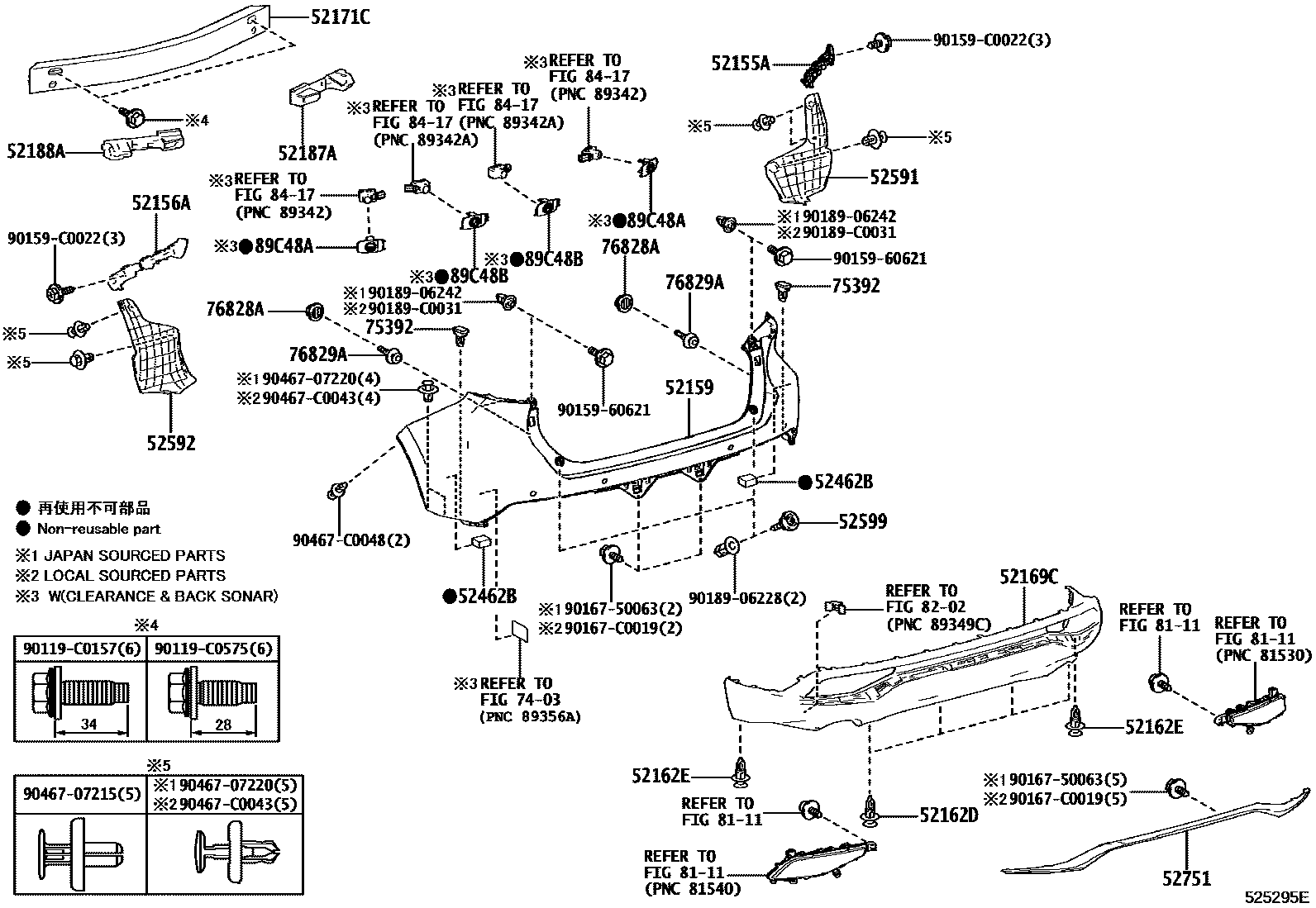

Toyota HARRIER/HEV (CHINA) — REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0E140iAXUH85..M;MXUA80..S202111-202408

main52155-0E140iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0E140iAXUH85..M;MXUA80..S202111-202408

main52156-0E140iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52159COVER, REAR BUMPER

main52159-0E928iMXUA80..X202111

PAINT REQ.

main52159-0E929iAXUH85..M;MXUA80..S202111-202408

PAINT REQ.

main52159-0E929iAXUH85..G,S;AXUH80,MXUA80..G,M202111

PAINT REQ.

52162DPIECE, REAR BUMPER

main52161-02040iAXUH85..M;MXUA80..S202111-202408

main52161-02040iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52162EPIECE, REAR BUMPER

main52161-02040iAXUH85..M;MXUA80..S202111-202408

main52161-02040iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52169CCOVER, REAR BUMPER, LOWER

main52169-0E180iAXUH85..M;MXUA80..S202111-202408

NO PAINT REQ.

main52169-0E180iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

NO PAINT REQ.

52171CREINFORCEMENT, REAR BUMPER

main52171-0E170iAXUH85..M;MXUA80..S202111-202408

main52171-0E170iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52187AREINFORCEMENT, REAR BUMPER ARM, RH

main52187-0E020iAXUH85..M;MXUA80..S202111-202408

main52187-0E020iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52188AREINFORCEMENT, REAR BUMPER ARM, LH

main52188-0E010iAXUH85..M;MXUA80..S202111-202408

main52188-0E010iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52462BPAD, REAR BUMPER

main52462-0E040iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

main52462-0E040iAXUH85..M;MXUA80..S202111-202408

52591SEAL, REAR BUMPER SIDE, RH

main52591-0E140iAXUH85..M;MXUA80..S202111-202408

main52591-0E140iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52592SEAL, REAR BUMPER SIDE, LH

main52592-0E130iAXUH85..M;MXUA80..S202111-202408

main52592-0E130iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iAXUH85..M;MXUA80..S¥130202111-202408

main52599-68030iAXUH85..G,S;AXUH80,MXUA80..G,M,X¥130202111

52751MOULDING, REAR BUMPER

main52751-0E080iAXUH85..M;MXUA80..S202111-202408

main52751-0E080iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

7403

75392RETAINER, OUTSIDE MOULDING

main75392-0R030iAXUH85..M;MXUA80..S202111-202408

main75392-0R030iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

76828ARETAINER, BACK DOOR GARNISH, NO.3

main76828-60030iAXUH85..M;MXUA80..S¥70202111-202408

main76828-60030iAXUH85..G,S;AXUH80,MXUA80..G,M,X¥70202111

76829ARETAINER, BACK DOOR GARNISH

main76829-60020iAXUH85..M;MXUA80..S¥50202111-202408

main76829-60020iAXUH85..G,S;AXUH80,MXUA80..G,M,X¥50202111

8111

8202

8417

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-0E330-A0iAXUH8#,MXUA80..G,M,S202111-202206

PLATINUM WHITE PEARL MC.,089,RH

sub89348-0E650

main89348-0E330-C1iAXUH8#,MXUA80..G,M,S202111-202206

BLACK MC.,209,RH

sub89348-0E650

main89348-0E330-E0iAXUH8#,MXUA80..G,M,S202111-202206

AVANT-GARDE BRONZE ME.,4V8,RH

sub89348-0E650

main89348-0E330-G0iAXUH8#,MXUA80..G,M,S202111-202206

OXIDE BRONZE ME.,6X1,RH

sub89348-0E650

main89348-0E330-J0iAXUH8#,MXUA80..G,M,S202111-202206

DK. BLUE MC.,8X8,RH

sub89348-0E650

main89348-0E340-A0iAXUH8#,MXUA80..G,M,S202111-202207

PLATINUM WHITE PEARL MC.,089,LH

sub89348-0E660

main89348-0E340-C1iAXUH8#,MXUA80..G,M,S202111-202207

BLACK MC.,209,LH

sub89348-0E660

main89348-0E340-E0iAXUH8#,MXUA80..G,M,S202111-202207

AVANT-GARDE BRONZE ME.,4V8,LH

sub89348-0E660

main89348-0E340-G0iAXUH8#,MXUA80..G,M,S202111-202207

OXIDE BRONZE ME.,6X1,LH

sub89348-0E660

main89348-0E340-J0iAXUH8#,MXUA80..G,M,S202111-202207

DK. BLUE MC.,8X8,LH

sub89348-0E660

main89348-0E650-A0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

PLATINUM WHITE PEARL MC.,089,RH

main89348-0E650-A0iAXUH85..M;MXUA80..S202207-202408

PLATINUM WHITE PEARL MC.,089,RH

main89348-0E650-C0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

BLACK MC.,209,RH

main89348-0E650-C0iAXUH85..M;MXUA80..S202207-202408

BLACK MC.,209,RH

main89348-0E650-E0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

AVANT-GARDE BRONZE ME.,4V8,RH

main89348-0E650-E0iAXUH85..M;MXUA80..S202207-202408

AVANT-GARDE BRONZE ME.,4V8,RH

main89348-0E650-G0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

OXIDE BRONZE ME.,6X1,RH

main89348-0E650-G0iAXUH85..M;MXUA80..S202207-202408

OXIDE BRONZE ME.,6X1,RH

main89348-0E650-J0iAXUH85..M;MXUA80..S202207-202408

DK. BLUE MC.,8X8,RH

main89348-0E650-J0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

DK. BLUE MC.,8X8,RH

main89348-0E660-A0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

PLATINUM WHITE PEARL MC.,089,LH

main89348-0E660-A0iAXUH85..M;MXUA80..S202207-202408

PLATINUM WHITE PEARL MC.,089,LH

main89348-0E660-C0iAXUH85..M;MXUA80..S202207-202408

BLACK MC.,209,LH

main89348-0E660-C0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

BLACK MC.,209,LH

main89348-0E660-E0iAXUH85..M;MXUA80..S202207-202408

AVANT-GARDE BRONZE ME.,4V8,LH

main89348-0E660-E0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

AVANT-GARDE BRONZE ME.,4V8,LH

main89348-0E660-G0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

OXIDE BRONZE ME.,6X1,LH

main89348-0E660-G0iAXUH85..M;MXUA80..S202207-202408

OXIDE BRONZE ME.,6X1,LH

main89348-0E660-J0iAXUH85..M;MXUA80..S202207-202408

DK. BLUE MC.,8X8,LH

main89348-0E660-J0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

DK. BLUE MC.,8X8,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-0E320-A0iAXUH8#,MXUA80..G,M,S202111-202206

PLATINUM WHITE PEARL MC.,089

sub89348-0E640

main89348-0E320-C1iAXUH8#,MXUA80..G,M,S202111-202206

BLACK MC.,209

sub89348-0E640

main89348-0E320-E0iAXUH8#,MXUA80..G,M,S202111-202206

AVANT-GARDE BRONZE ME.,4V8

sub89348-0E640

main89348-0E320-G0iAXUH8#,MXUA80..G,M,S202111-202206

OXIDE BRONZE ME.,6X1

sub89348-0E640

main89348-0E320-J0iAXUH8#,MXUA80..G,M,S202111-202206

DK. BLUE MC.,8X8

sub89348-0E640

main89348-0E640-A0iAXUH85..M;MXUA80..S202207-202408

PLATINUM WHITE PEARL MC.,089

main89348-0E640-A0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

PLATINUM WHITE PEARL MC.,089

main89348-0E640-C0iAXUH85..M;MXUA80..S202207-202408

BLACK MC.,209

main89348-0E640-C0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

BLACK MC.,209

main89348-0E640-E0iAXUH85..M;MXUA80..S202207-202408

AVANT-GARDE BRONZE ME.,4V8

main89348-0E640-E0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

AVANT-GARDE BRONZE ME.,4V8

main89348-0E640-G0iAXUH85..M;MXUA80..S202207-202408

OXIDE BRONZE ME.,6X1

main89348-0E640-G0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

OXIDE BRONZE ME.,6X1

main89348-0E640-J0iAXUH85..G,S;AXUH80,MXUA80..G,M202207

DK. BLUE MC.,8X8

main89348-0E640-J0iAXUH85..M;MXUA80..S202207-202408

DK. BLUE MC.,8X8

90119C0157

main90119-C0157

90119C0575

main90119-C0575

9015960621

main90159-60621¥60

90159C0022

main90159-C0022

9016750063

main90167-50063¥60

90167C0019

main90167-C0019

9018906228

main90189-06228¥70

9018906242

main90189-06242¥70

90189C0031

main90189-C0031

9046707215

main90467-07215¥80

9046707220

main90467-07220¥80

90467C0043

main90467-C0043

90467C0048

main90467-C0048

36 parts on this diagram · 1 diagram in section
