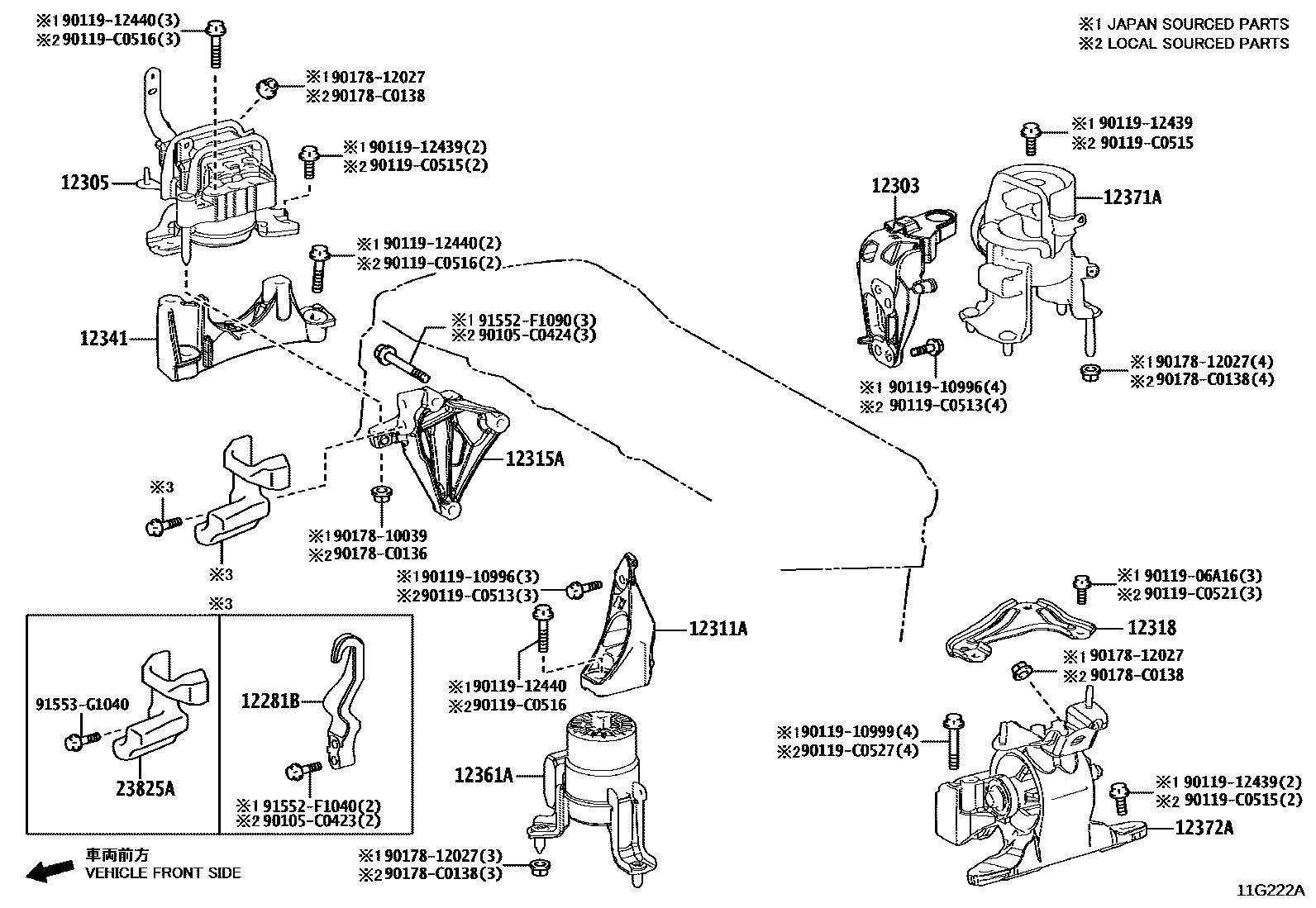

Toyota HARRIER/HEV (CHINA) — MOUNTING

0001 1 0002 1

12281BHANGER, ENGINE, NO.1

main12281-F2010iA25FFXS..AXUH85..M202111-202408

main12281-F2010iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-F0200iA25FFXS..AXUH85..M202111-202408

main12303-F0200iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

main12303-F2060iM20DFKS..MXUA80..S202111-202408

main12303-F2060iM20DFKS..MXUA80..G,M,X202111

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-F0120iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

main12305-F0120iA25FFXS..AXUH85..M202111-202408

main12305-F2060iM20DFKS..MXUA80..G,M,X202111

main12305-F2060iM20DFKS..MXUA80..S202111-202408

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-F0090iA25FFXS..AXUH85..M202111-202408

main12311-F0090iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

main12311-F2010iM20DFKS..MXUA80..S202111-202408

main12311-F2010iM20DFKS..MXUA80..G,M,X202111

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-F0030iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

main12315-F0030iA25FFXS..AXUH85..M202111-202408

main12315-F2050iM20DFKS..MXUA80..G,M,X202111

main12315-F2050iM20DFKS..MXUA80..S202111-202408

12318STAY, ENGINE MOUNTING, LH

main12318-F0090iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

main12318-F0090iA25FFXS..AXUH85..M202111-202408

main12318-F2060iM20DFKS..MXUA80..S202111-202408

main12318-F2060iM20DFKS..MXUA80..G,M,X202111

12341SPACER, ENGINE MOUNTING

main12341-F0050iA25FFXS..AXUH85..M202111-202408

main12341-F0050iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-F2020iM20DFKS..MXUA80..S202111-202408

main12361-F2020iM20DFKS..MXUA80..G,M,X202111

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-F0120iA25FFXS..AXUH85..M202111-202408

main12361-F0120iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111-202409

main12361-F0121iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202409

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-F0220iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

main12371-F0220iA25FFXS..AXUH85..M202111-202408

main12371-F2020iM20DFKS..MXUA80..G,M,X202111

main12371-F2020iM20DFKS..MXUA80..S202111-202408

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-F0060iA25FFXS..AXUH85..M202111-202408

main12306-F0060iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

main12372-F2090iM20DFKS..MXUA80..S202111-202408

main12372-F2090iM20DFKS..MXUA80..G,M,X202111

23825AGUARD, FUEL DELIVERY

main23825-24010iM20DFKS..MXUA80..G,M,X¥2,900202205

(J)

main23825-24010iM20DFKS..MXUA80¥2,900202111-202205

main23825-24010iM20DFKS..MXUA80..S¥2,900202205-202408

(J)

main23825-25010iA25FFXS..AXUH85..M¥3,590202111-202408

(J)

main23825-25010iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S¥3,590202111

(J)

main23825-F0010iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

(L)

main23825-F0010iA25FFXS..AXUH85..M202111-202408

(L)

main23825-F2030iM20DFKS..MXUA80..G,M,X202205

(L)

main23825-F2030iM20DFKS..MXUA80..S202205-202408

(L)

90105C0423

main90105-C0423

90105C0424

main90105-C0424

9011906A16

main90119-06A16¥60

9011910996

main90119-10996¥120

9011910999

main90119-10999¥190

9011912439

main90119-12439¥190

9011912440

main90119-12440¥240

90119C0513

main90119-C0513

90119C0515

main90119-C0515

90119C0516

main90119-C0516

90119C0521

main90119-C0521

90119C0527

main90119-C0527

9017810039

main90178-10039¥100

9017812027

main90178-12027¥100

90178C0136

main90178-C0136

90178C0138

main90178-C0138

91552F1040

main91552-F1040¥120

91552F1090

main91552-F1090¥190

91553G1040

main91553-G1040¥290

31 parts on this diagram · 2 diagrams in section
