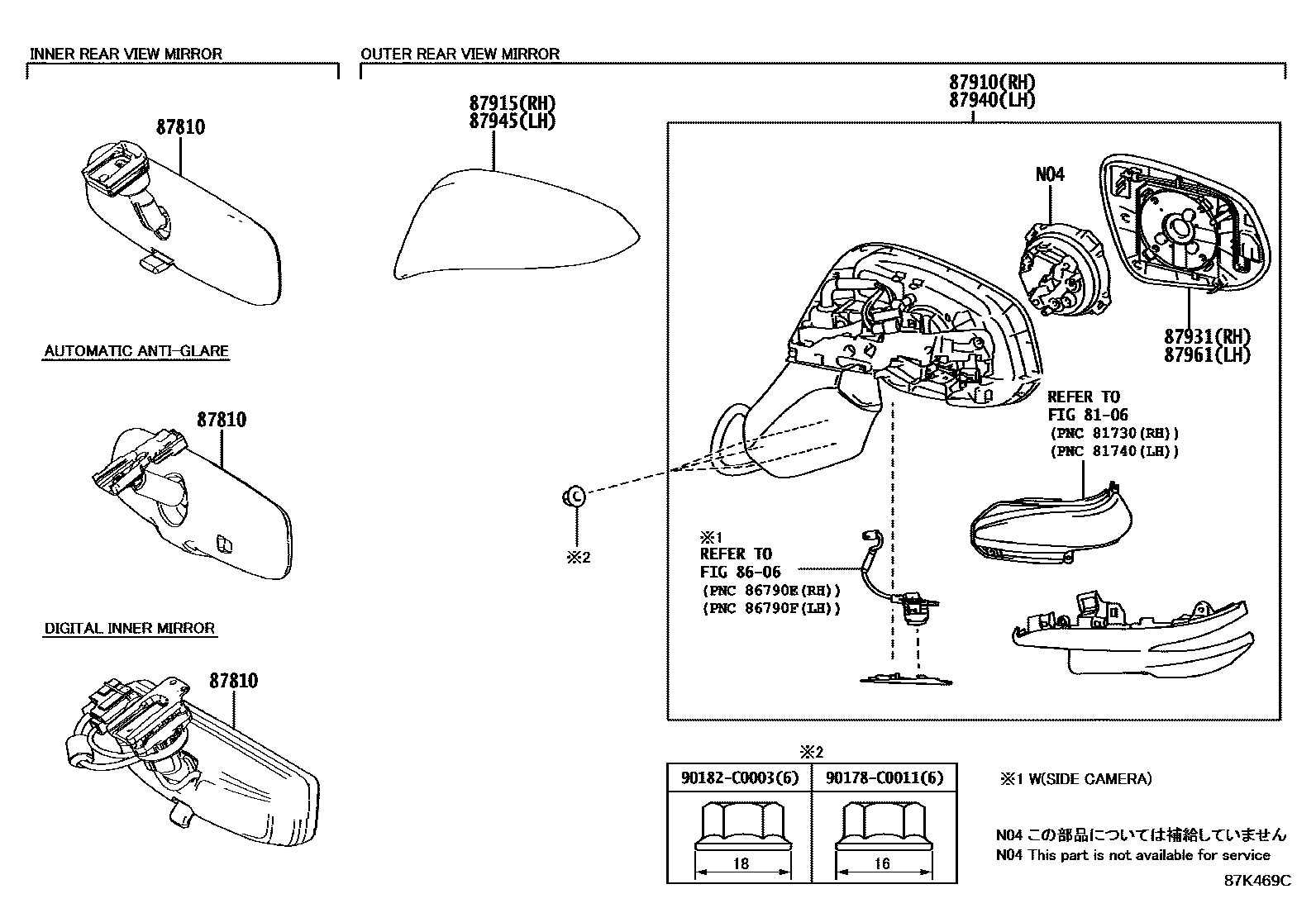

Toyota HARRIER/HEV (CHINA) — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
90178C0011
main90178-C0011
90182C0003
main90182-C0003
11 parts on this diagram · 1 diagram in section
