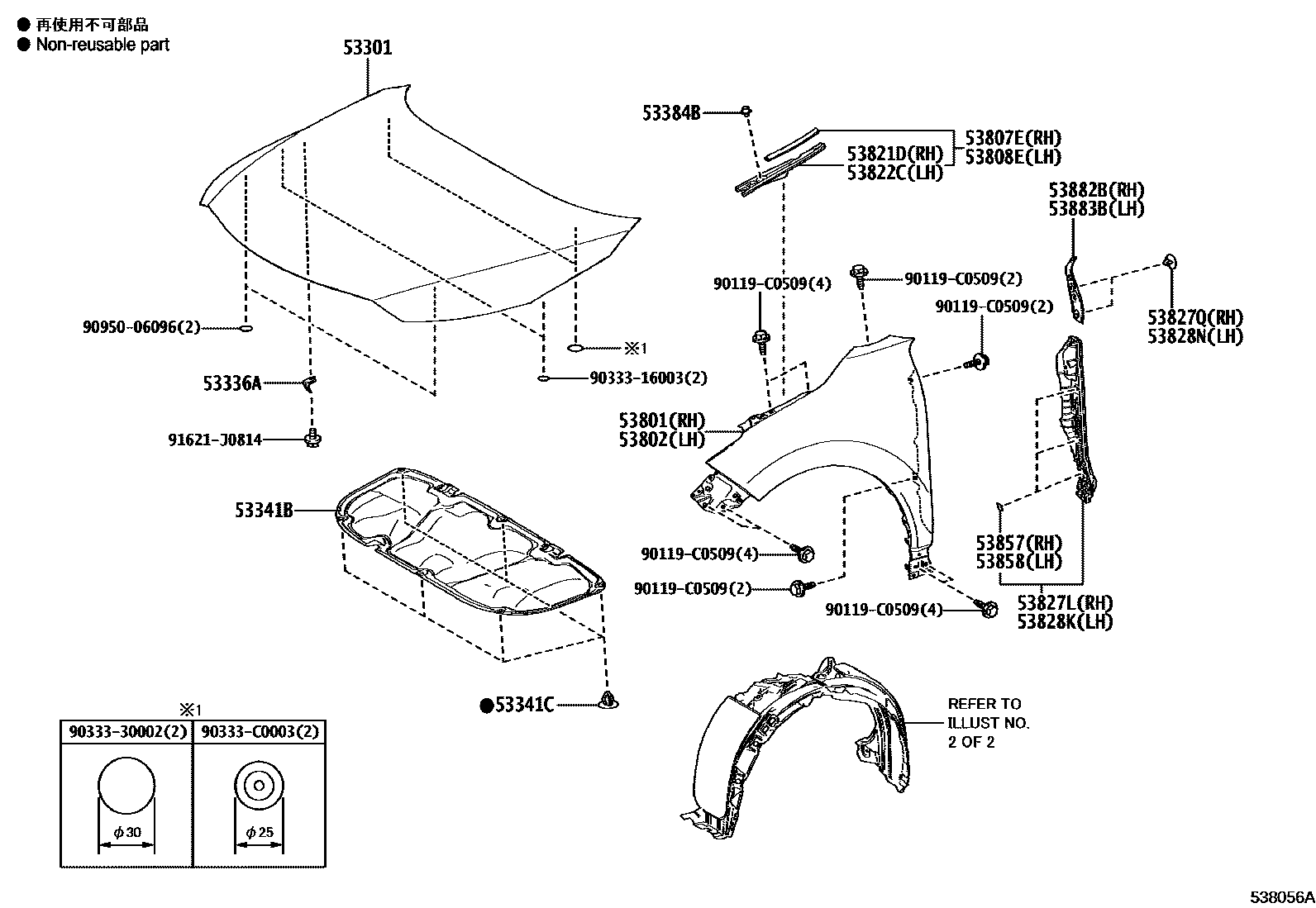

Toyota HARRIER/HEV (CHINA) — HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0E240iAXUH8#,MXUA80202111-202207

sub53301-0E241

main53301-0E241iAXUH85..M;MXUA80..S202208-202408

main53301-0E241iAXUH85..G,S;AXUH80,MXUA80..G,M,X202208

53336ABRACKET, HOOD STAY

main53336-0R020iAXUH85..M;MXUA80..S202111-202408

main53336-0R020iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53341BINSULATOR, HOOD

main53341-0E150iAXUH85..M;MXUA80..S202111-202408

main53341-0E150iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53341CCLIP(FOR HOOD INSULATOR)

main90467-C0025iAXUH85..M;MXUA80..S202111-202408

main90467-C0025iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53384BCUSHION, HOOD, CENTER

main53384-0E110iAXUH85..M;MXUA80..S202111-202408

main53384-0E110iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53801FENDER SUB-ASSY, FRONT RH

main53801-0E200iAXUH85..M;MXUA80..S202111-202408

main53801-0E200iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53802FENDER SUB-ASSY, FRONT LH

main53802-0E150iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

main53802-0E150iAXUH85..M;MXUA80..S202111-202408

53807ESEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-0E130iAXUH85..M;MXUA80..S202111-202408

main53807-0E130iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53808ESEAL SUB-ASSY, FENDER APRON MUDGUARD, LH

main53808-0E130iAXUH85..M;MXUA80..S202111-202408

main53808-0E130iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53821DPROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-0E120iAXUH85..M;MXUA80..S202111-202408

main53821-0E120iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53822CPROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-0E040iAXUH85..M;MXUA80..S202111-202408

main53822-0E040iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0E080iAXUH85..M;MXUA80..S202111-202408

main53827-0E080iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-C0038iAXUH85..M;MXUA80..S202111-202408

main90467-C0038iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0E080iAXUH85..M;MXUA80..S202111-202408

main53828-0E080iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-C0038iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

main90467-C0038iAXUH85..M;MXUA80..S202111-202408

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAXUH85..M;MXUA80..S¥100202111-202408

main53857-12010iAXUH85..G,S;AXUH80,MXUA80..G,M,X¥100202111

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAXUH85..M;MXUA80..S¥100202111-202408

main53857-12010iAXUH85..G,S;AXUH80,MXUA80..G,M,X¥100202111

53882BSEAL, FRONT FENDER, RH

main53882-0E050iAXUH85..M;MXUA80..S202111-202408

main53882-0E050iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

53883BSEAL, FRONT FENDER, LH

main53883-0E140iAXUH85..M;MXUA80..S202111-202408

main53883-0E140iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

90119C0509

main90119-C0509

9033316003

main90333-16003¥80

9033330002

main90333-30002¥70

90333C0003

main90333-C0003

9095006096

main90950-06096¥100

91621J0814

main91621-J0814¥60

25 parts on this diagram · 2 diagrams in section
